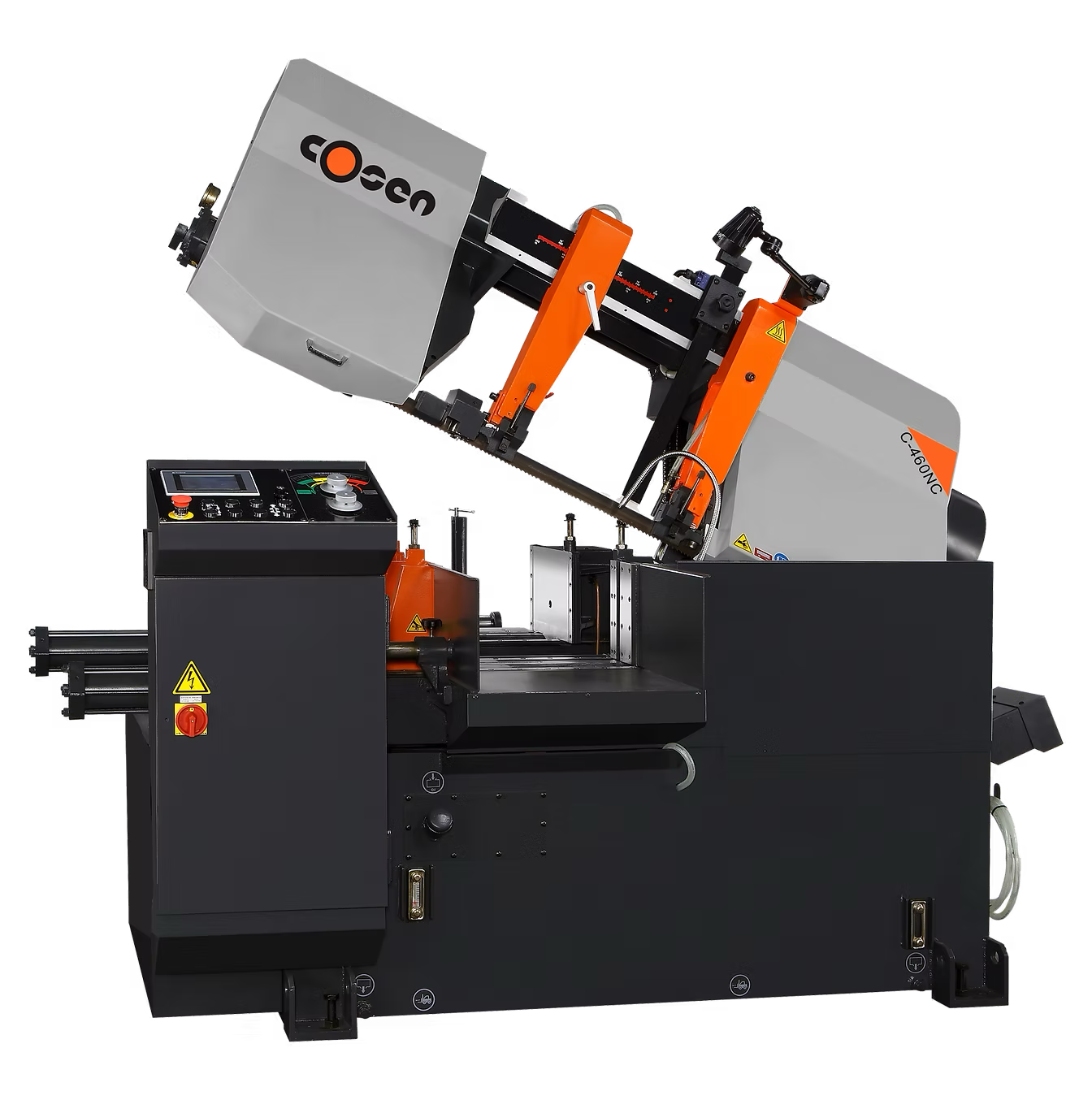

Smart NC-100 (SNC-100) technology provides most of the benefits of NC controlled saws at a mere fraction of the cost. SNC-100 controls are programmable up to 100 different jobs including quantity and length of cut. The controls automatically compensate for Kerf loss after data input and requires no manual calculation of number of times to index. Rugged, dependable, and advanced technology, are all words that describe Cosen's C-460NC production machine, making it the perfect saw for mass production settings.
- Structure: Hydraulic cylinder support with ball joint. Precision feed pressure and feed rate valve system for optimal cutting performance. Adjustable cast iron guide arm
- Mechanics: Gearbox designed to accept high lateral pressure (No thermal distortion). Motor driven blade brush
- Blade: Inverter blade drive system. Hydraulic blade tensioning system. Carbide blade guides and bearings. Cosen's Save-A-Blade feature
- Coolant: Adjustable flood coolant system. Additional coolant hose for work-bed and auger cleanup
- Vising: Cast iron hydraulic vise with split jaw to help reduce burr
- Interface: 5.7" HMI touchscreen system that allows for controlled multiple indexing of material up to 999" in length
Quick Ship Items | No, but I will Ship Soon |
Blade Speed (FPM) | 50-328 |
Blade Size (LxWxT) | 15'4"x1.5"x.050" |
Blade Motor (HP) | 10 |
Coolant Motor (HP) | 1/4 |
Coolant Tank Capacity (Gal.) | 21 |
Hydraulic Tank Capacity (Gal.) | 10.6 |
Workbed Height (In.) | 33.9 |
Weight (Lbs.) | 5,306 |
Floorspace (LxWxH) | 98.4"x104.3"x63" |
Round Capacity (0 Deg.) | 18" |
Rectangular Capacity (0 Deg.) | 18"x18" |
