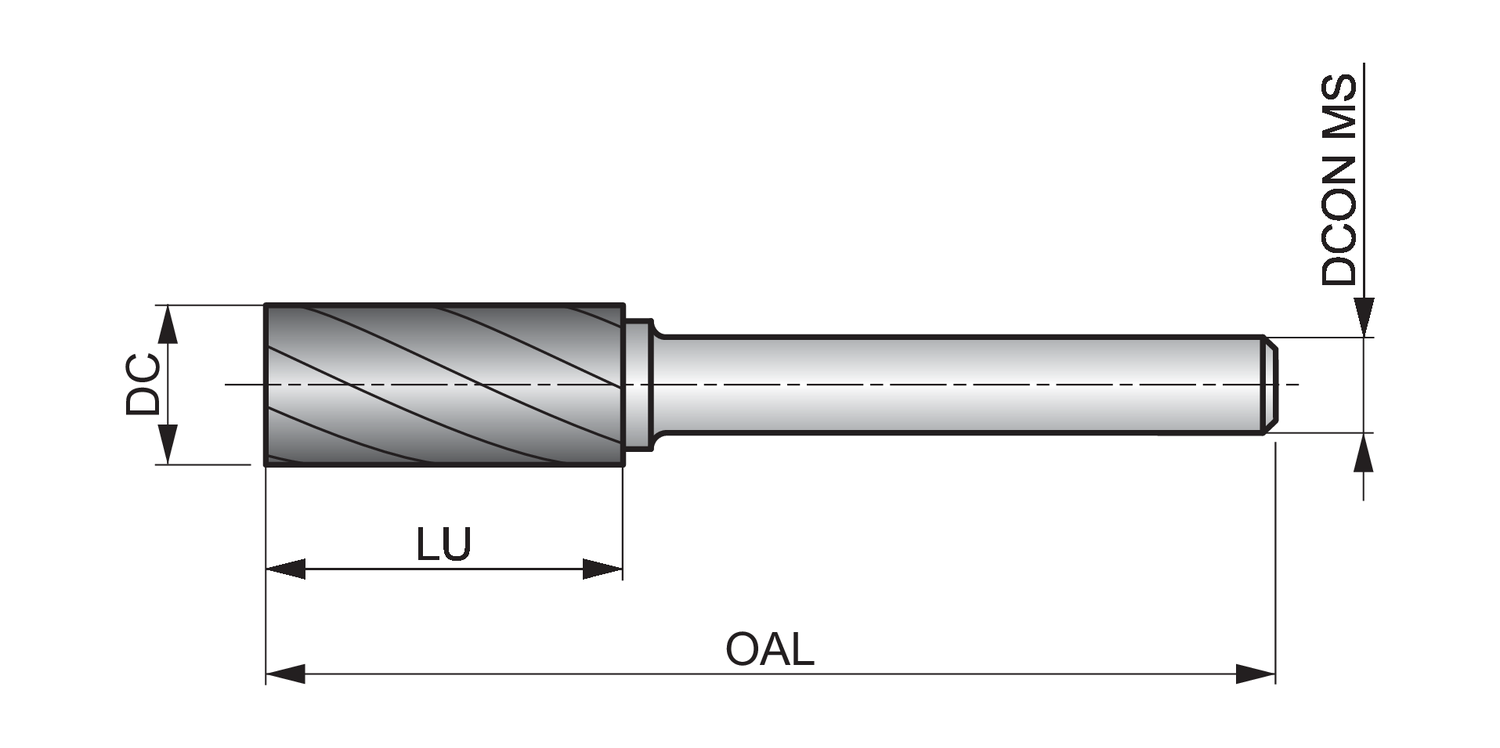

Cylinder burr with end cut (B shape), diameter 1/4" with 5/8" length of cut, 2" overall length and 1/4" shank, solid carbide with bright finish, FM single cut flute style with wide speced edges for machining surfaces and right-angled corners in wrought, cast aluminium and glass fibre reinforced polymers
- Product Name ISO: SB-10FM
- Ordering Code ANSI: SB-10FM
- EDP Number: 7466241
- Coating: Bright
- Material Code (BMC): HM
- Material Application Priority Usage: N - Non-ferrous metals (metals including alloys without an appreciable amount of iron)
| Product Measurement Standard | Inch |
| Cutting Diameter (Mm.) | 6.35 |
| Cutting Diameter (In.) | 0.25 |
| Cutting Diameter Fractional (In.) | 1/4 |
| Connection Diameter (Mm.) | 6.35 |
| Overall Length (Mm.) | 50.8 |
| Connection Diameter (In.) | 0.25 |
| Overall Length (In.) | 2 |
| Material Code | HM |
| Coating | Bright |
| Shank | Cylindrical Shank |
| Burr Shape | B - Cylinder Shape with Endcut |
| Burr Type | Aluminium Cut Geometry |
