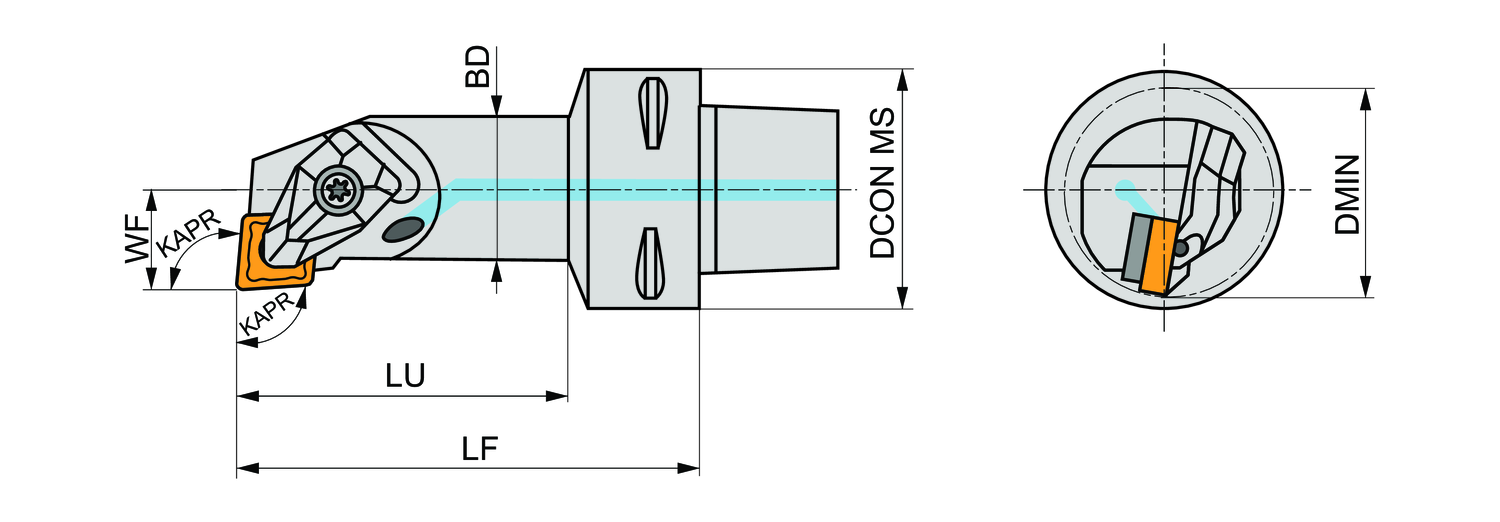

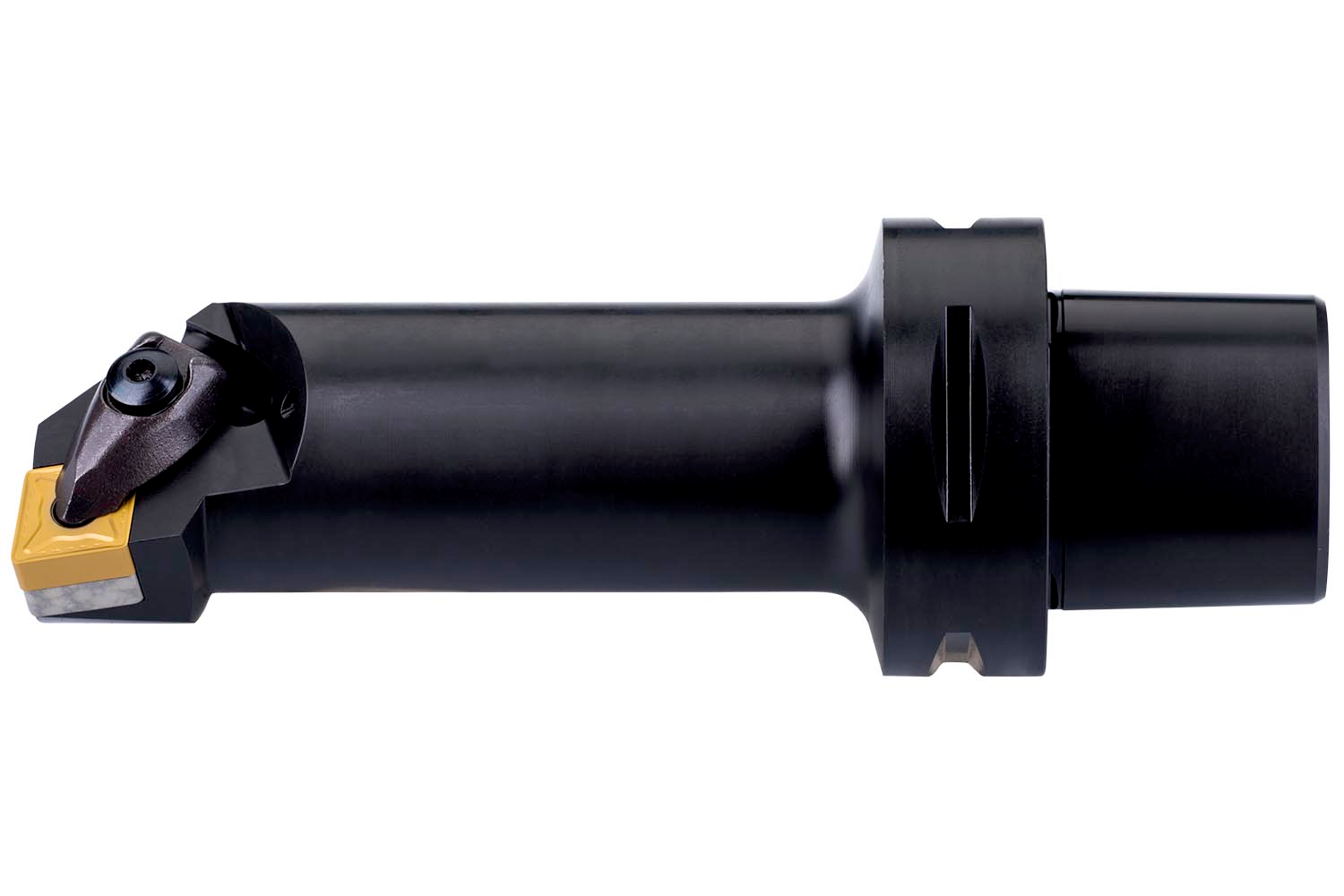

Double clamp boring bar for holding a 80° rhombus negative insert with an inscribed circle diameter of 15.575mm, 6.35mm thick (ISO designation CN.. 1606.. ), right hand 95° side and end cutting with off-set shank according to ISO 26623 (Polygon Shank Coupling) size C6, with 27mm funtional width and 140mm protruding length for taper boring and longitudinal boring with and without shoulder

• Product Name ISO: C6-DCLNR-27140-16
• Ordering Code ANSI: C6-DCLNR-27140-16
• EDP Number: 7809867
• Material Application Priority Usage: H - Hardened materials (any engineering metal with a hardness > 45HRC), K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), M - Stainless steel (corrosion resistant steels with = 11% chromium content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC), S - High-temperature alloys (superalloys with high temperature stength and corrosion resistant surpassing that of stainless steel)
