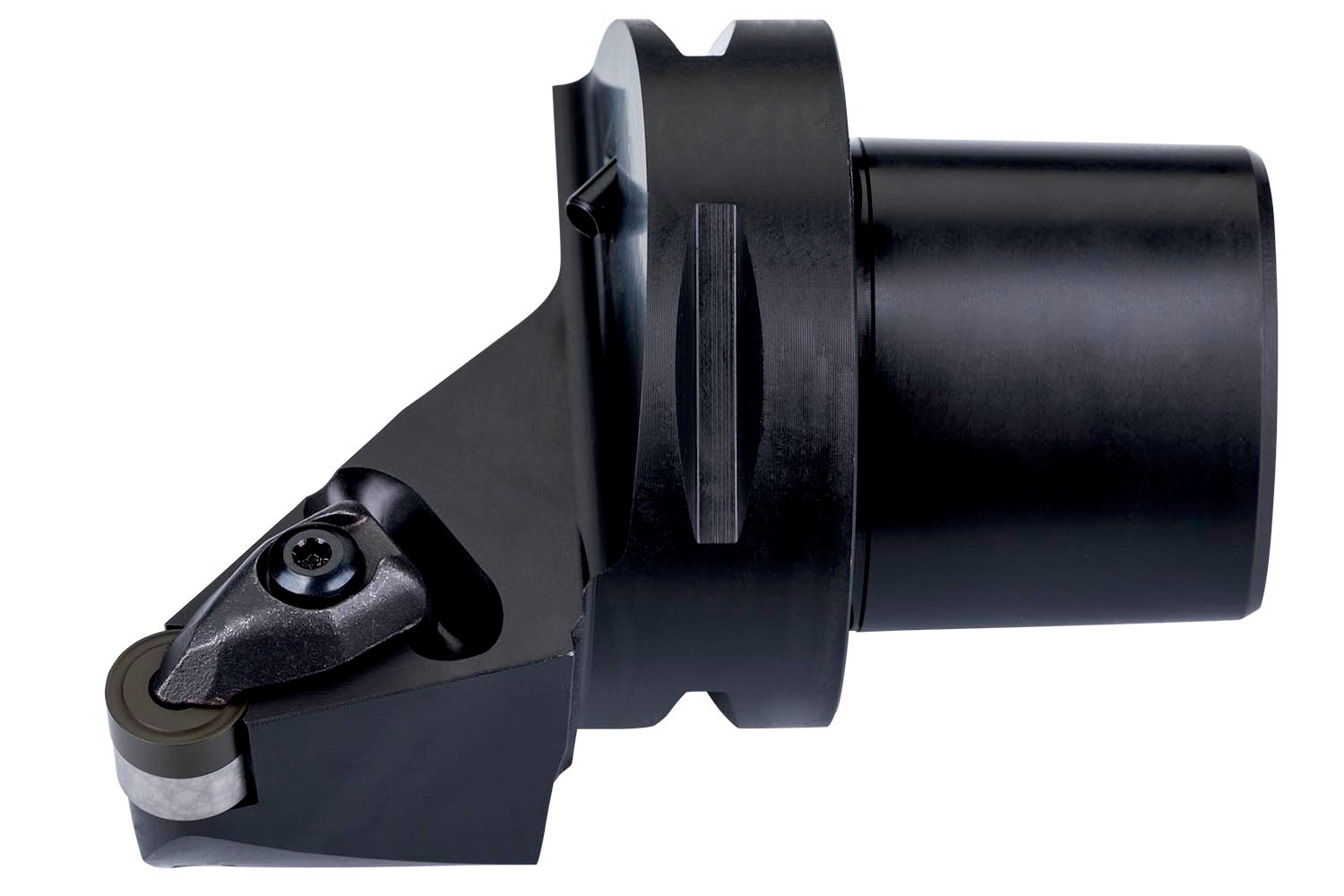

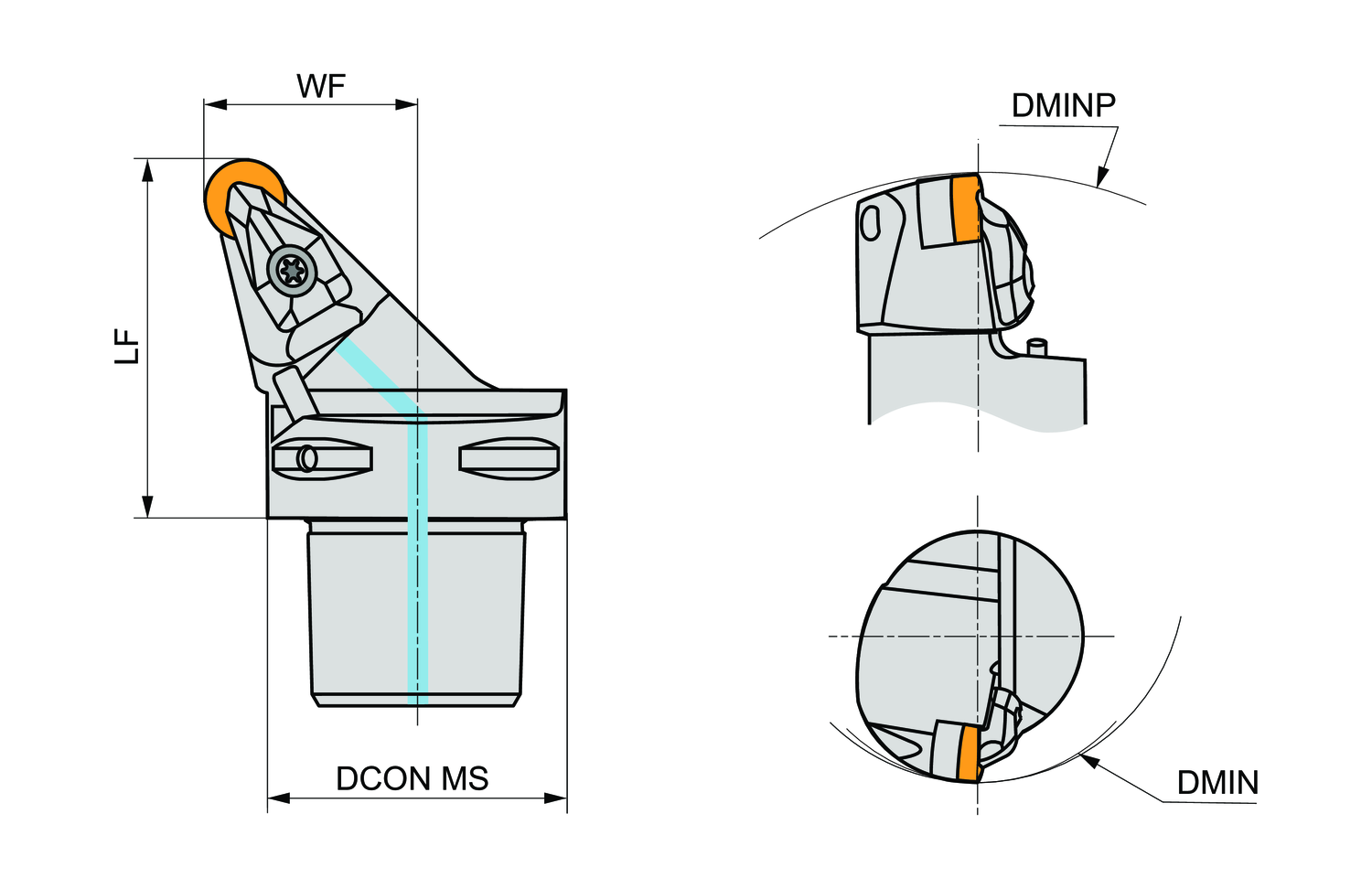

Double clamp turning tool for holding a round negative insert with a diameter of 12.7mm, 4.76mm thick (ISO designation RN.. 120400 ), right hand side cutting with off-set shank according to ISO 26623 (Polygon Shank Coupling) size C6, with 45mm funtional width and 65mm protruding length for taper turning, face turning without shoulder and longitudinal turning without shoulder

• Product Name ISO: C6-DRSNR-45065-12
• Ordering Code ANSI: C6-DRSNR-45065-12
• EDP Number: 7809794
• Material Application Priority Usage: H - Hardened materials (any engineering metal with a hardness > 45HRC), K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), M - Stainless steel (corrosion resistant steels with = 11% chromium content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
