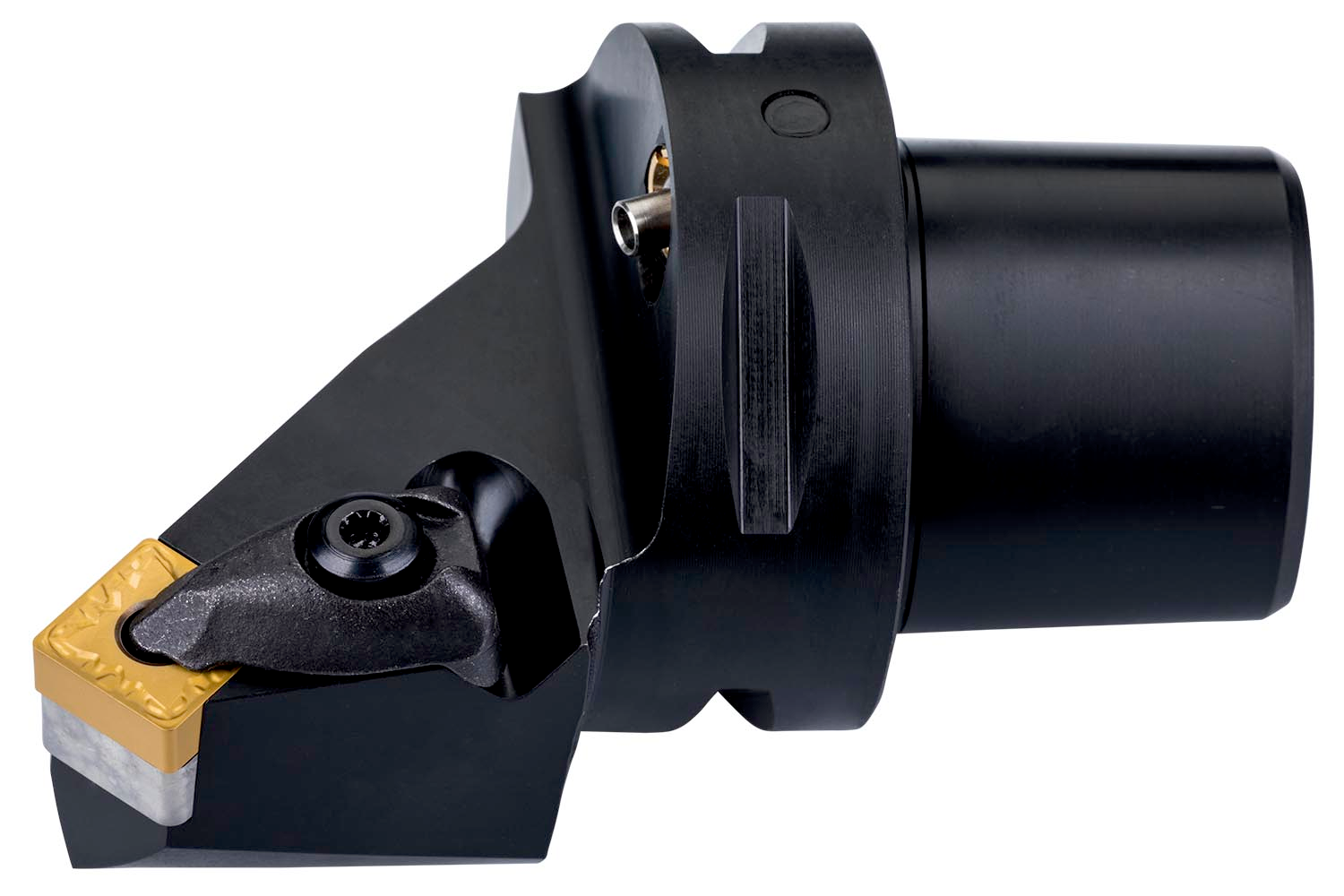

Double clamp turning tool for holding a square negative insert with an inscribed circle diameter of 12.7mm, 4.76mm thick (ISO designation SN.. 1204.. ), right hand 45° side cutting with off-set shank according to ISO 26623 (Polygon Shank Coupling) size C5, with 35mm funtional width and 52mm protruding length for chamfering, taper turning, single and multi-directional copy turning, face turning without shoulder and longitudinal turning without shoulder

• Product Name ISO: C5-DSSNR-35052-12
• Ordering Code ANSI: C5-DSSNR-35052-12
• EDP Number: 7809802
• Material Application Priority Usage: H - Hardened materials (any engineering metal with a hardness > 45HRC), K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), M - Stainless steel (corrosion resistant steels with = 11% chromium content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC), S - High-temperature alloys (superalloys with high temperature stength and corrosion resistant surpassing that of stainless steel)
