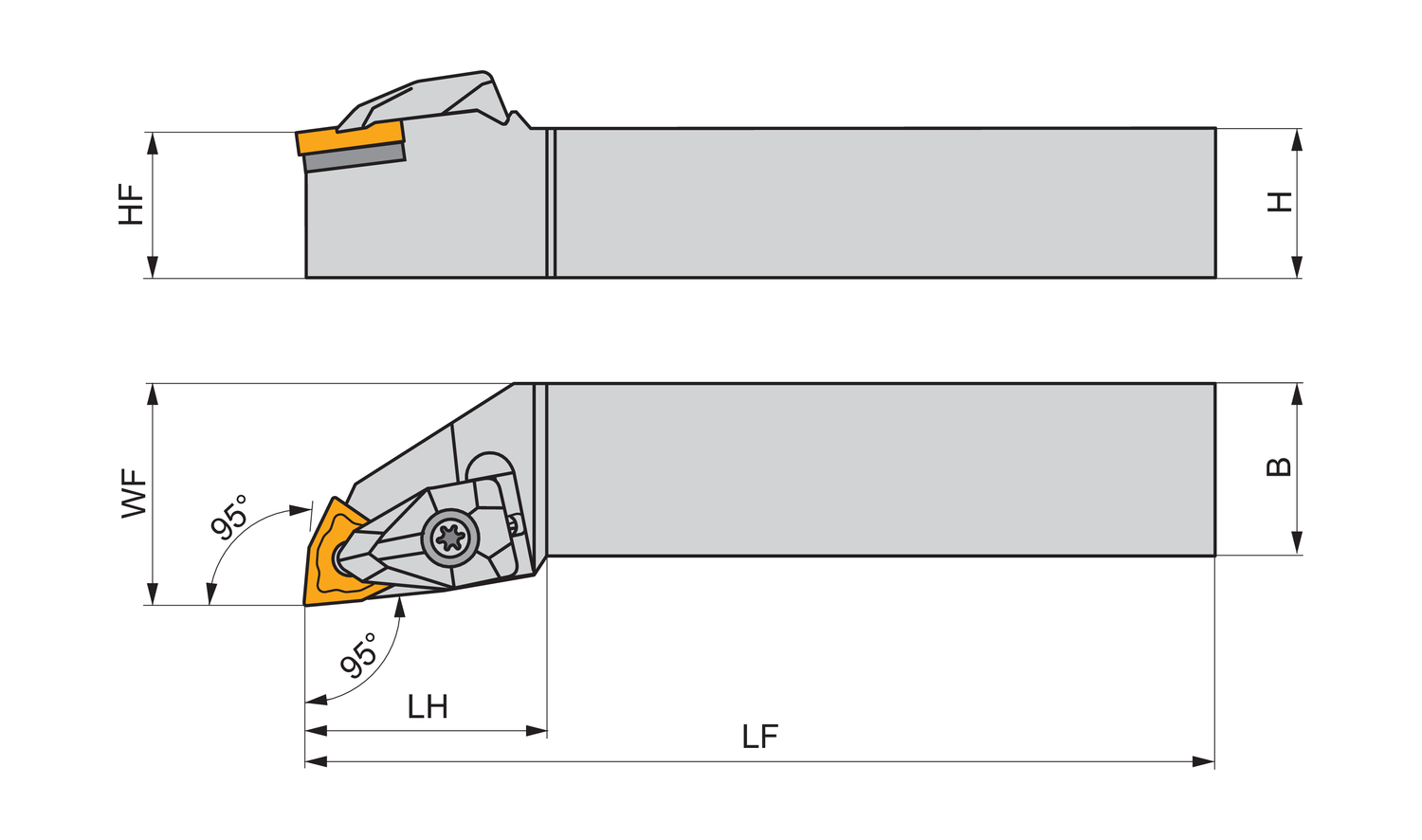

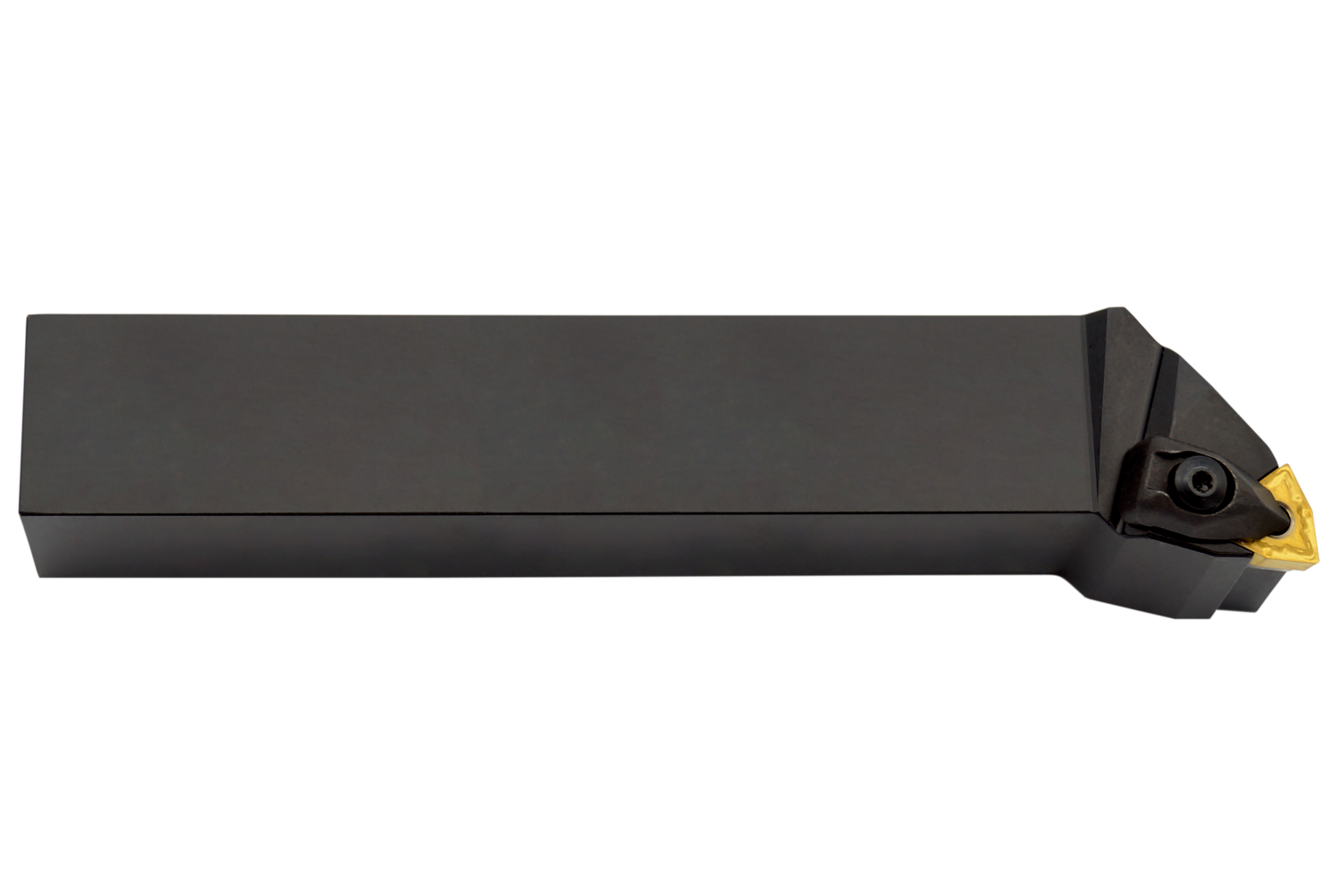

Double clamp turning tool for holding a 80° trigon negative insert with an inscribed circle diameter of 3/8'', 3/16'' thick (ANSI designation WN.. 33. ), left hand 95° side and end cutting with off-set shank, 3/4'' tool height x 3/4'' width x 5'' long for taper turning, face turning with and without shoulder and longitudinal turning with and without shoulder

• Product Name ISO: DWLNL 12 3C
• Ordering Code ANSI: DWLNL 12 3C
• EDP Number: 6788624
• Material Application Priority Usage: H - Hardened materials (any engineering metal with a hardness > 45HRC), K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), M - Stainless steel (corrosion resistant steels with = 11% chromium content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC), S - High-temperature alloys (superalloys with high temperature stength and corrosion resistant surpassing that of stainless steel)
