Double ended keyway and slotting insert for broaching a width of 14mm within tolerance class H7, grade 333TN PVD coated HSS within ISO-grade ranges P45-P50 for machining of steel in combination with a PHZ-2…-14 size broach
- Product Name ISO: HZ/2 14-14 H7:333TN
- Ordering Code ANSI: HZ/2 14-14 H7:333TN
- EDP Number: 6755460
- Coating: 333TN
- Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Metric |

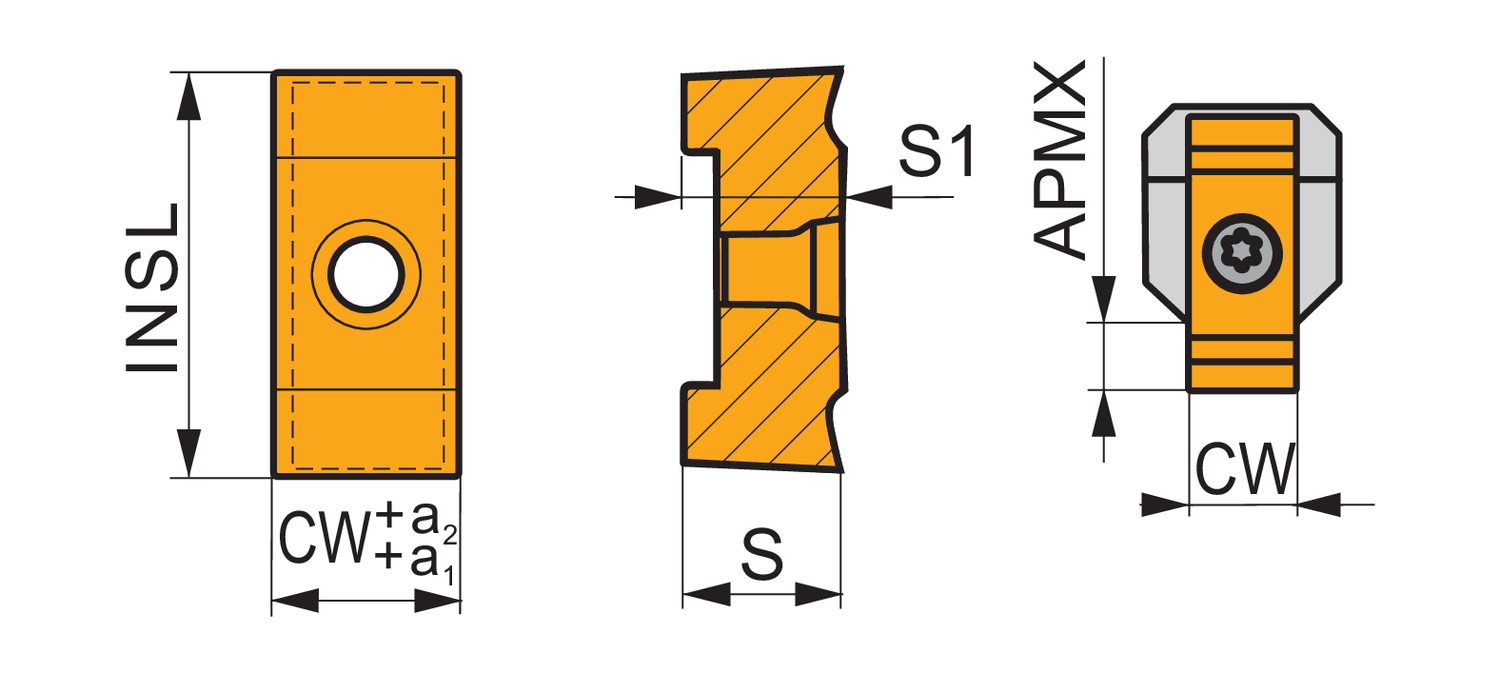

| Depth of Cut Maximum (Mm.) | 8 |
| Insert Length (Mm.) | 36 |
| Insert Thickness (Mm.) | 13.9 |
| Max Depth of Cut (In.) | 0.315 |
| Cutting Width Upper Tolerance (Mm.) | 0.018 |
| Cutting Width Lower (Mm.) | 0 |
| Coating | 333TN |
