Double ended keyway and slotting insert for broaching a width of 20mm within tolerance class C11, grade 333TN PVD coated HSS within ISO-grade ranges P45-P50 for machining of steel in combination with a PHZ-2…-18 size broach
- Product Name ISO: HZ/2 20-20 C11:333TN
- Ordering Code ANSI: HZ/2 20-20 C11:333TN
- EDP Number: 6755489
- Coating: 333TN
- Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Metric |

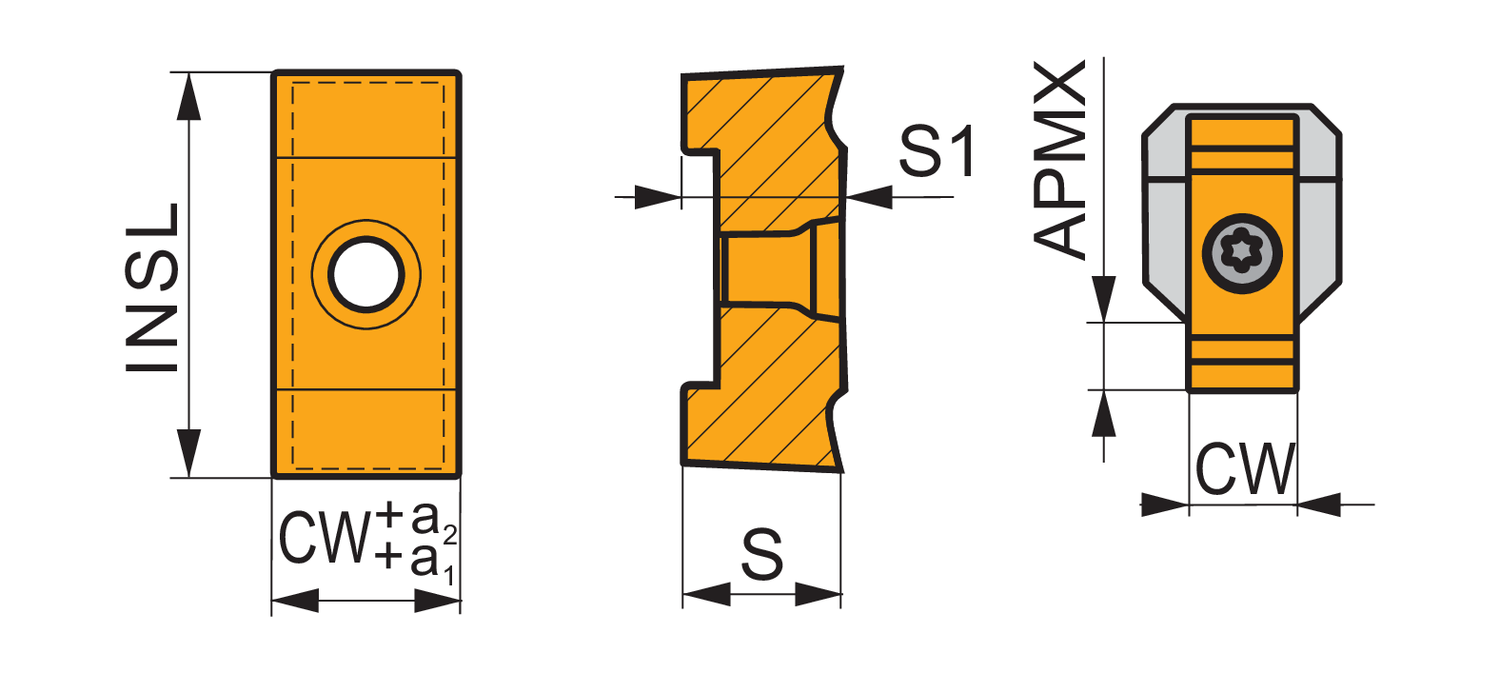

| Depth of Cut Maximum (Mm.) | 13 |
| Insert Length (Mm.) | 45 |
| Insert Thickness (Mm.) | 15.9 |
| Max Depth of Cut (In.) | 0.512 |
| Cutting Width Upper Tolerance (Mm.) | 0.24 |
| Cutting Width Lower (Mm.) | 0.11 |
| Coating | 333TN |
