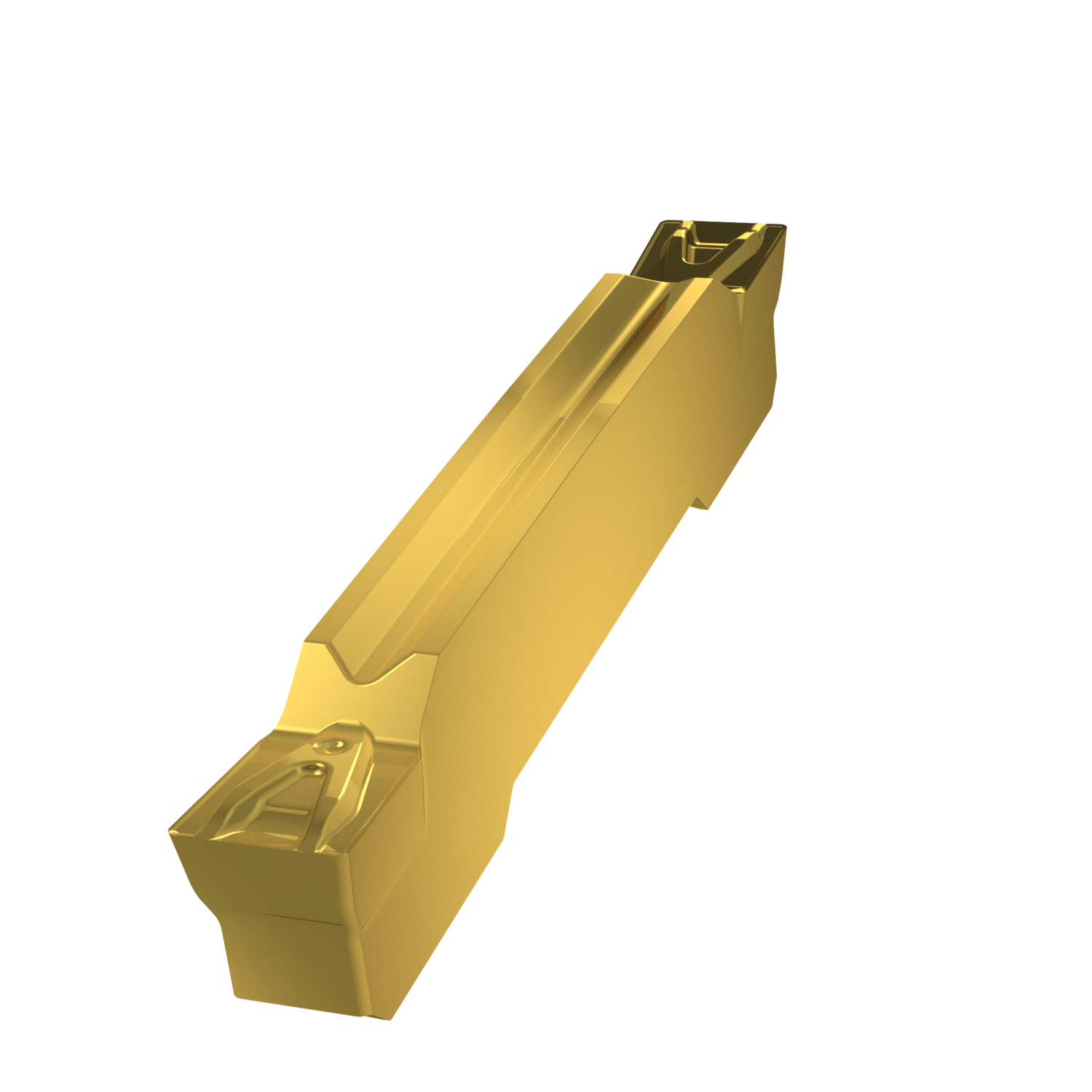

Double ended parting and grooving insert, 0.984 inch long with a 0.118 inch cutting width and 0.008 inch corner radii. Grade G8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P25 -P40/M20 -M35 and K20 -K40 for machining of steel, stainless-steel and cast-iron. GM versatile geometry for grooving and longitudinal turning, and continuous to interrupted cuts.
- Product Name ISO: GL3-D300M02-GM:G8330
- Ordering Code ANSI: GL3-D300M02-GM:G8330
- EDP Number: 8022955
- Coating: G8330
- Material Application Priority Usage: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), M - Stainless steel (corrosion resistant steels with = 11% chromium content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)

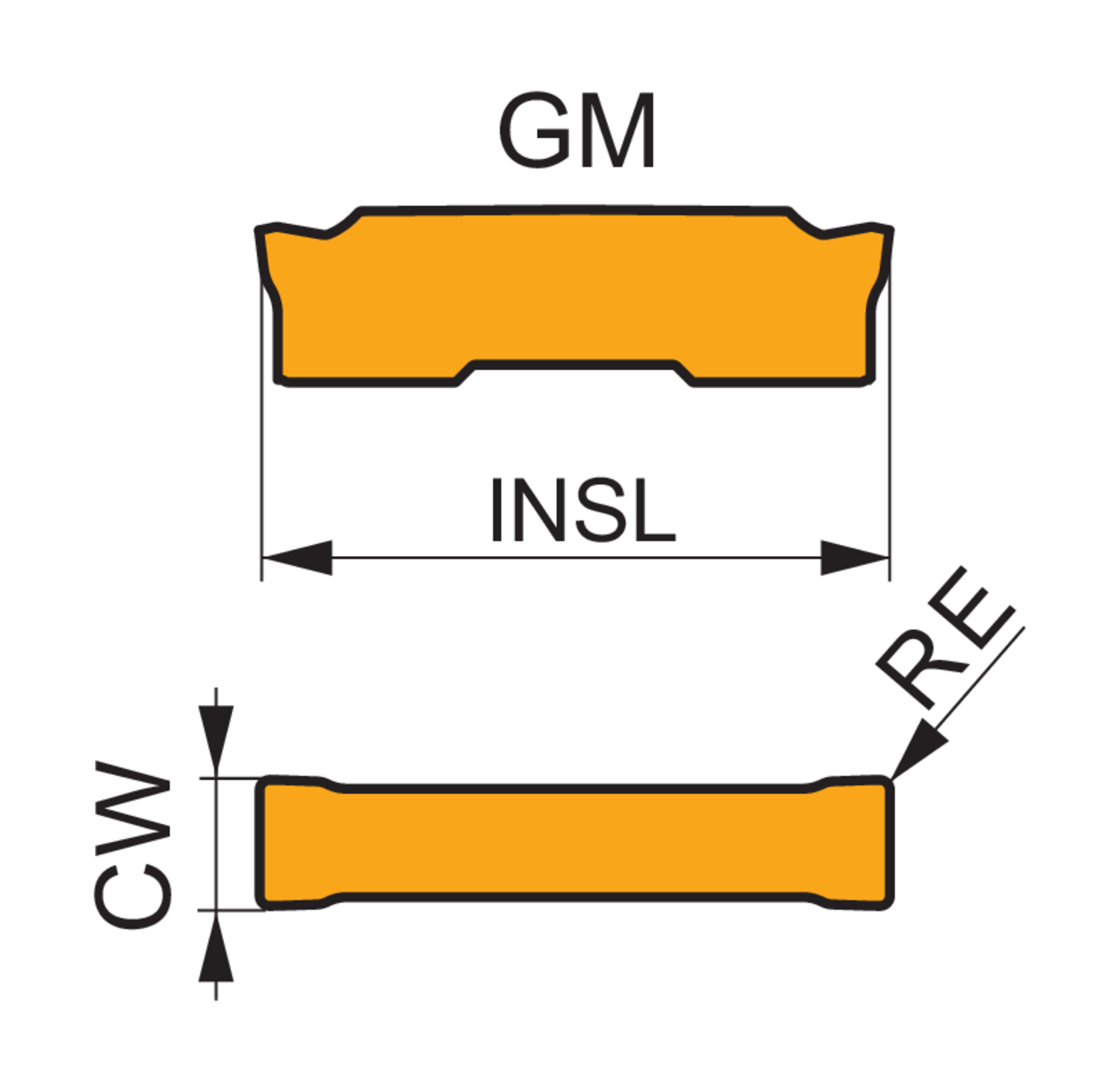

| Product Measurement Standard | Metric |
| Corner Radius (Mm.) | 0.2 |
| Insert Length (Mm.) | 25 |
| Cutting Width Upper Tolerance (Mm.) | 0.05 |
| Cutting Width Lower (Mm.) | -0.05 |
| Coating | G8330 |
There are no reviews yet
Customers who bought this item also bought
Turning Insert - Negative - DNMG 432-NM:T8430
$12.50 excl tax
- 18 %
Hand Deburring Tool Replacement Blade - E100P
From $2.28 excl tax
$3.49 excl tax
Insert Screw C03509-T15P
$8.50 excl tax
Insert V84 NV AC50E
$26.41 excl tax
New
Insert GL3-S300M02-PM:H07
$9.10 excl tax
Mighty Marker - Yellow
$2.84 excl tax
Mighty Marker - White
$2.84 excl tax
Insert VNMG 332-TF IC907 ISO Turn Neg
$15.88 excl tax
Insert DNMG 332-NF IC907 ISO Turn Neg
$11.02 excl tax
Insert XCMT080304TC TT9030
$20.12 excl tax
Insert TAG N3C IC808 Tang Grip
$16.54 excl tax

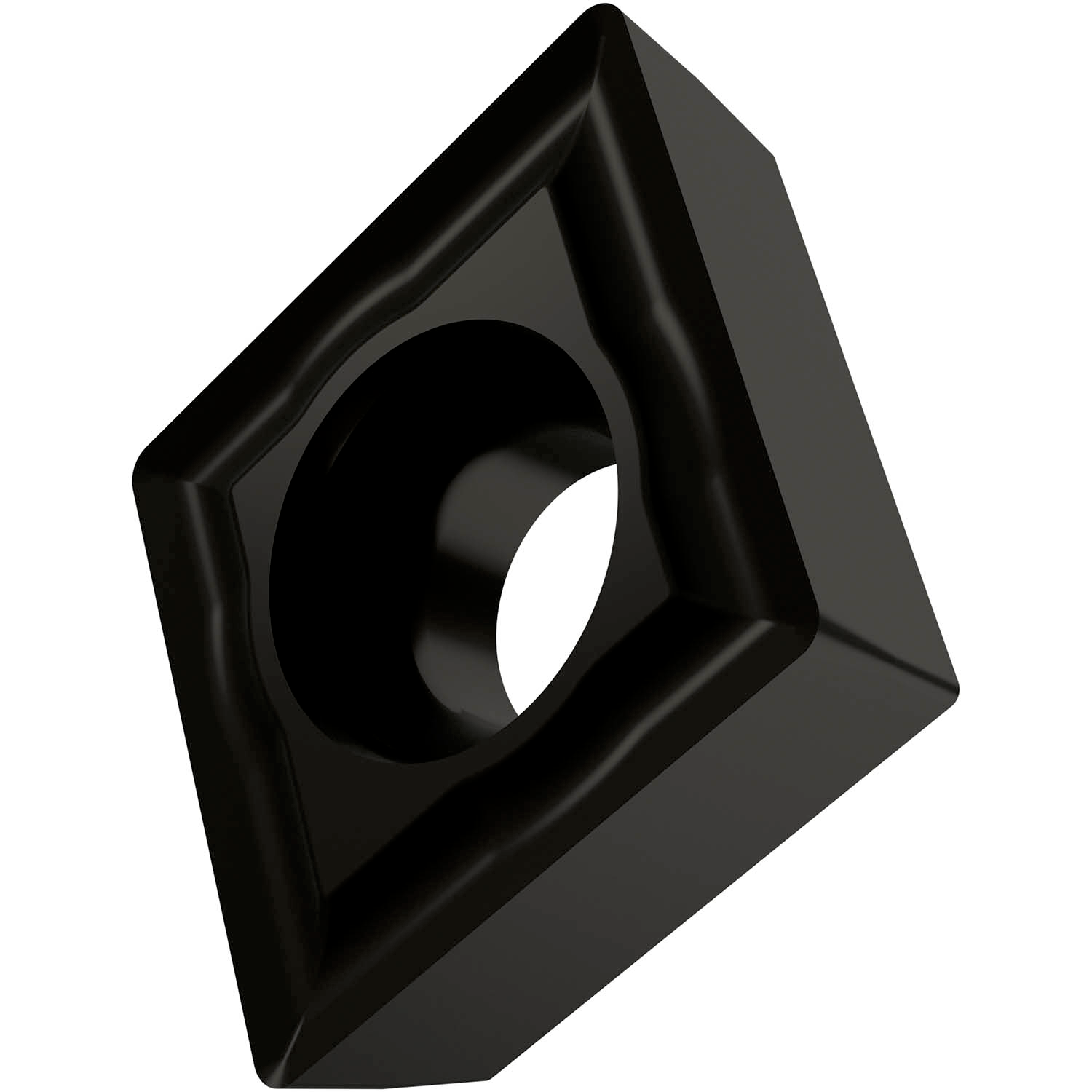

Turning Insert - Positive - CCMT 21.51-NF2:T9325
