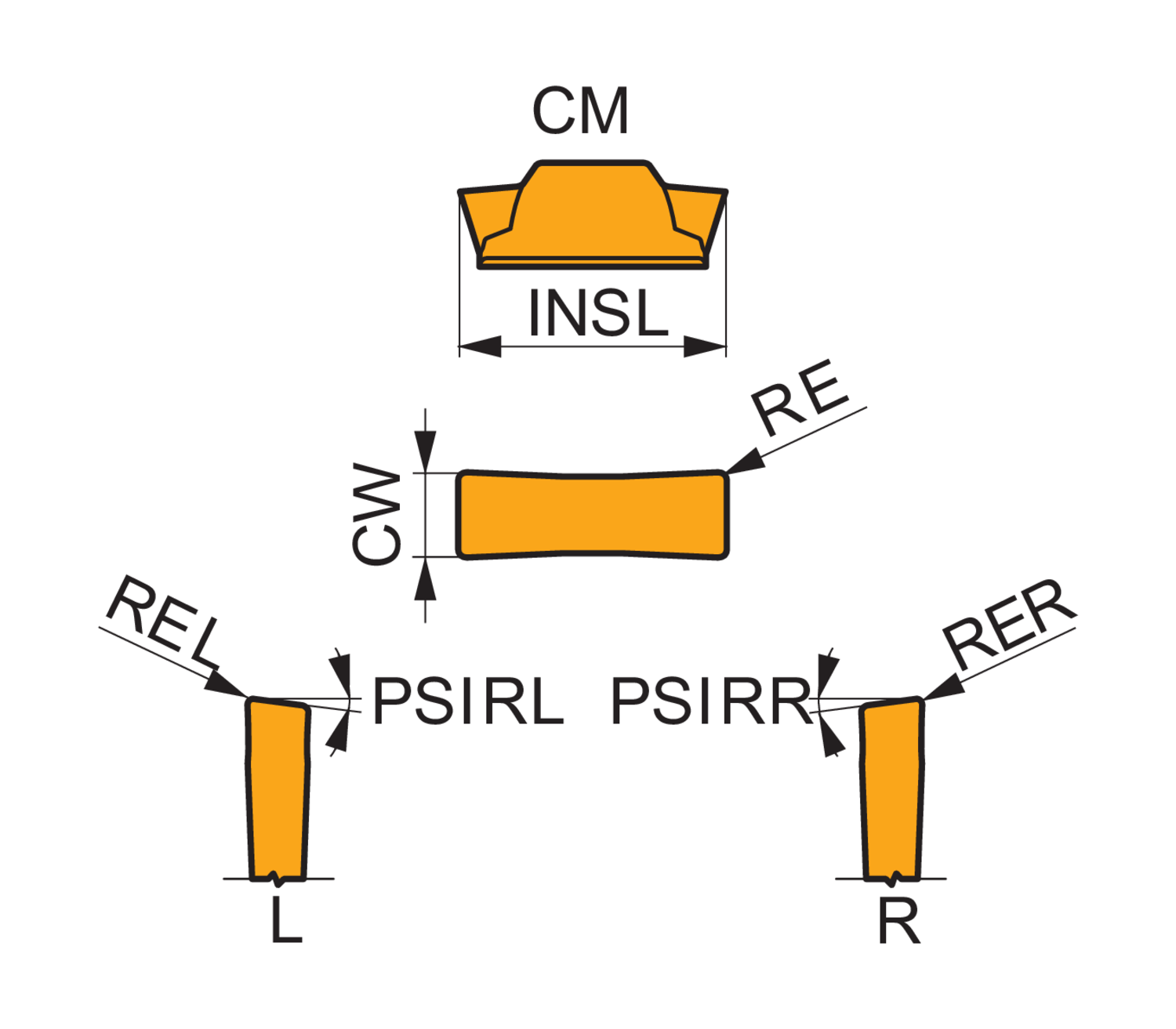

Double ended parting and grooving insert, 16.4mm long with a 5mm cutting width and 0.4mm corner radii, an accuracy according to tolerance class-M and chip-breaker CM, grade T8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P25-P40 and K20-K40 for machining of steel and cast-iron in combination with PRAMET GF..(RL) 05 and XLCCN 0516 parting and grooving tools
- Product Name ISO: LCMF 051604-CM:T8330
- Ordering Code ANSI: LCMF 051604-CM:T8330
- EDP Number: 6754711
- Coating: T8330
- Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Metric |
| Corner Radius (Mm.) | 0.4 |
| Insert Length (Mm.) | 16.4 |
| Cutting Width Upper Tolerance (Mm.) | 0.05 |
| Cutting Width Lower (Mm.) | -0.05 |
| Coating | T8330 |
