Double-sided milling insert BNGX 10T3, 82° parallelogram and high-feed design for a maximum depth of cut of .0394", with .0315" corner radius, an indexing accuracy according to ISO-tolerance class-G and HM geometry with rounded cutting edges and facet, M8330 PVD coated fine grained WC-Co carbide within ISO-grade range K20-K40 for machining of cast-iron with high feed cutters SBN10
- Product Name ISO: BNGX 10T308SR-HM:M8330
- Ordering Code ANSI: BNGX 10T308SR-HM:M8330
- EDP Number: 7451998
- Coating: M8330

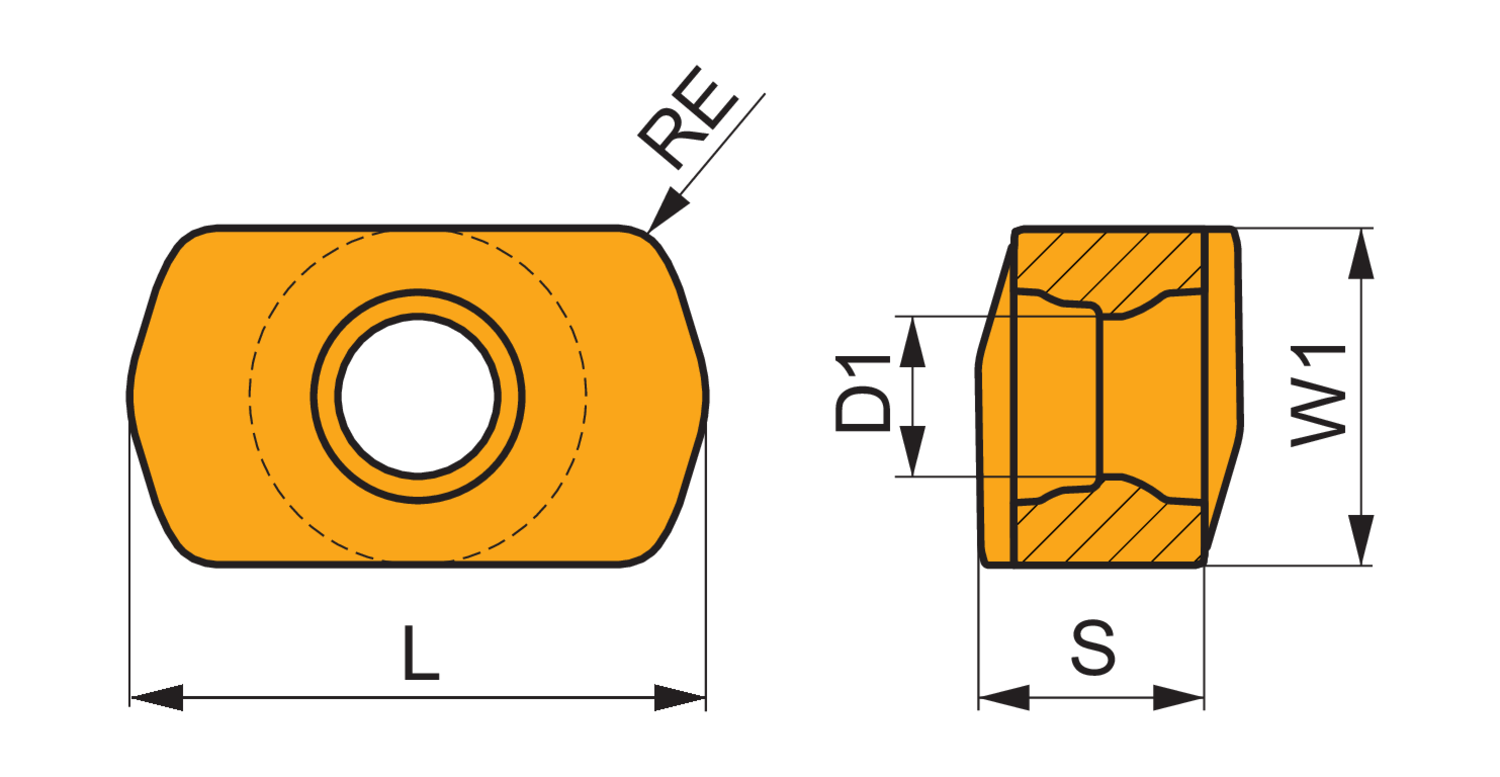

| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 1 |
| Corner Radius (Mm.) | 0.8 |
| Fixing Hole Diameter (Mm.) | 2.76 |
| Insert Thickness (Mm.) | 3.9 |
| Insert Width (Mm.) | 5.8 |
| Max Depth of Cut (In.) | 0.039 |
| Coating | M8330 |
