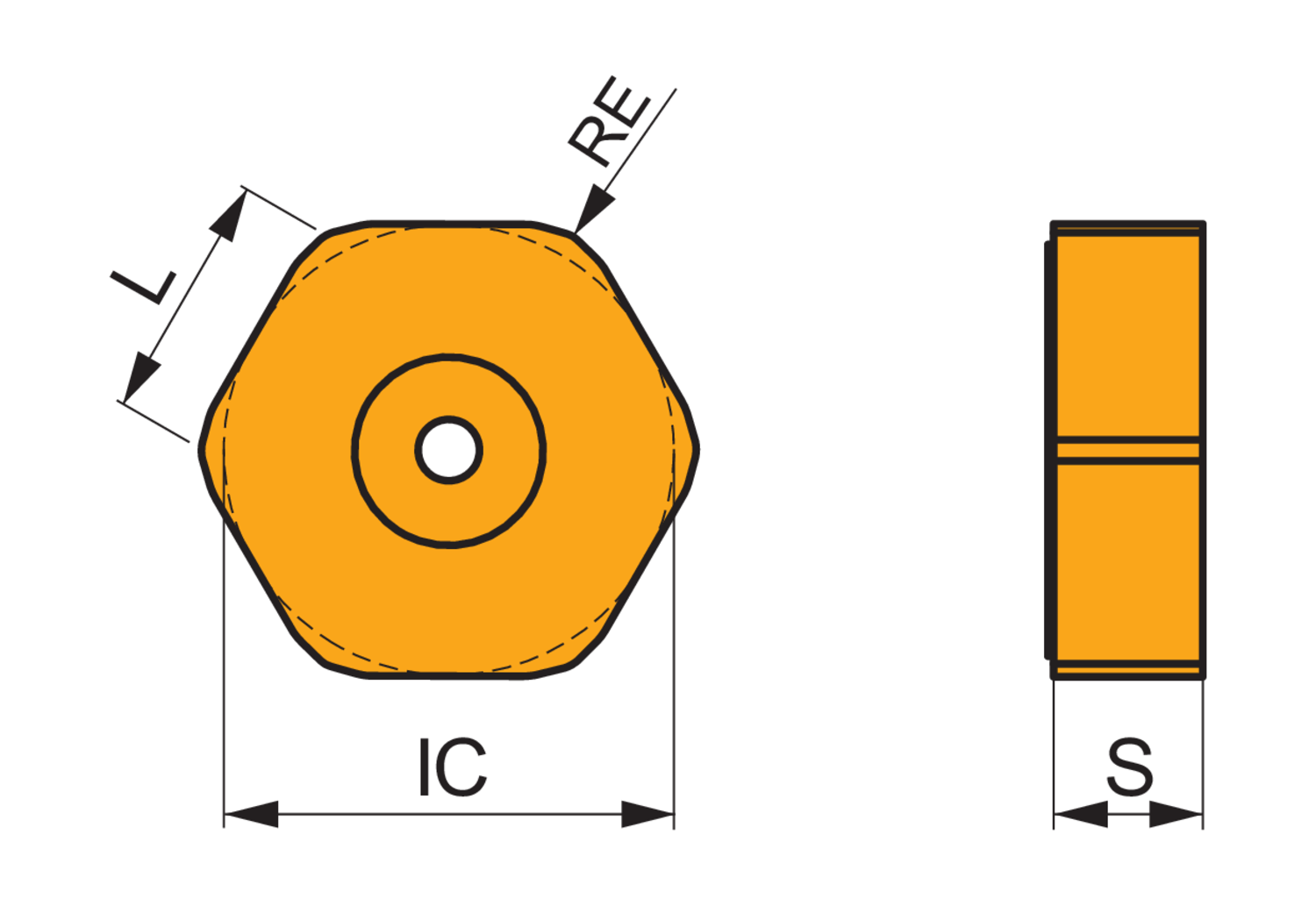

Double-sided milling insert HNEF 0905DNF with chip-breakers, hectagonal for a maximum depth of cut of .1181", with .0157" corner radius, an indexing accuracy according to ISO-tolerance class-E and F geometry with sharp cutting edges, M5315 MT-CVD coated WC-Co carbide within ISO-grade range K05-K25 for machining of cast-iron with face mills CHN09
- Product Name ISO: HNEF 0905DNFN-F:M5315
- Ordering Code ANSI: HNEF 0905DNFN-F:M5315
- EDP Number: 6756109
- Coating: M5315
- Material Application Priority Usage: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content)
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 3 |
| Corner Radius (Mm.) | 0.4 |
| Inscribing Circle Dia. (Mm.) | 16.2 |
| Insert Thickness (Mm.) | 5.64 |
| Max Depth of Cut (In.) | 0.118 |
| Coating | M5315 |
