Double-sided milling insert HNGX 0604, hectagonal for a maximum depth of cut of .1181", with " corner radius, an indexing accuracy according to ISO-tolerance class-G and M geometry with rounded cutting edges and facet, M8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P20-P40 and K20-K40 for machining of steel and cast-iron with face mills SHN06C
- Product Name ISO: HNGX 0604ANSN-M:M8330
- Ordering Code ANSI: HNGX 0604ANSN-M:M8330
- EDP Number: 7447878
- Coating: M8330
- Material Application Priority Usage: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 3 |

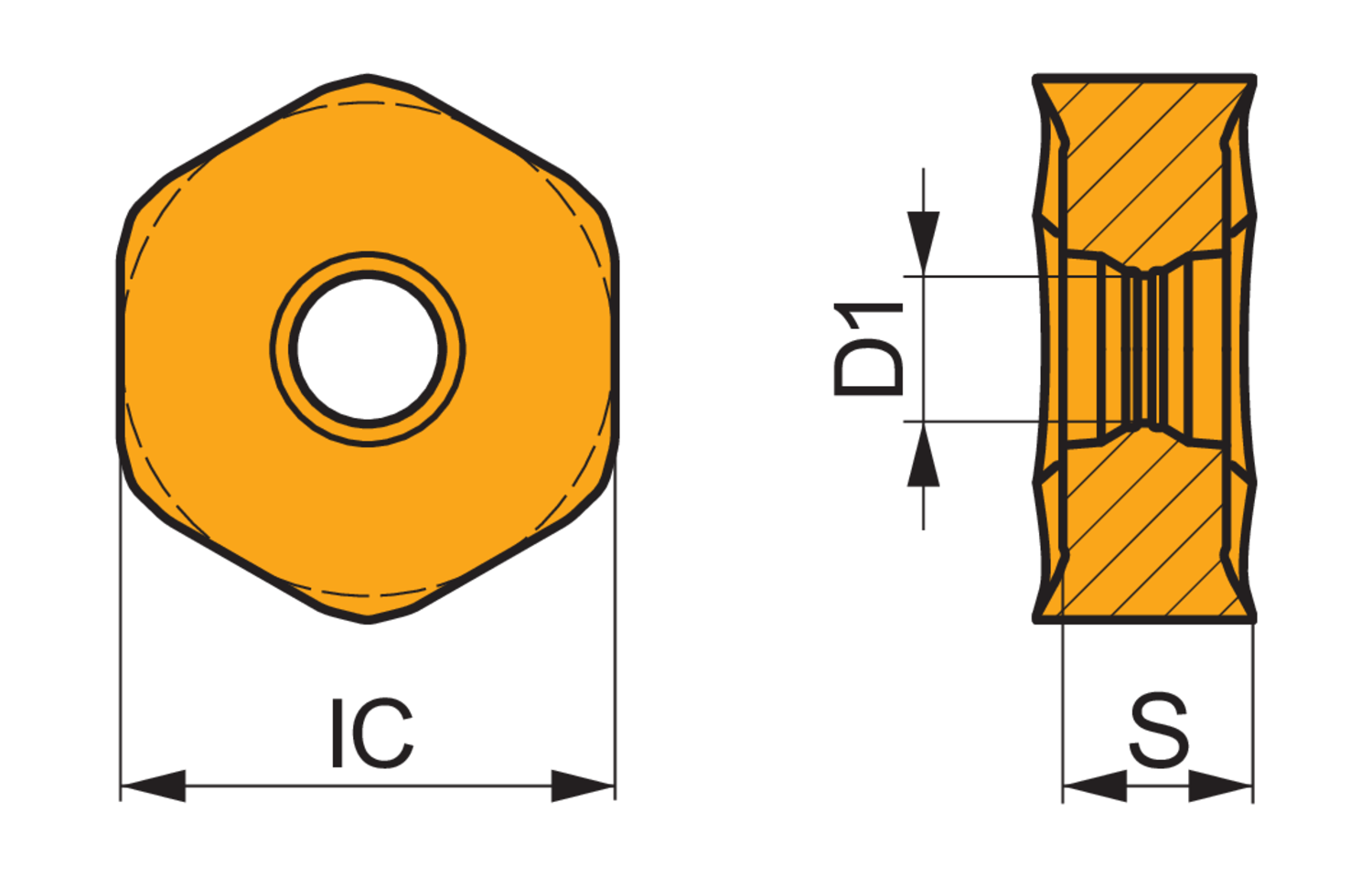

| Fixing Hole Diameter (Mm.) | 3.7 |
| Inscribing Circle Dia. (Mm.) | 10.5 |
| Insert Thickness (Mm.) | 4.76 |
| Max Depth of Cut (In.) | 0.118 |
| Coating | M8330 |
