Double-sided milling insert HNGX 0906, hectagonal for a maximum depth of cut of .1969", with " corner radius, an indexing accuracy according to ISO-tolerance class-G and M geometry with rounded cutting edges and facet, M6330 PVD coated WC-Co carbide for machining with face mills SHN09C
- Product Name ISO: HNGX 0906ANSN-M:M6330
- Ordering Code ANSI: HNGX 0906ANSN-M:M6330
- EDP Number: 7077577
- Coating: M6330
- Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 5 |

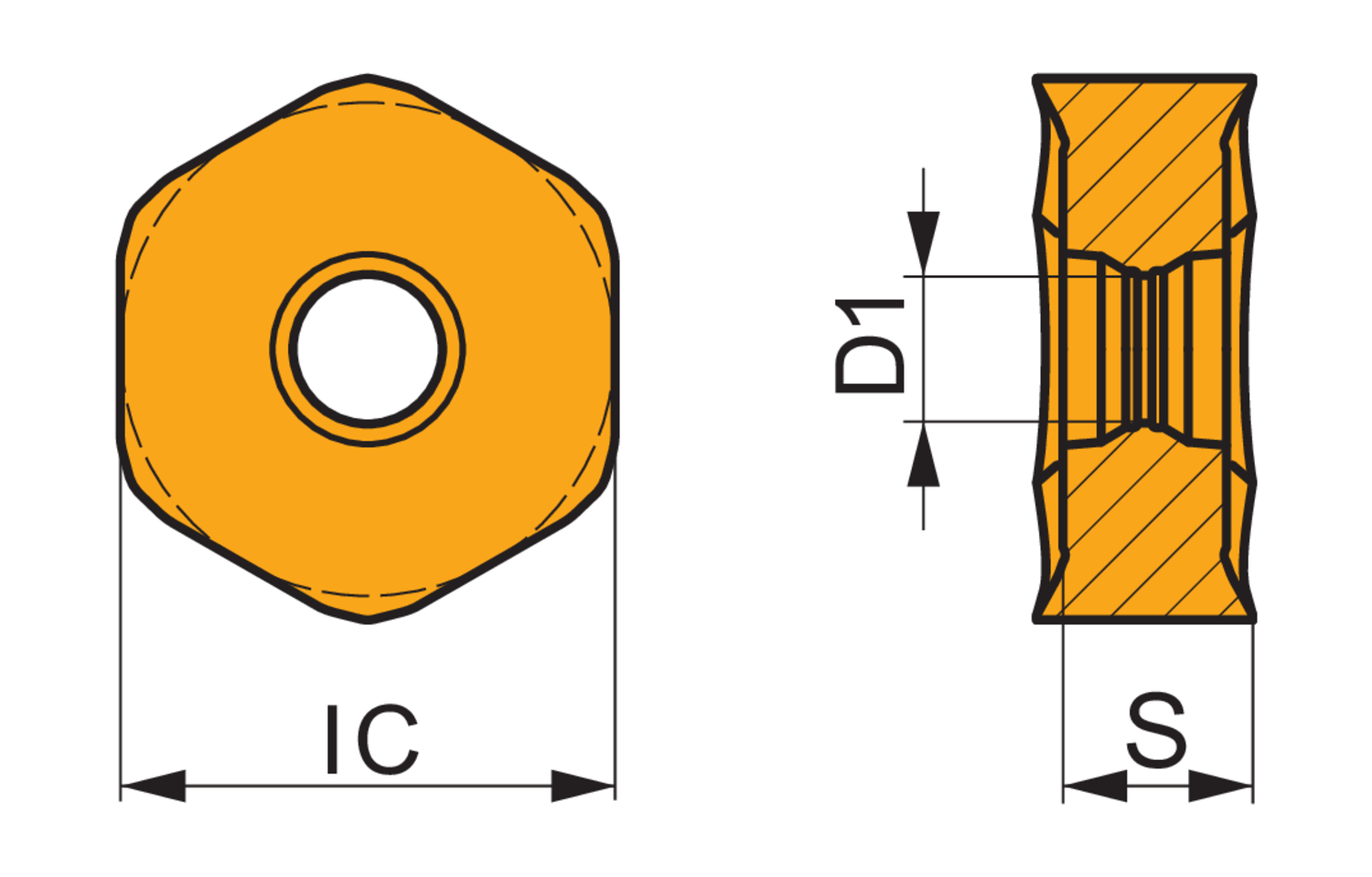

| Fixing Hole Diameter (Mm.) | 4.9 |
| Inscribing Circle Dia. (Mm.) | 16.5 |
| Insert Thickness (Mm.) | 6.35 |
| Max Depth of Cut (In.) | 0.197 |
| Coating | M6330 |
