Double-sided milling insert HNGX 0906, hectagonal for a maximum depth of cut of .1969", with " corner radius, an indexing accuracy according to ISO-tolerance class-G and FF geometry with rounded cutting edges, M9340 MT-CVD coated WC-Co carbide within ISO-grade range M30-M40 for machining of stainless-steel with face mills SHN09C
- Product Name ISO: HNGX 0906ANEN-FF:M9340
- Ordering Code ANSI: HNGX 0906ANEN-FF:M9340
- EDP Number: 6755645
- Coating: M9340
- Material Application Priority Usage: M - Stainless steel (corrosion resistant steels with = 11% chromium content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 5 |

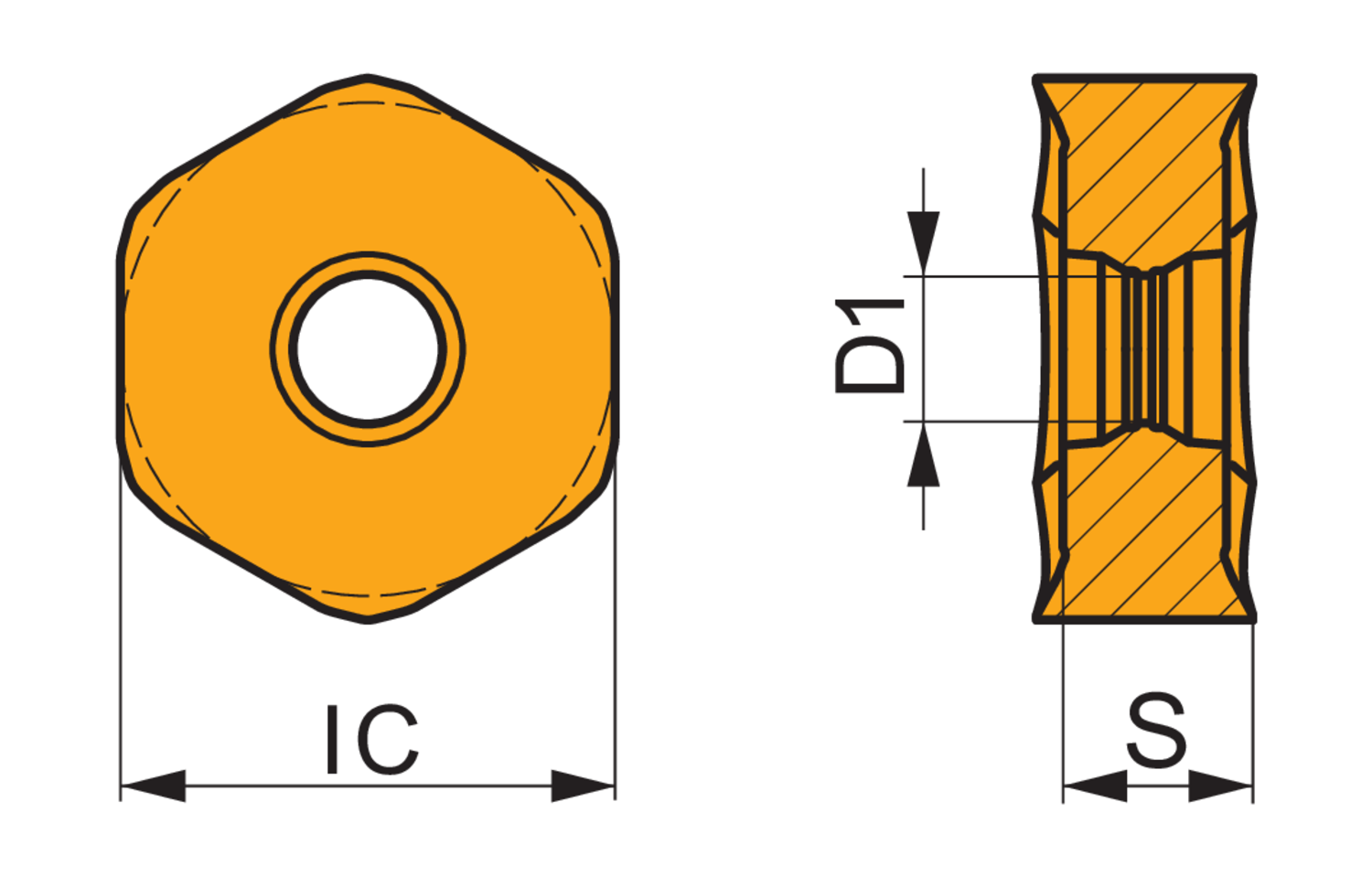

| Fixing Hole Diameter (Mm.) | 4.9 |
| Inscribing Circle Dia. (Mm.) | 16.5 |
| Insert Thickness (Mm.) | 6.35 |
| Max Depth of Cut (In.) | 0.197 |
| Coating | M9340 |
