Double-sided milling insert HNGX 0906, hectagonal for a maximum depth of cut of .1969", with " corner radius, an indexing accuracy according to ISO-tolerance class-G and F geometry with rounded cutting edges and facet, M6330 PVD coated WC-Co carbide within ISO-grade range M20-M35 for machining of stainless-steel with face mills SHN09C
- Product Name ISO: HNGX 0906ANSN-F:M6330
- Ordering Code ANSI: HNGX 0906ANSN-F:M6330
- EDP Number: 7601338
- Coating: M6330
- Material Application Priority Usage: M - Stainless steel (corrosion resistant steels with = 11% chromium content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
Product Measurement Standard | Metric |
Depth of Cut Maximum (Mm.) | 5 |

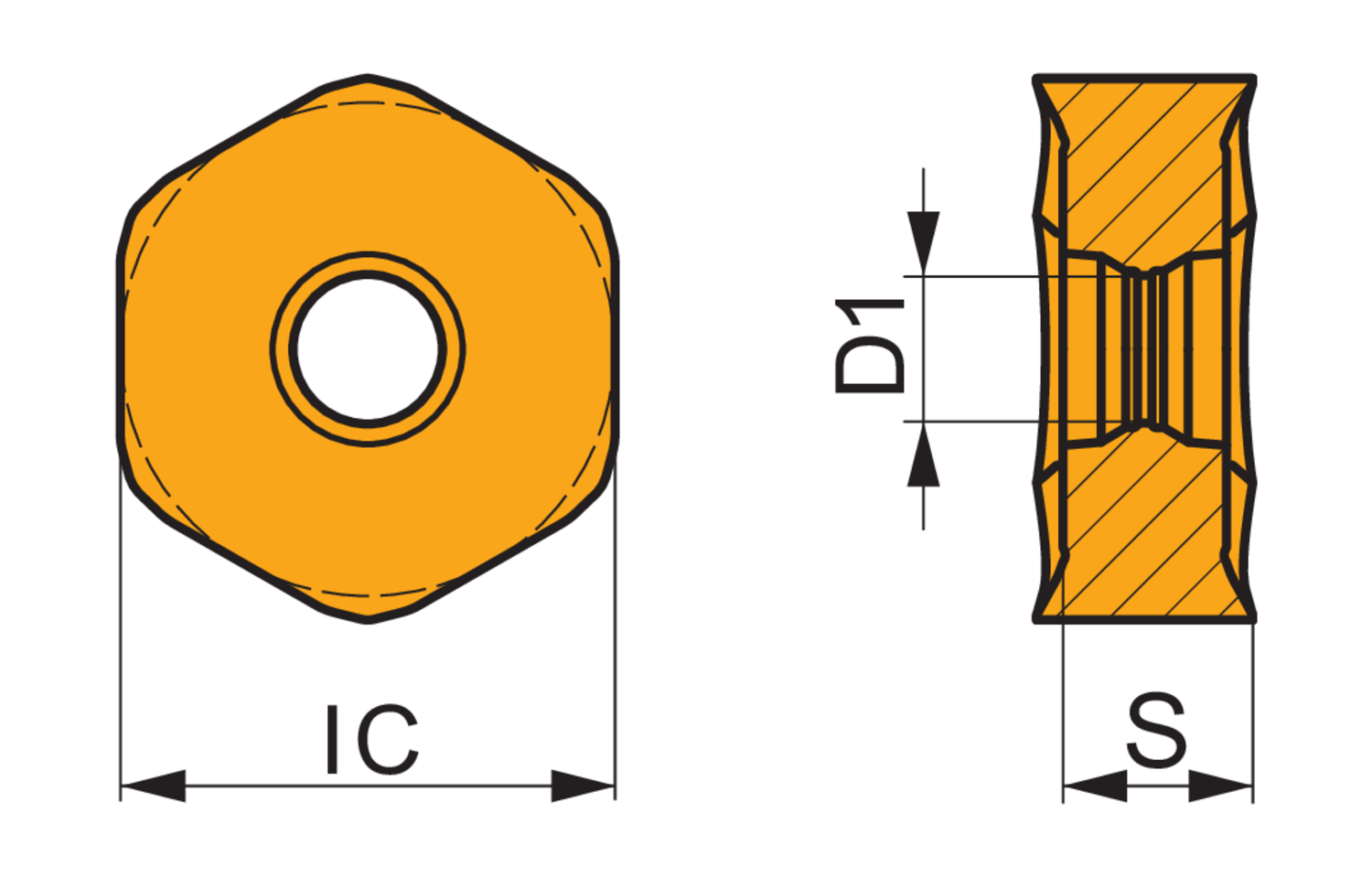

Fixing Hole Diameter (Mm.) | 4.9 |
Inscribing Circle Dia. (Mm.) | 16.5 |
Insert Thickness (Mm.) | 6.35 |
Max Depth of Cut (In.) | 0.197 |
Coating | M6330 |
