Double-sided milling insert HNMF 0905 with chip-breakers, hectagonal for a maximum depth of cut of .2362", with .063" corner radius, an indexing accuracy according to ISO-tolerance class-M and R geometry with rounded cutting edges and facet, M5315 MT-CVD coated WC-Co carbide within ISO-grade range K05-K25 for machining of cast-iron with face mills CHN09
- Product Name ISO: HNMF 090516SN-R:M5315
- Ordering Code ANSI: HNMF 090516SN-R:M5315
- EDP Number: 6756173
- Coating: M5315
- Material Application Priority Usage: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content)
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Metric |

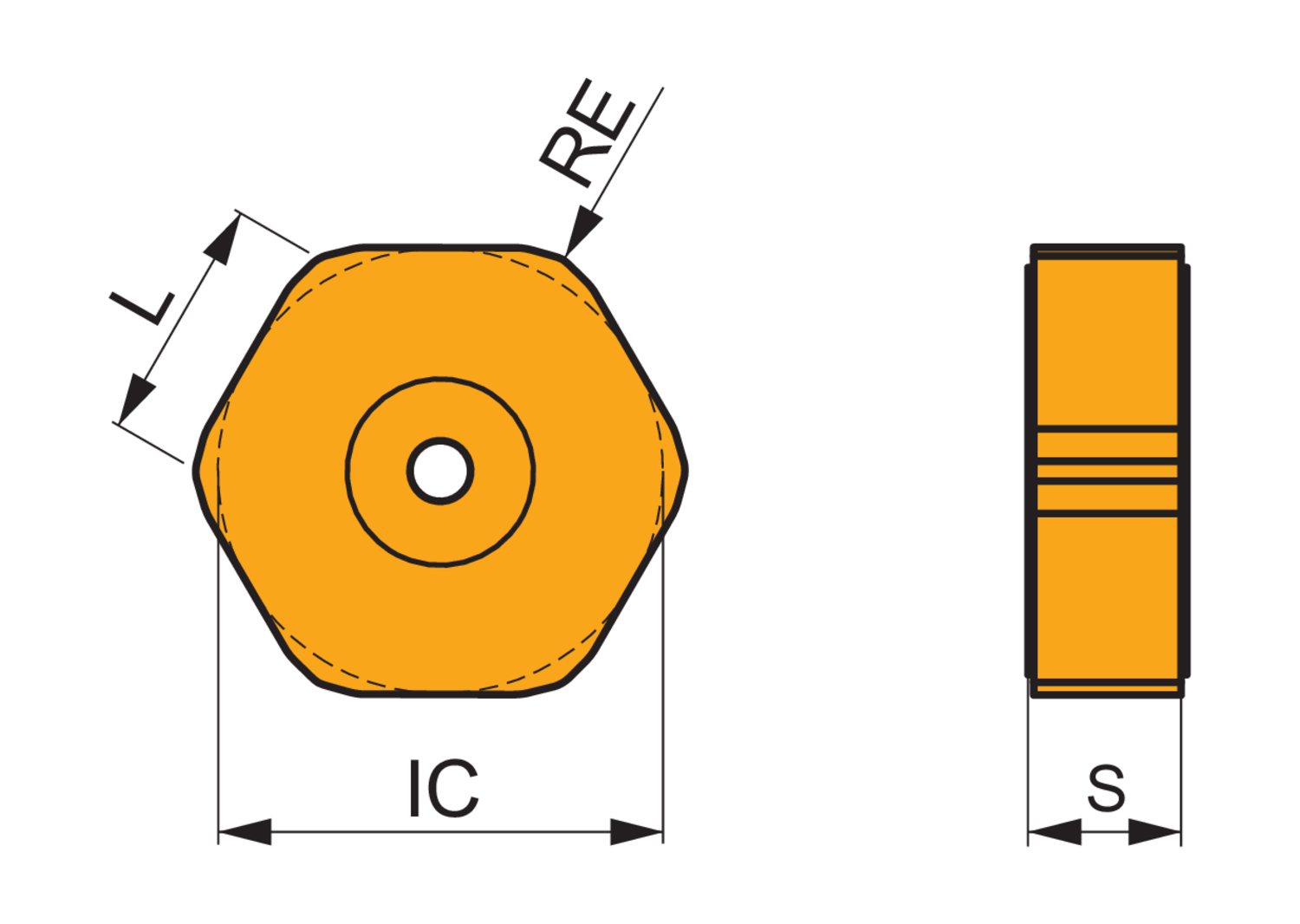

| Depth of Cut Maximum (Mm.) | 6 |
| Corner Radius (Mm.) | 1.6 |
| Inscribing Circle Dia. (Mm.) | 16.2 |
| Insert Thickness (Mm.) | 5.64 |
| Max Depth of Cut (In.) | 0.236 |
| Coating | M5315 |
