Double-sided milling insert LNGU 1607 with chip-breakers, rectangular for a maximum depth of cut of .5118", with .0315" corner radius, an indexing accuracy according to ISO-tolerance class-G and FA geometry with sharp cutting edges, HF7 uncoated fine grained WC-Co carbide within ISO-grade range N10-N25 for machining of non-ferrous metal with shoulder mills SLN16
- Product Name ISO: LNGU 160708FR-FA:HF7
- Ordering Code ANSI: LNGU 160708FR-FA:HF7
- EDP Number: 6941432
- Coating: HF7
- Material Application Priority Usage: N - Non-ferrous metals (metals including alloys without an appreciable amount of iron)

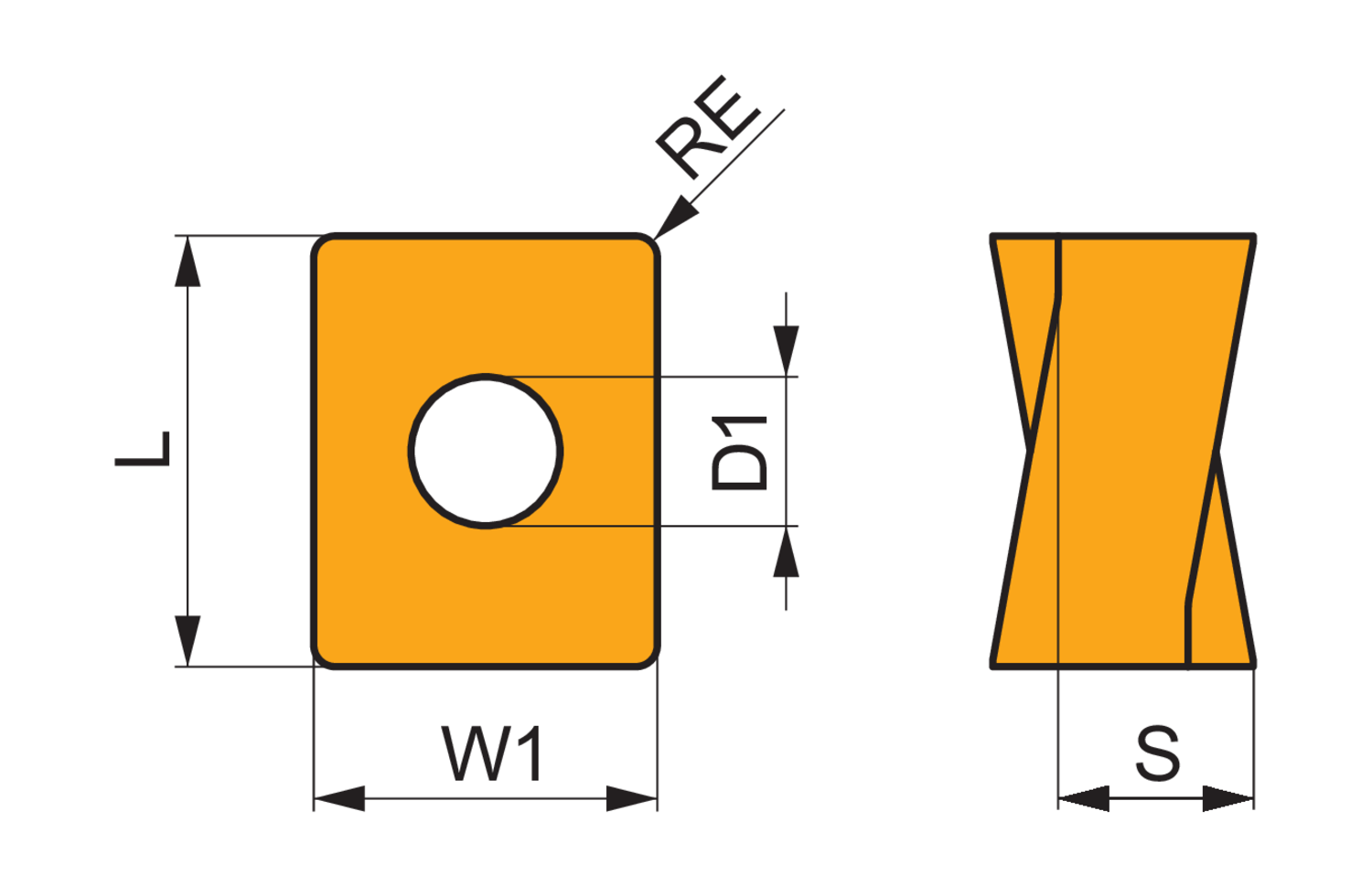

| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 13 |
| Corner Radius (Mm.) | 0.8 |
| Fixing Hole Diameter (Mm.) | 5.7 |
| Insert Thickness (Mm.) | 7.5 |
| Insert Width (Mm.) | 13.2 |
| Max Depth of Cut (In.) | 0.512 |
| Coating | HF7 |
