Double-sided milling insert LNGX 1205, rectangular for a maximum depth of cut of .3543", with .0157" corner radius, an indexing accuracy according to ISO-tolerance class-G and MF geometry with rounded cutting edges, M6330 PVD coated WC-Co carbide within ISO-grade range M20-M35 for machining of stainless-steel with shoulder mills SLN12
- Product Name ISO: LNGX 120504ER-MF:M6330
- Ordering Code ANSI: LNGX 120504ER-MF:M6330
- EDP Number: 6925524
- Coating: M6330
- Material Application Priority Usage: M - Stainless steel (corrosion resistant steels with = 11% chromium content)

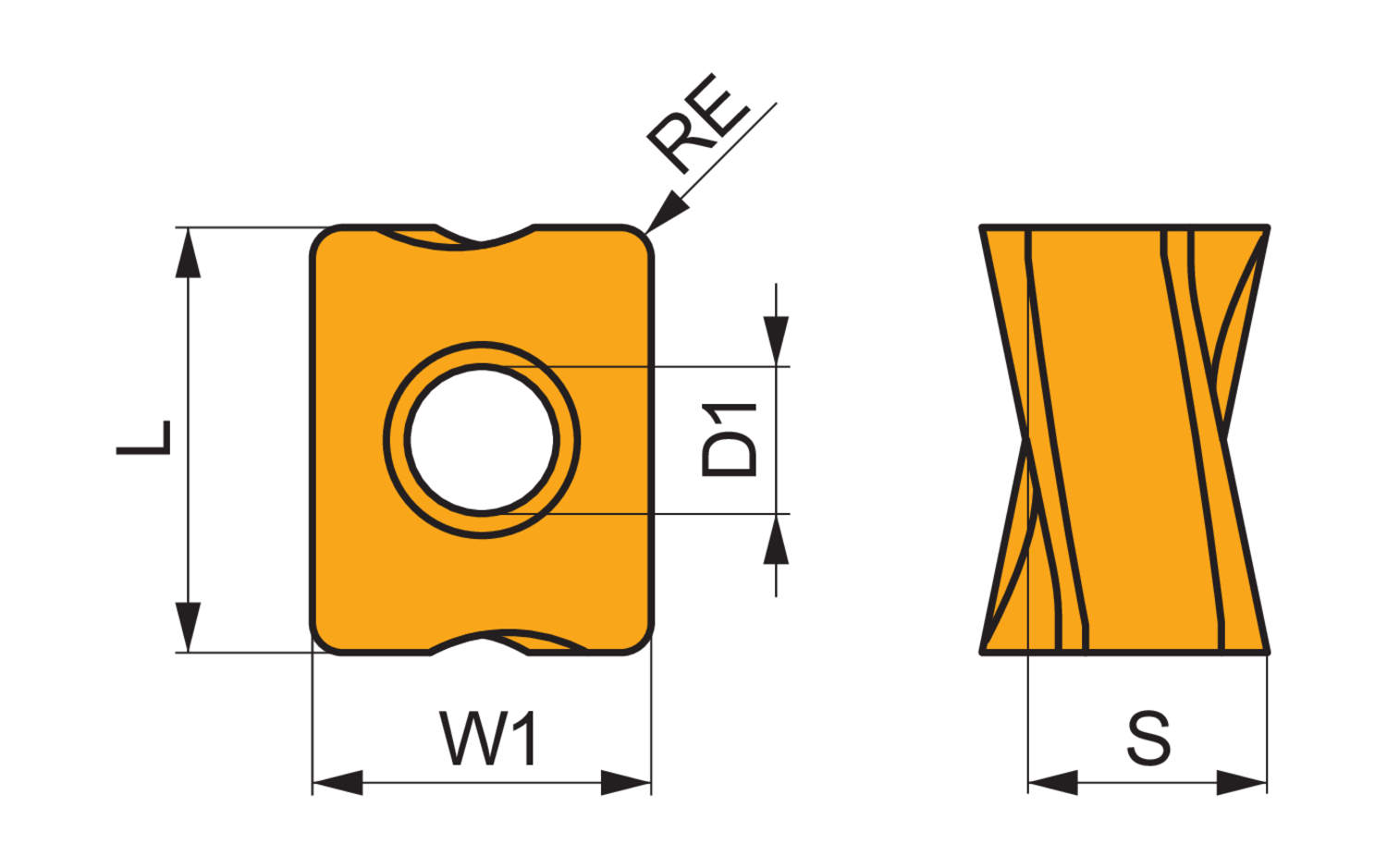

| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 9 |
| Corner Radius (Mm.) | 0.4 |
| Fixing Hole Diameter (Mm.) | 4.5 |
| Insert Thickness (Mm.) | 5.96 |
| Insert Width (Mm.) | 9.5 |
| Max Depth of Cut (In.) | 0.354 |
| Coating | M6330 |
