Double-sided milling insert LNGX 1205, rectangular for a maximum depth of cut of .3543", with .0315" corner radius, an indexing accuracy according to ISO-tolerance class-G and MM geometry with rounded cutting edges and facet, M8340 PVD coated fine grained WC-Co carbide within ISO-grade ranges P25-P50 and M20-M40 for machining of steel and stainless-steel with shoulder mills SLN12
- Product Name ISO: LNGX 120508SR-MM:M8340
- Ordering Code ANSI: LNGX 120508SR-MM:M8340
- EDP Number: 6925549
- Coating: M8340
- Material Application Priority Usage: M - Stainless steel (corrosion resistant steels with = 11% chromium content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)

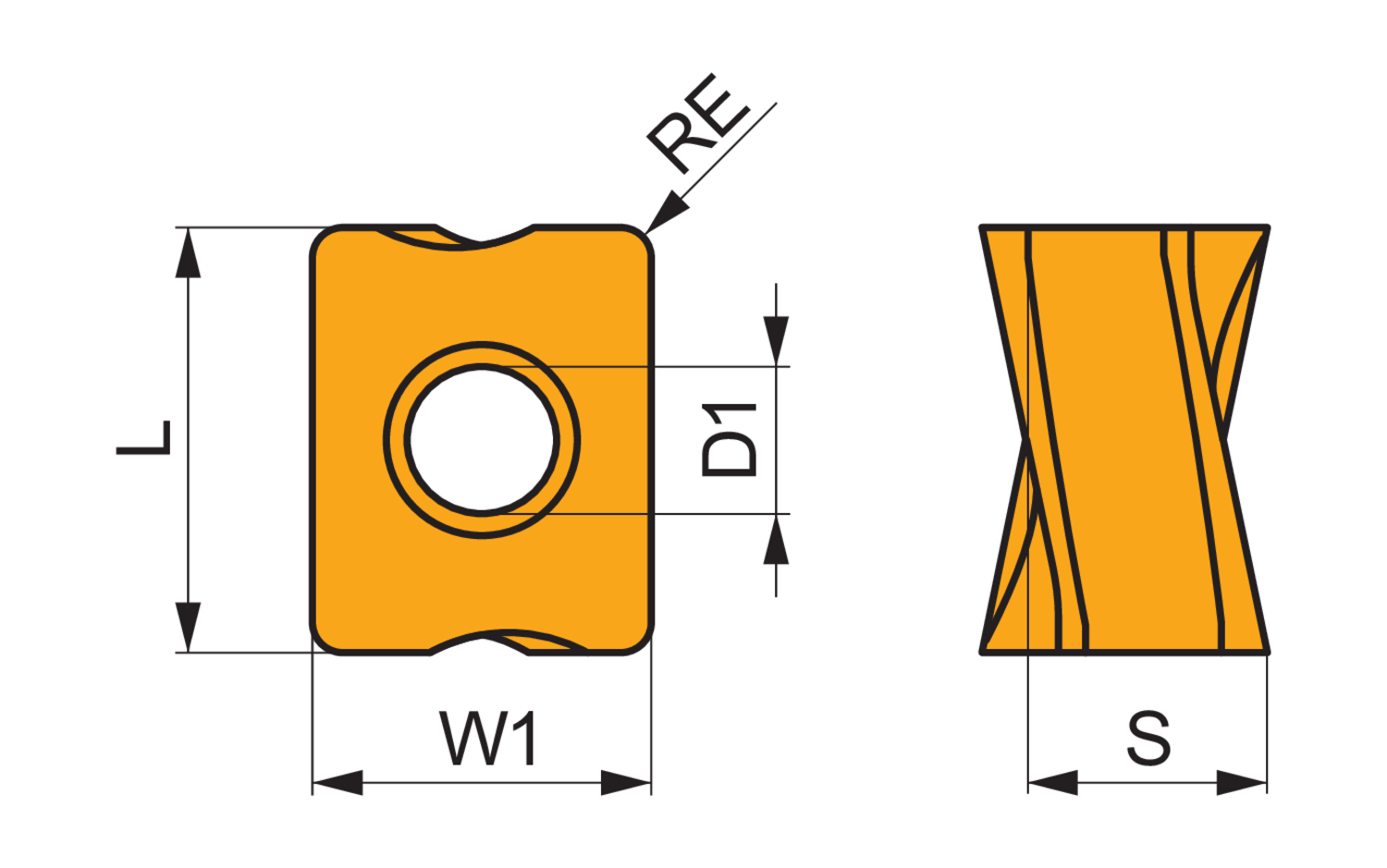

| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 9 |
| Corner Radius (Mm.) | 0.8 |
| Fixing Hole Diameter (Mm.) | 4.5 |
| Insert Thickness (Mm.) | 5.96 |
| Insert Width (Mm.) | 9.5 |
| Max Depth of Cut (In.) | 0.354 |
| Coating | M8340 |
