Double-sided milling insert LNMU 1607 with chip-breakers, rectangular for a maximum depth of cut of .5118", with .0315" corner radius, an indexing accuracy according to ISO-tolerance class-M and R geometry with rounded cutting edges and facet, M9325 MT-CVD coated WC-Co carbide for machining of steel with shoulder mills SLN16
- Product Name ISO: LNMU 160708SR-R:M9325
- Ordering Code ANSI: LNMU 160708SR-R:M9325
- EDP Number: 6941425
- Coating: M9325
- Material Application Priority Usage: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)

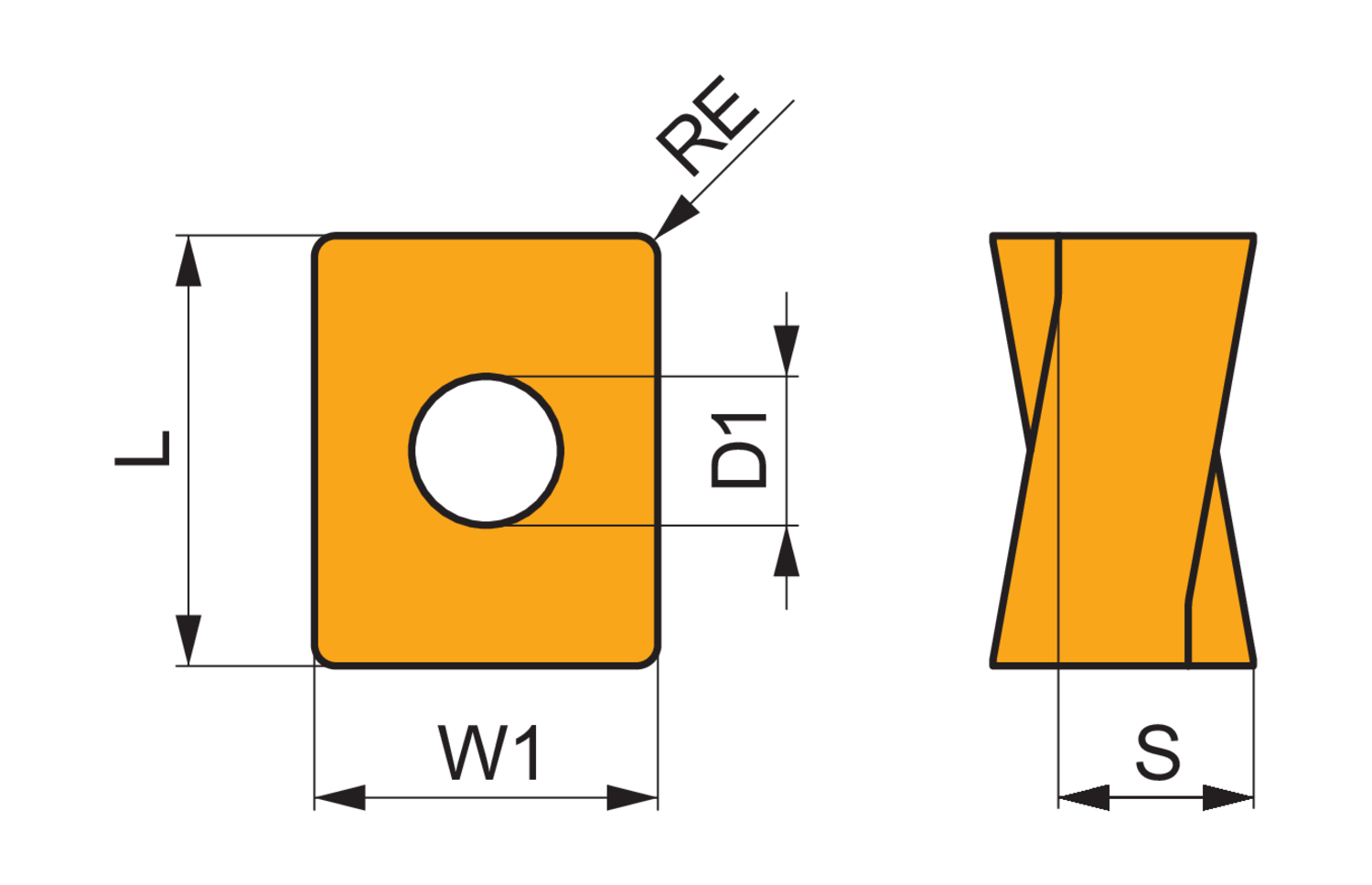

| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 13 |
| Corner Radius (Mm.) | 0.8 |
| Fixing Hole Diameter (Mm.) | 5.7 |
| Insert Thickness (Mm.) | 7.5 |
| Insert Width (Mm.) | 13.2 |
| Max Depth of Cut (In.) | 0.512 |
| Coating | M9325 |
