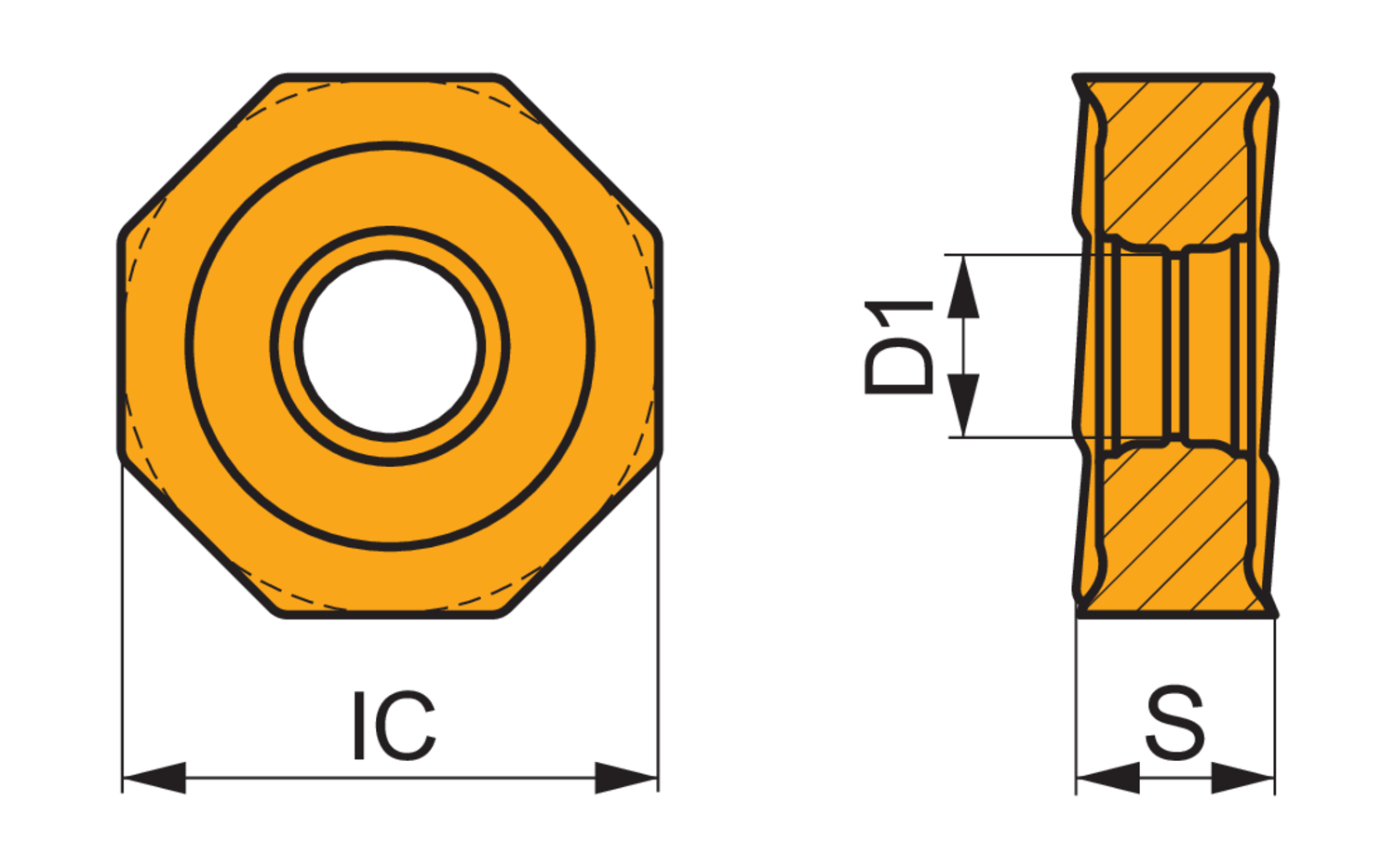

Double-sided milling insert ONMX 0605, octagonal for a maximum depth of cut of 4mm, with 0.8mm corner radius, an indexing accuracy according to ISO-tolerance class-M and R geometry with rounded cutting edges and facet, M5315 MT-CVD coated WC-Co carbide within ISO-grade ranges K05 -K25 and H05 -H20 for machining of cast-iron and hardened material with face mills SON06C

• Product Name ISO: ONMX 060508SR-R:M5315
• Ordering Code ANSI: ONMX 060508SR-R:M5315
• EDP Number: 8348735
• Coating: M5315
• Material Application Priority Usage: H - Hardened materials (any engineering metal with a hardness > 45HRC), K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content)
