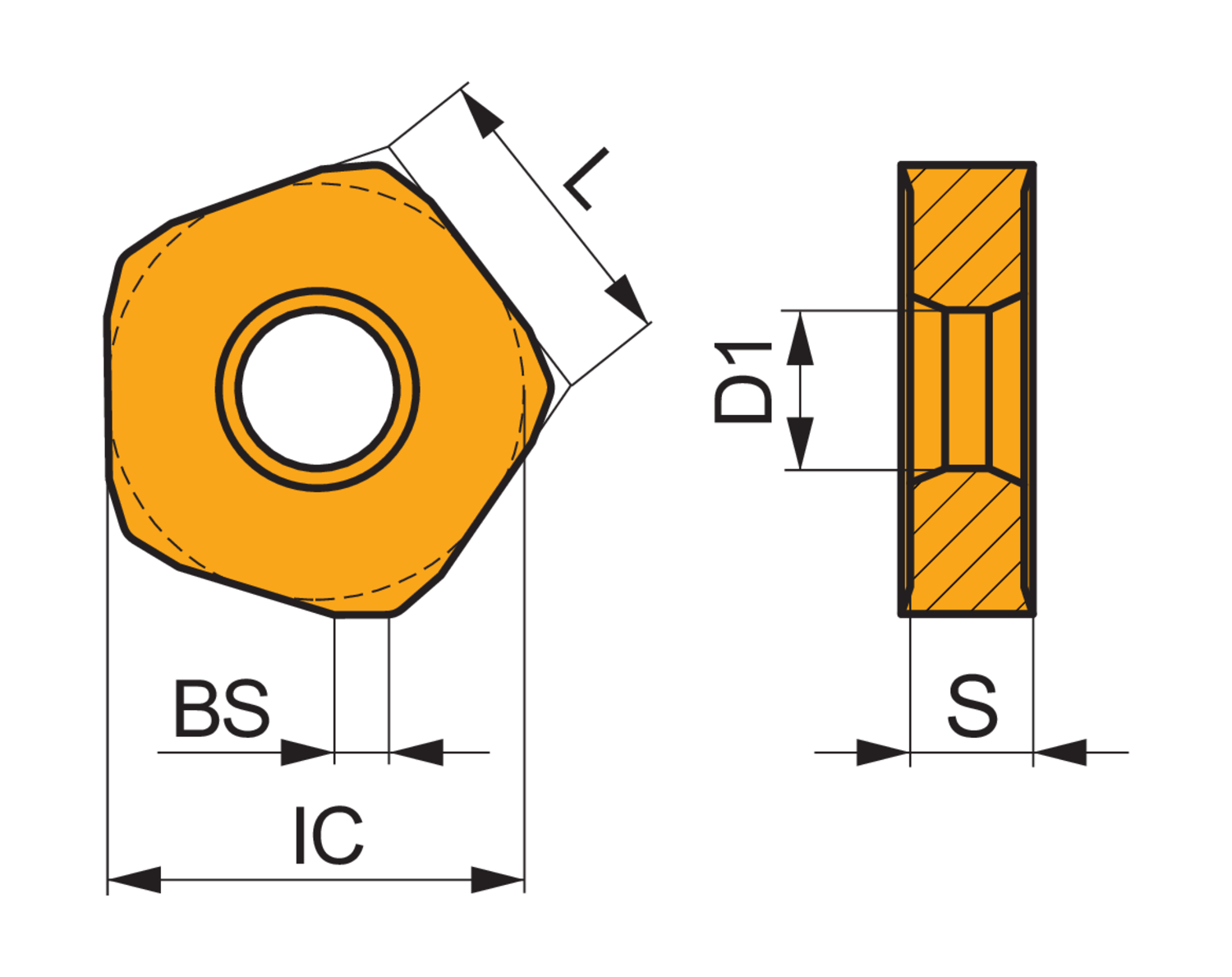

Double-sided milling insert PNMU 1308 with chip-breakers, pentagonal for a maximum depth of cut of .3937", with " corner radius, an indexing accuracy according to ISO-tolerance class-M and M geometry with rounded cutting edges and facet, M9315 MT-CVD coated WC-Co carbide within ISO-grade range P05-P25 for machining of steel with face mills SPN13
- Product Name ISO: PNMU 1308DNSR-M:M9315
- Ordering Code ANSI: PNMU 1308DNSR-M:M9315
- EDP Number: 6922558
- Coating: M9315
- Material Application Priority Usage: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
Quick Ship Items | No, but I will Ship Soon |
Product Measurement Standard | Metric |
Depth of Cut Maximum (Mm.) | 10 |
Fixing Hole Diameter (Mm.) | 10 |
Inscribing Circle Dia. (Mm.) | 24.4 |
Insert Thickness (Mm.) | 7.94 |
Max Depth of Cut (In.) | 0.394 |
Coating | M9315 |
