Single-sided milling insert ADMX 0702, 85° parallelogram for a maximum depth of cut of .1969", with .0157" corner radius, an indexing accuracy according to ISO-tolerance class-M and M geometry with rounded cutting edges and facet, M6330 PVD coated WC-Co carbide within ISO-grade range M20-M35 for machining of stainless-steel with shoulder mills SAD07D
- Product Name ISO: ADMX 070204SR-M:M6330
- Ordering Code ANSI: ADMX 070204SR-M:M6330
- EDP Number: 6925504
- Coating: M6330
- Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)

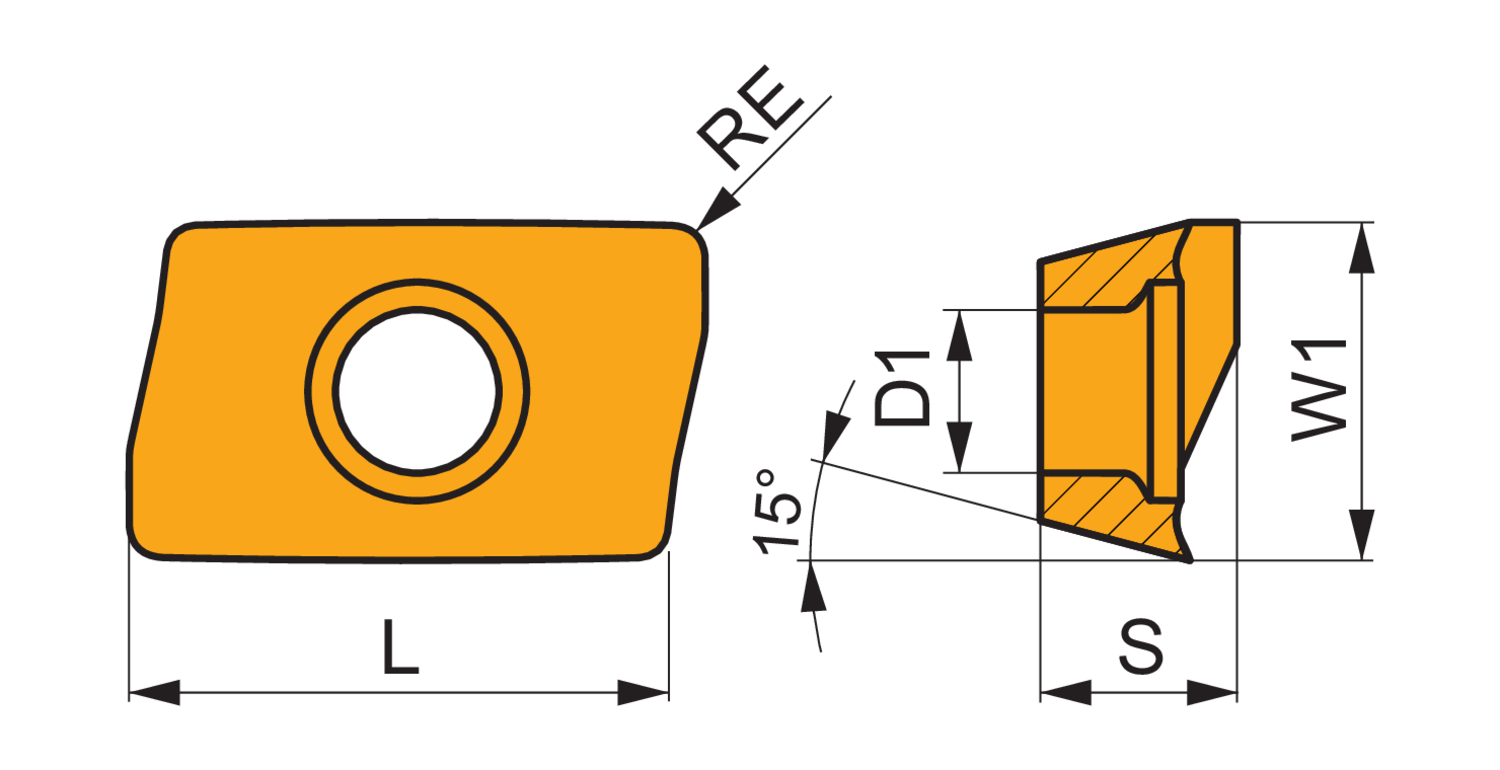

| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 5 |
| Corner Radius (Mm.) | 0.4 |
| Fixing Hole Diameter (Mm.) | 2.2 |
| Insert Thickness (Mm.) | 2.48 |
| Insert Width (Mm.) | 4.482 |
| Max Depth of Cut (In.) | 0.197 |
| Coating | M6330 |
