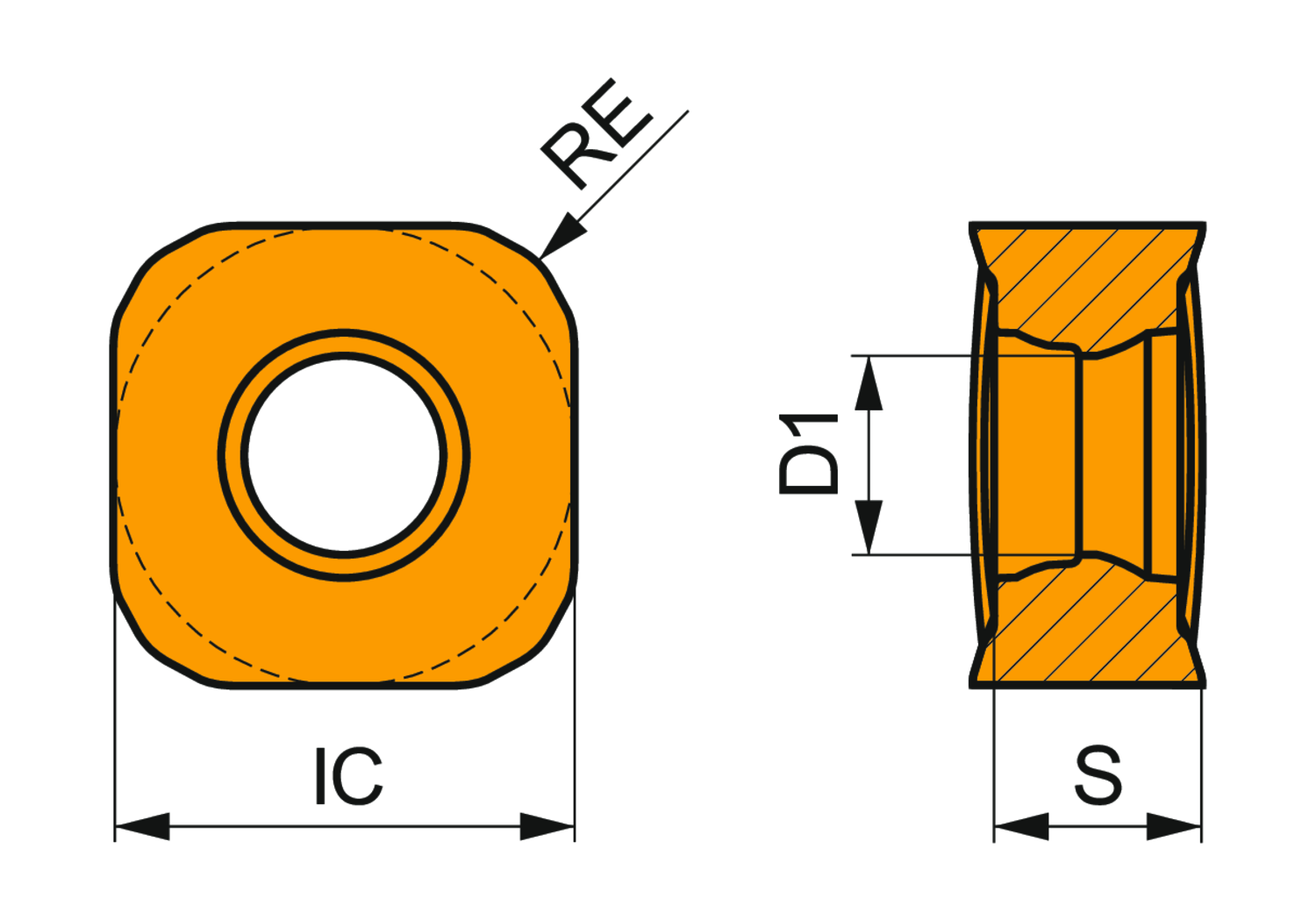

Double-sided milling insert SNGX 1104, square for a maximum depth of cut of 1.7mm, with 1.6mm corner radius, an indexing accuracy according to ISO-tolerance class-G and HM geometry with rounded cutting edges and facet, 8215 PVD coated fine grained WC-Co carbide within ISO-grade ranges P10 -P20/K10 -K25 and H10 -H15 for machining of steel, cast-iron and hardened material with high feed cutters SSN11

• Product Name ISO: SNGX 110416SR-HM:8215
• Ordering Code ANSI: SNGX 110416SR-HM:8215
• EDP Number: 8174569
• Material Application Priority Usage: H - Hardened materials (any engineering metal with a hardness > 45HRC), K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
