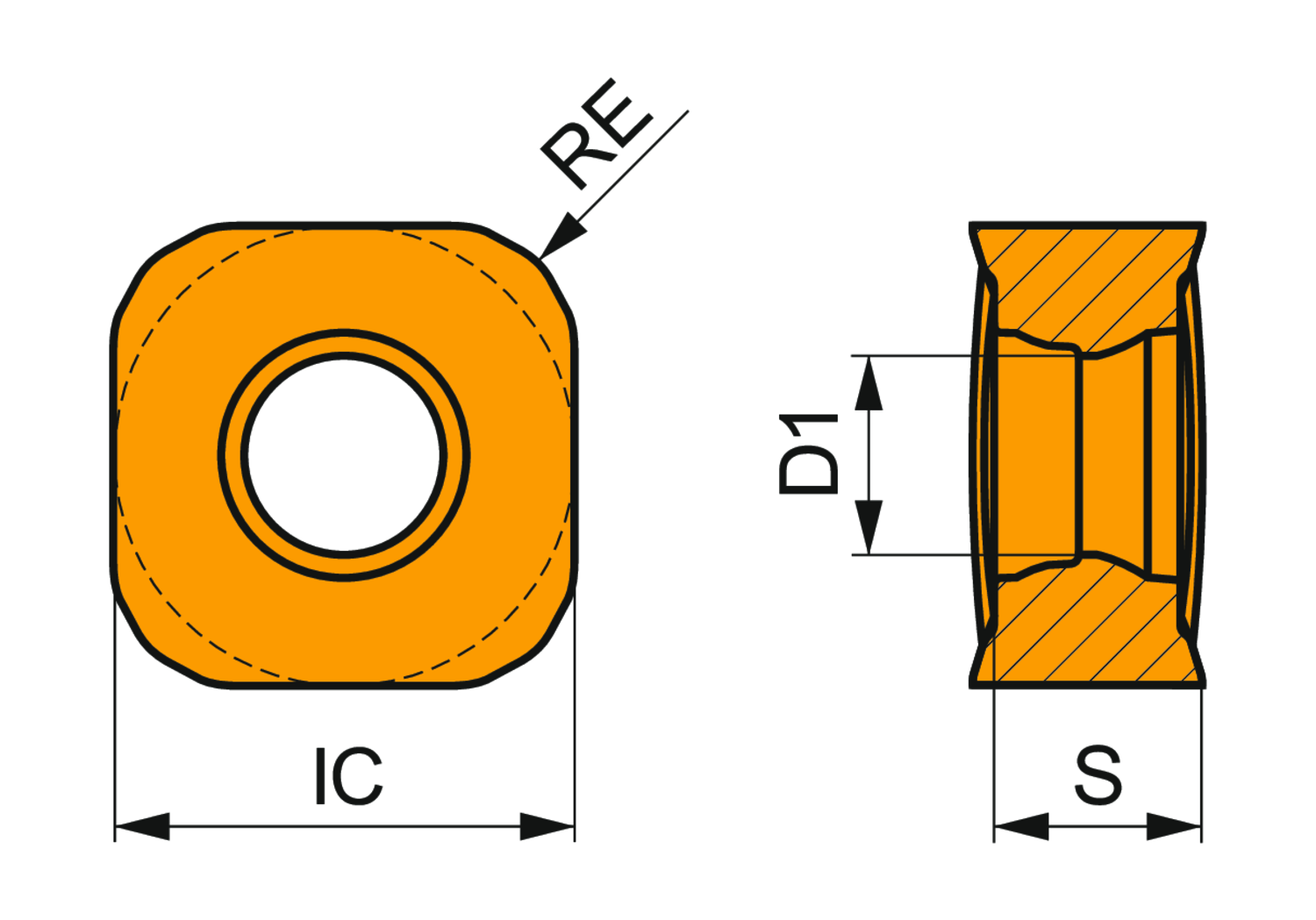

Double-sided milling insert SNGX 1104, square for a maximum depth of cut of 1.7mm, with 1.6mm corner radius, an indexing accuracy according to ISO-tolerance class-G and M geometry with rounded cutting edges and facet, M9325 MT-CVD coated WC-Co carbide within ISO-grade ranges P10 -P30 and K10 -K30 for machining of steel and cast-iron with high feed cutters SSN11

• Product Name ISO: SNGX 110416SR-M:M9325
• Ordering Code ANSI: SNGX 110416SR-M:M9325
• EDP Number: 7799791
• Coating: M9325
• Material Application Priority Usage: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
