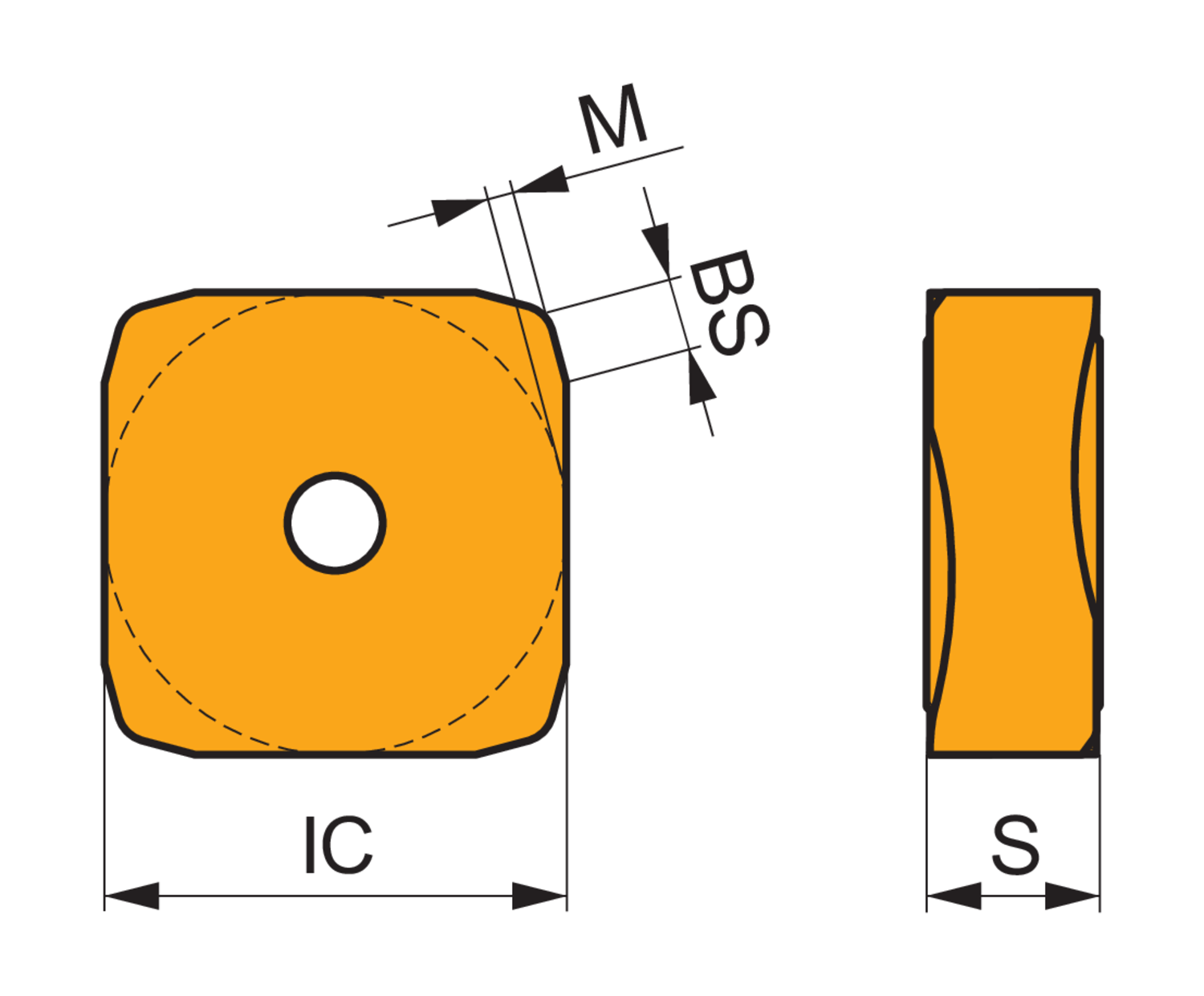

Double-sided milling insert SNHF 1504 with chip-breakers, square for a maximum depth of cut of .3543", with " corner radius, an indexing accuracy according to ISO-tolerance class-H and M geometry with rounded cutting edges and facet, M8340 PVD coated fine grained WC-Co carbide within ISO-grade range P25-P50 for machining of steel
- Product Name ISO: SNHF 1504ENSR-M:M8340
- Ordering Code ANSI: SNHF 53ENSR-M:M8340
- EDP Number: 6800868
- Coating: M8340
- Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 9 |
| Inscribing Circle Dia. (Mm.) | 15.875 |
| Insert Thickness (Mm.) | 4.76 |
| Max Depth of Cut (In.) | 0.354 |
| Coating | M8340 |
