Double-sided milling insert SNUN 1504 with a plane rake surface, square for a maximum depth of cut of .5315", with .0472" corner radius, an indexing accuracy according to ISO-tolerance class-U, M8330 PVD coated fine grained WC-Co carbide within ISO-grade range K20-K40 for machining of cast-iron
- Product Name ISO: SNUN 150412:M8330
- Ordering Code ANSI: SNU 533:M8330
- EDP Number: 7451028
- Coating: M8330
- Material Application Priority Usage: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content)

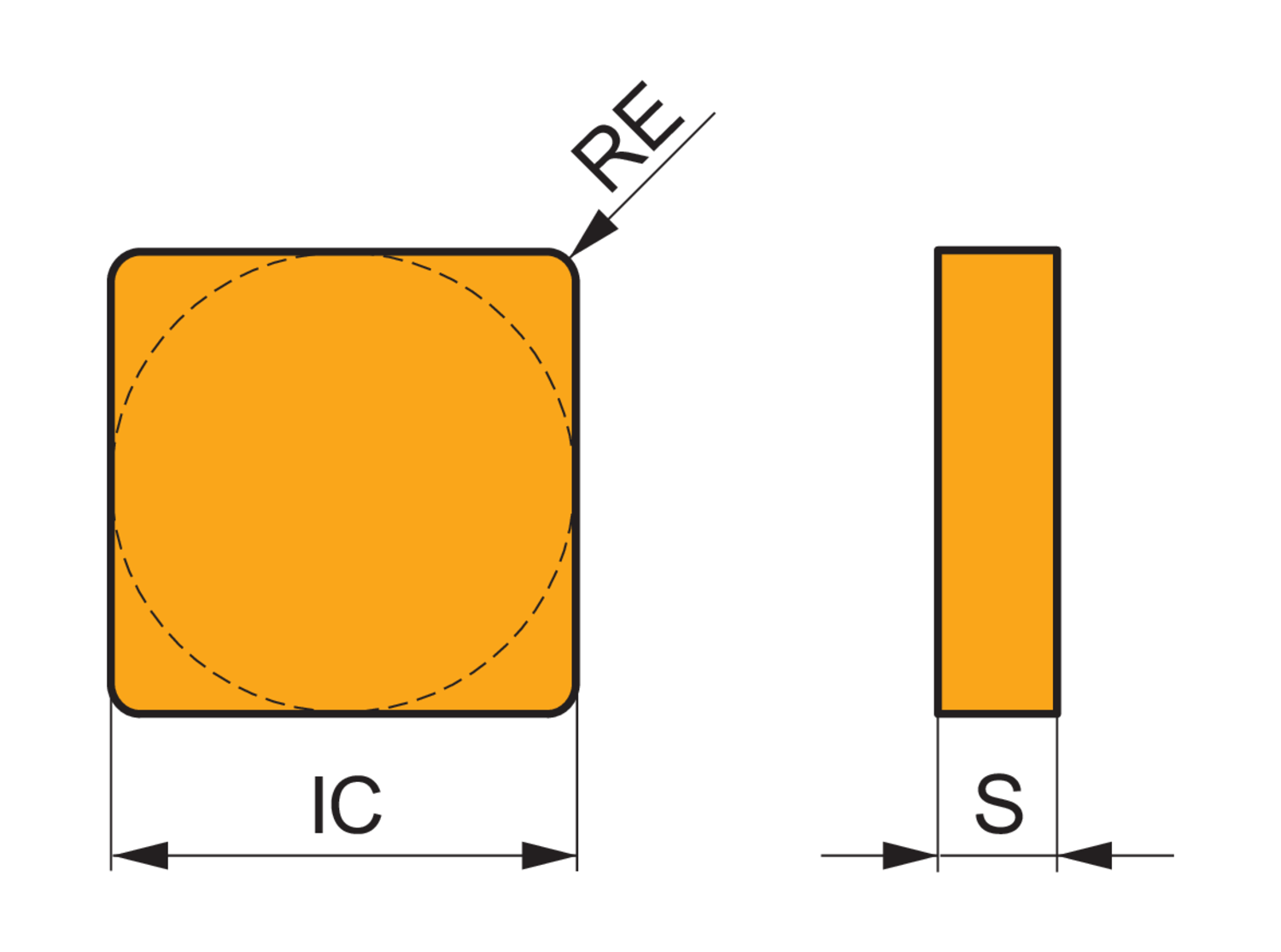

| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 13.5 |
| Corner Radius (Mm.) | 1.2 |
| Inscribing Circle Dia. (Mm.) | 15.875 |
| Insert Thickness (Mm.) | 4.76 |
| Max Depth of Cut (In.) | 0.531 |
| Coating | M8330 |
