Double-sided milling insert TNGX 1004, triangular for a maximum depth of cut of .1575", with .0315" corner radius, an indexing accuracy according to ISO-tolerance class-G and FA geometry with sharp cutting edges, HF7 uncoated fine grained WC-Co carbide within ISO-grade range N10-N25 for machining of non-ferrous metal with shoulder face mills STN10
- Product Name ISO: TNGX 100408FR-FA:HF7
- Ordering Code ANSI: TNGX 100408FR-FA:HF7
- EDP Number: 7178568
- Coating: HF7
- Material Application Priority Usage: N - Non-ferrous metals (metals including alloys without an appreciable amount of iron)

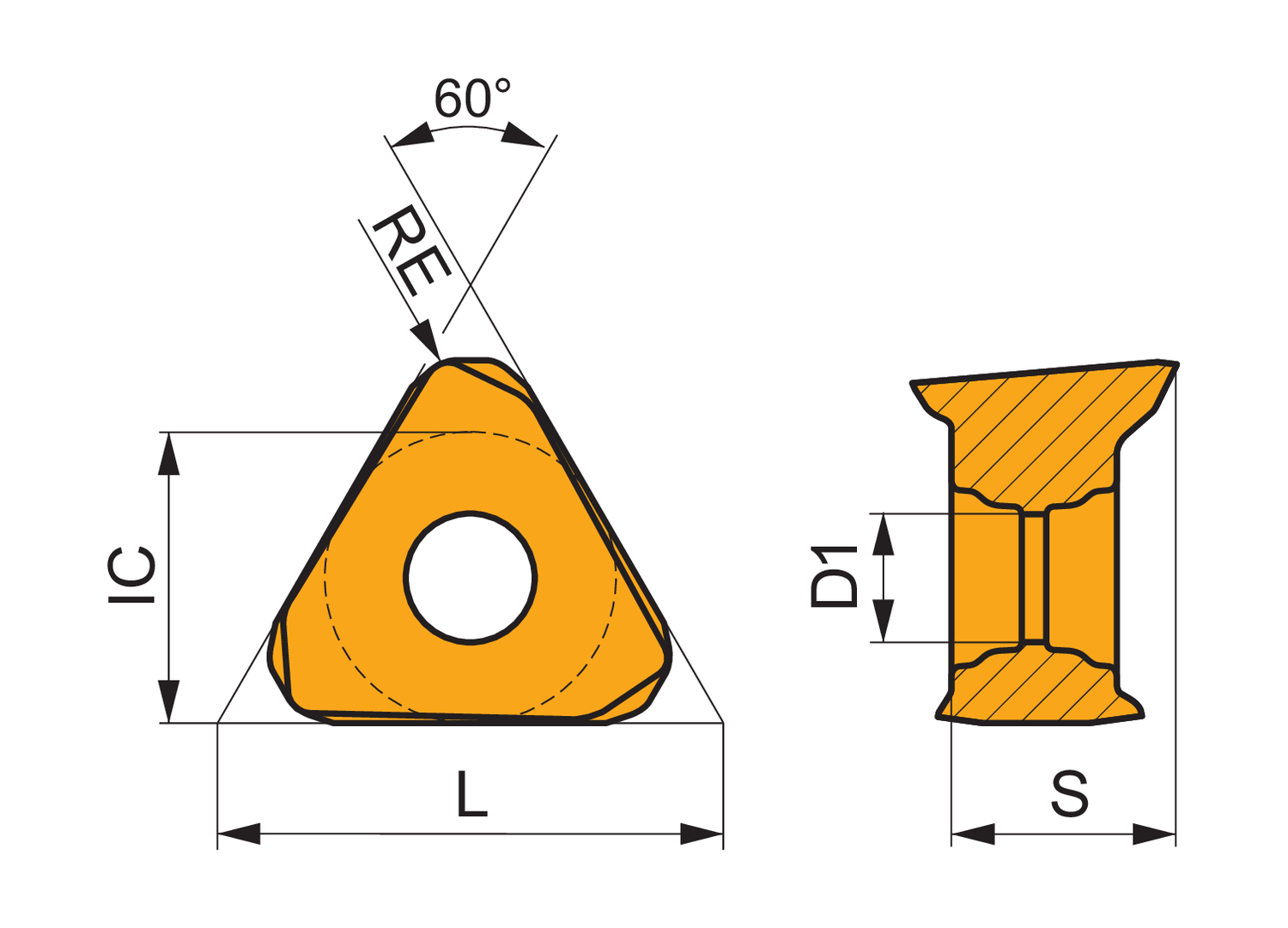

| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 4 |
| Corner Radius (Mm.) | 0.8 |
| Fixing Hole Diameter (Mm.) | 2.8 |
| Inscribing Circle Dia. (Mm.) | 6 |
| Insert Thickness (Mm.) | 4.69 |
| Max Depth of Cut (In.) | 0.157 |
| Coating | HF7 |
