Double-sided milling insert TNGX 1004, triangular for a maximum depth of cut of .1969", with .0157" corner radius, an indexing accuracy according to ISO-tolerance class-G and M geometry with rounded cutting edges and facet, 8215 PVD coated fine grained WC-Co carbide within ISO-grade range P10-P20 for machining of steel with shoulder face mills STN10
- Product Name ISO: TNGX 100404SR-M:8215
- Ordering Code ANSI: TNGX 100404SR-M:8215
- EDP Number: 7178558
- Coating: 8215
- Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)

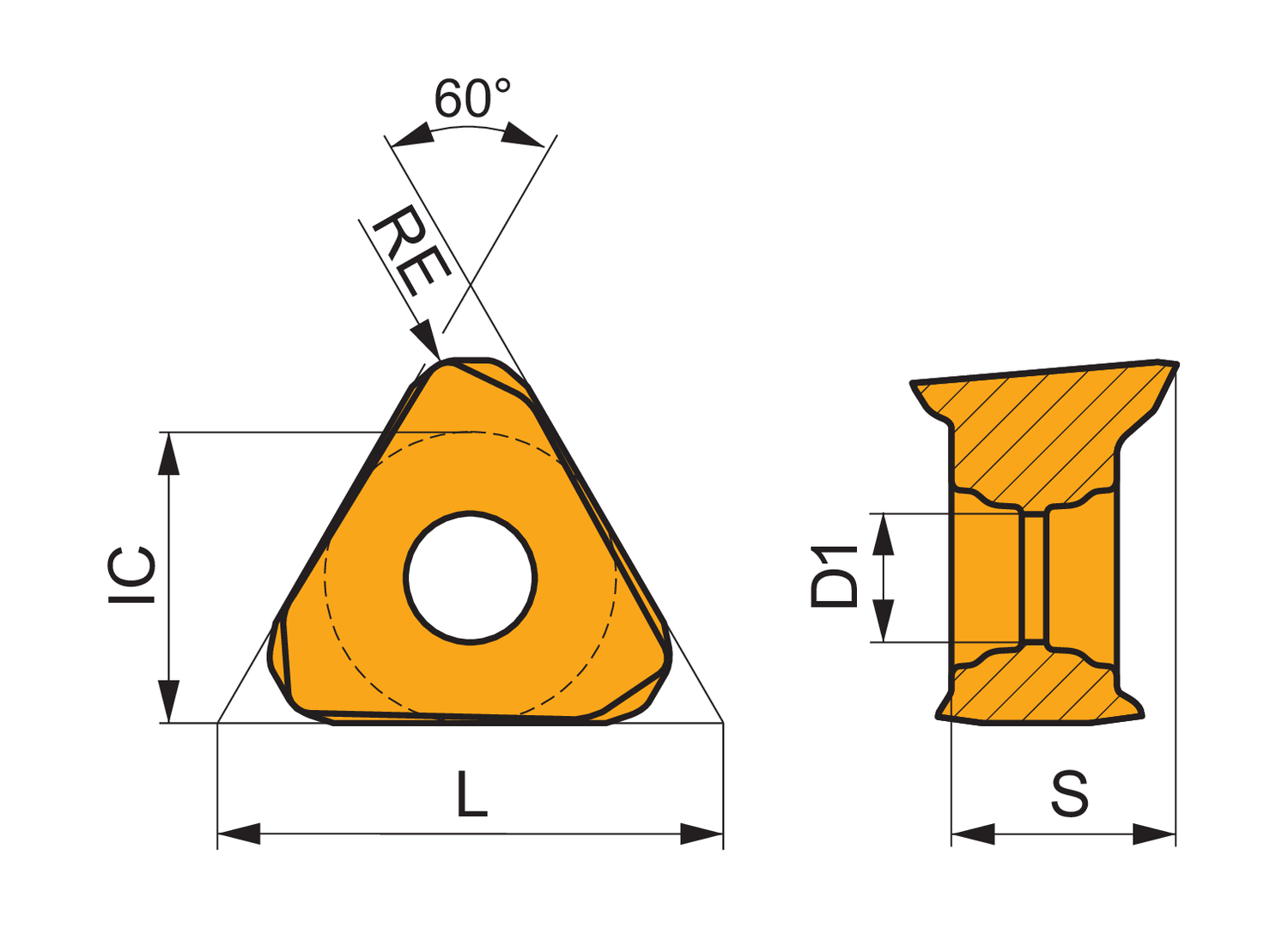

| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 5 |
| Corner Radius (Mm.) | 0.4 |
| Fixing Hole Diameter (Mm.) | 2.8 |
| Inscribing Circle Dia. (Mm.) | 6 |
| Insert Thickness (Mm.) | 4.69 |
| Max Depth of Cut (In.) | 0.197 |
| Coating | 8215 |
