Double-sided milling insert TNGX 1004, triangular for a maximum depth of cut of .1969", with .0315" corner radius, an indexing accuracy according to ISO-tolerance class-G and F geometry with rounded cutting edges and facet, M6330 PVD coated WC-Co carbide within ISO-grade range M20-M35 for machining of stainless-steel with shoulder face mills STN10
- Product Name ISO: TNGX 100408SR-F:M6330
- Ordering Code ANSI: TNGX 100408SR-F:M6330
- EDP Number: 7342922
- Coating: M6330
- Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)

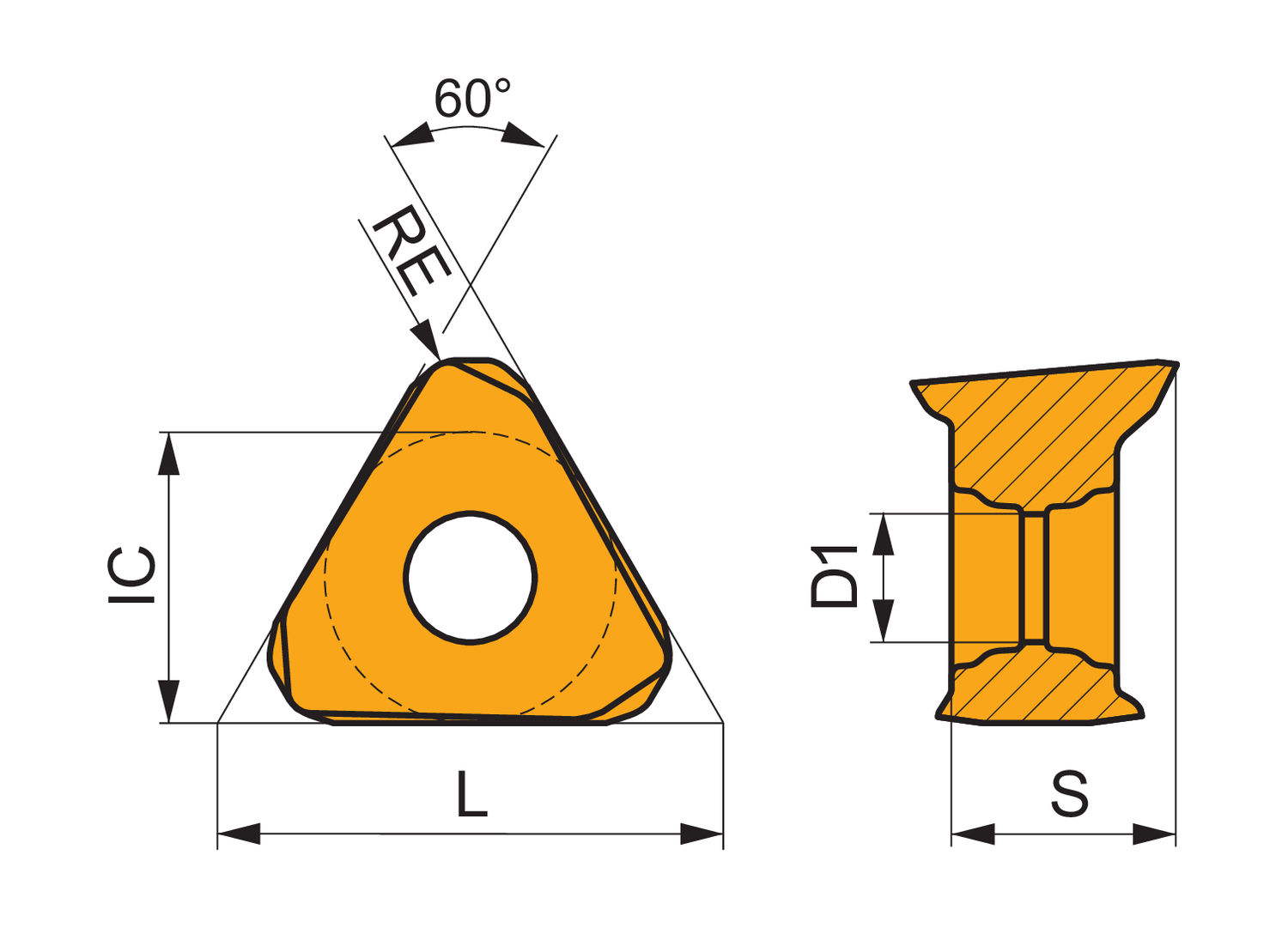

| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 5 |
| Corner Radius (Mm.) | 0.8 |
| Fixing Hole Diameter (Mm.) | 2.8 |
| Inscribing Circle Dia. (Mm.) | 6 |
| Insert Thickness (Mm.) | 4.69 |
| Max Depth of Cut (In.) | 0.197 |
| Coating | M6330 |
