Single-sided milling insert SOMT 0502 with chip-breakers, square for a maximum depth of cut of .1772", with .0157" corner radius, an indexing accuracy according to ISO-tolerance class-M and M geometry with rounded cutting edges and facet, M6330 PVD coated WC-Co carbide within ISO-grade range M20-M35 for machining of stainless-steel with shoulder face mills SSO05O
- Product Name ISO: SOMT 050204SR-M:M6330
- Ordering Code ANSI: SOMT 050204SR-M:M6330
- EDP Number: 7343037
- Coating: M6330
- Material Application Priority Usage: M - Stainless steel (corrosion resistant steels with = 11% chromium content), P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)

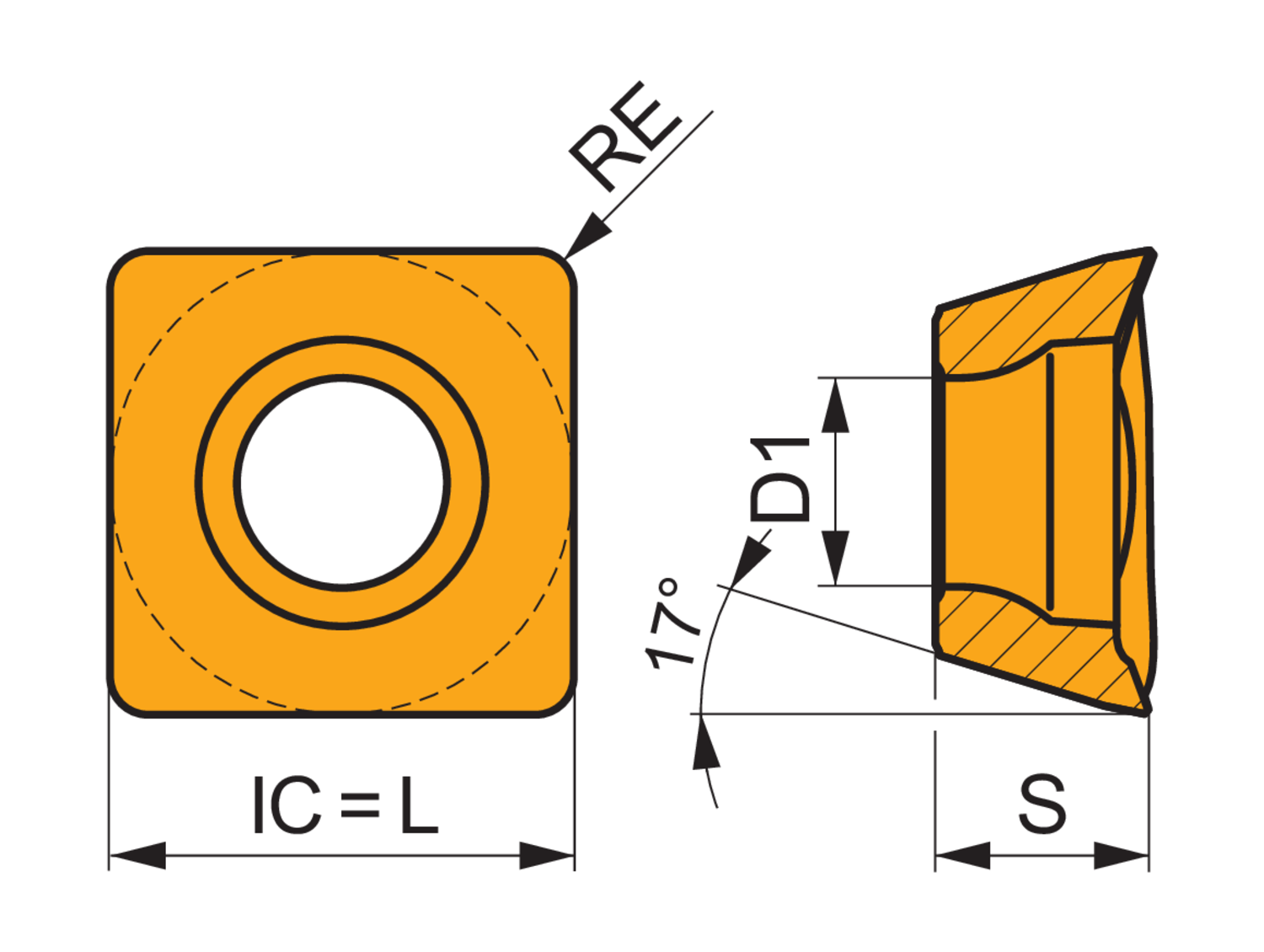

| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 4.5 |
| Corner Radius (Mm.) | 0.4 |
| Fixing Hole Diameter (Mm.) | 2.5 |
| Inscribing Circle Dia. (Mm.) | 5.57 |
| Insert Thickness (Mm.) | 2.63 |
| Max Depth of Cut (In.) | 0.177 |
| Coating | M6330 |
