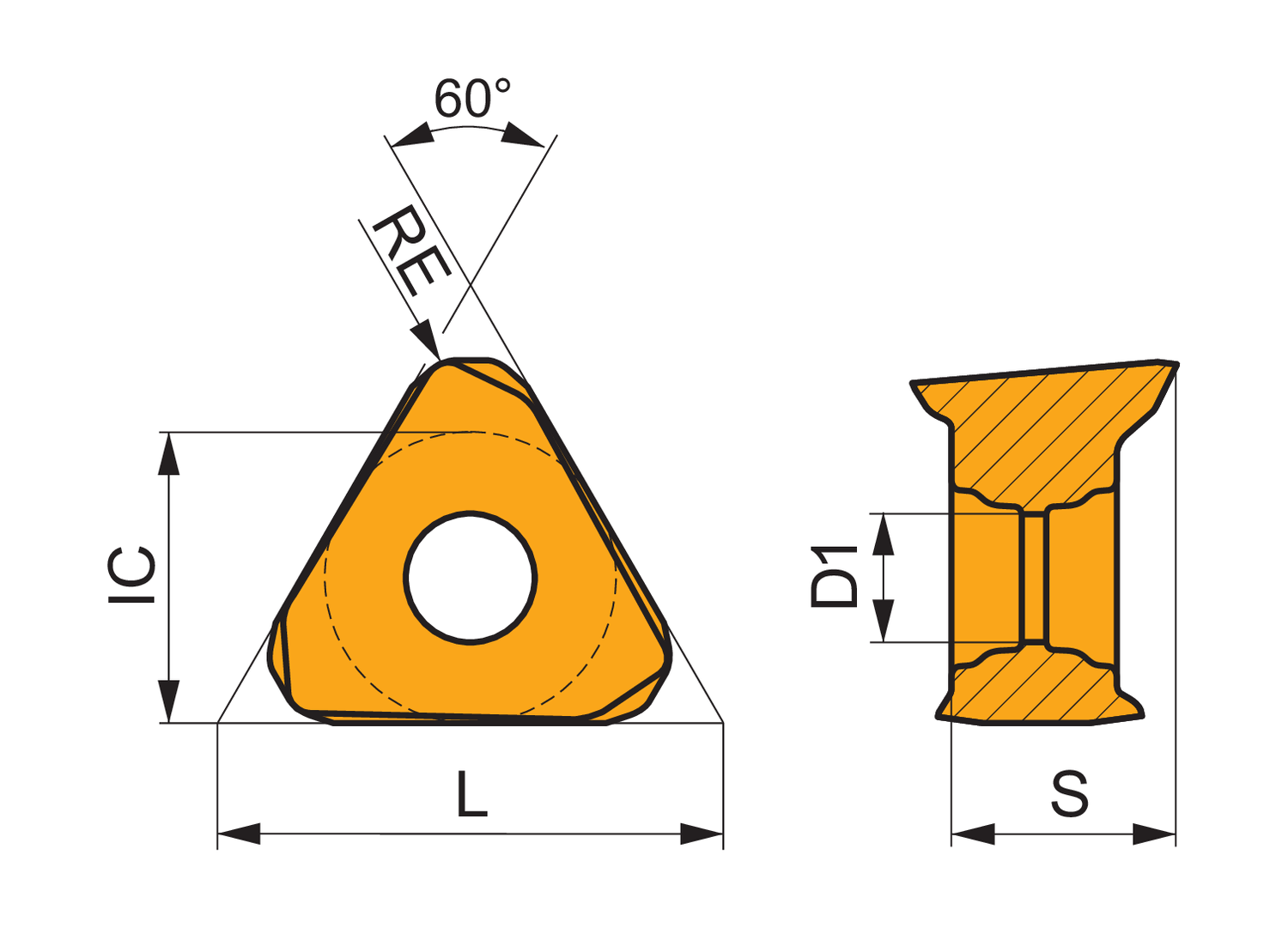

Double-sided milling insert TNGX 1606, triangular for a maximum depth of cut of 10.0mm, with 0.4mm corner radius, an indexing accuracy according to ISO-tolerance class-G and M geometry with rounded cutting edges and facet, 8215 PVD coated fine grained WC-Co carbide within ISO-grade range P10 -P20 for machining of steel with shoulder face mills STN16

• Product Name ISO: TNGX 160604SR-M:8215
• Ordering Code ANSI: TNGX 160604SR-M:8215
• EDP Number: 8019943
• Coating: 8215
• Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
