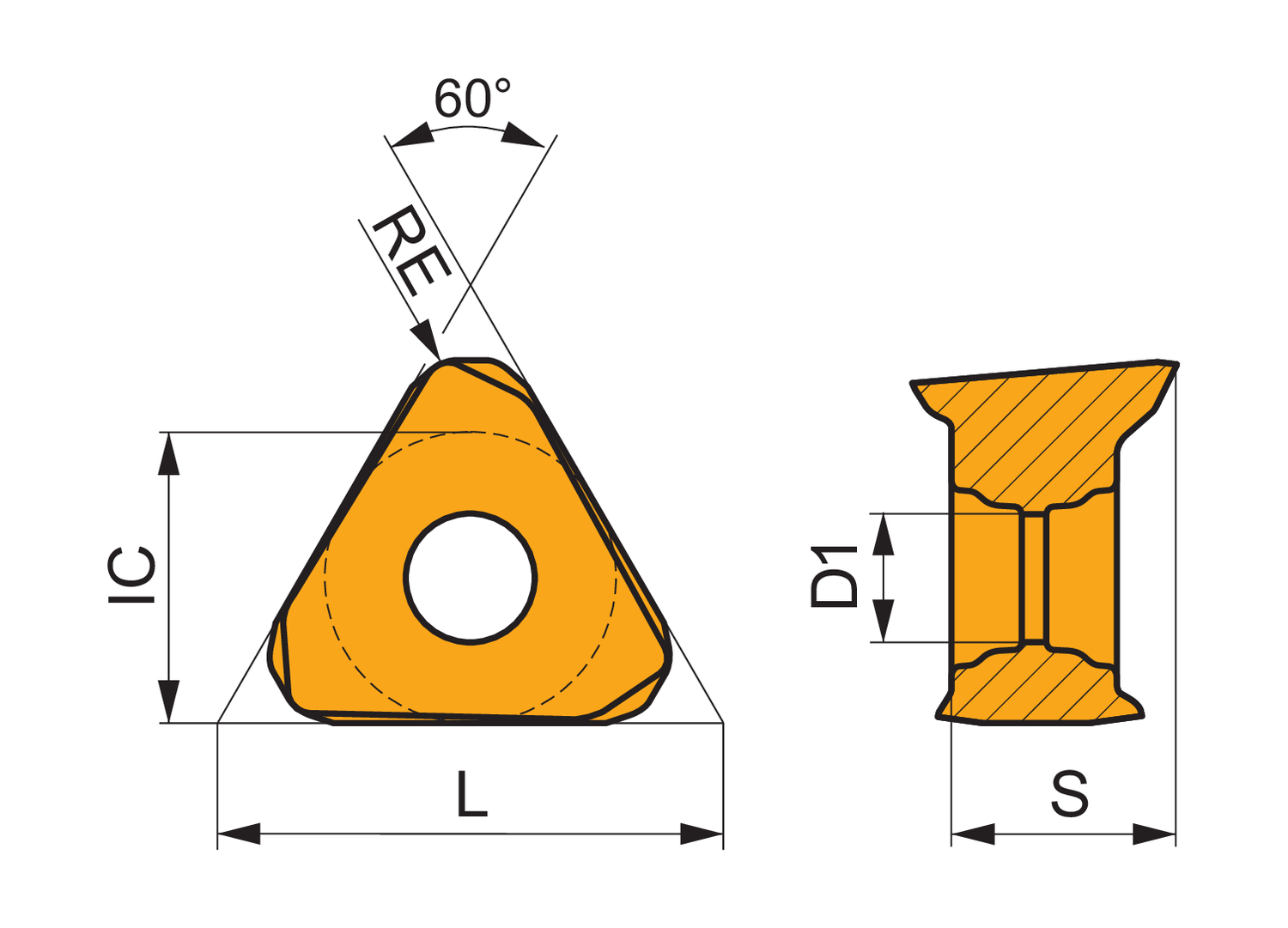

Double-sided milling insert TNGX 1606, triangular for a maximum depth of cut of 10.0mm, with 0.8mm corner radius, an indexing accuracy according to ISO-tolerance class-G and FA geometry with sharp cutting edges, HF7 uncoated fine grained WC-Co carbide within ISO-grade range N10 -N25 for machining of non-ferrous metal with shoulder face mills STN16

• Product Name ISO: TNGX 160608FR-FA:HF7
• Ordering Code ANSI: TNGX 160608FR-FA:HF7
• EDP Number: 8020828
• Coating: HF7
• Material Application Priority Usage: N - Non-ferrous metals (metals including alloys without an appreciable amount of iron)
