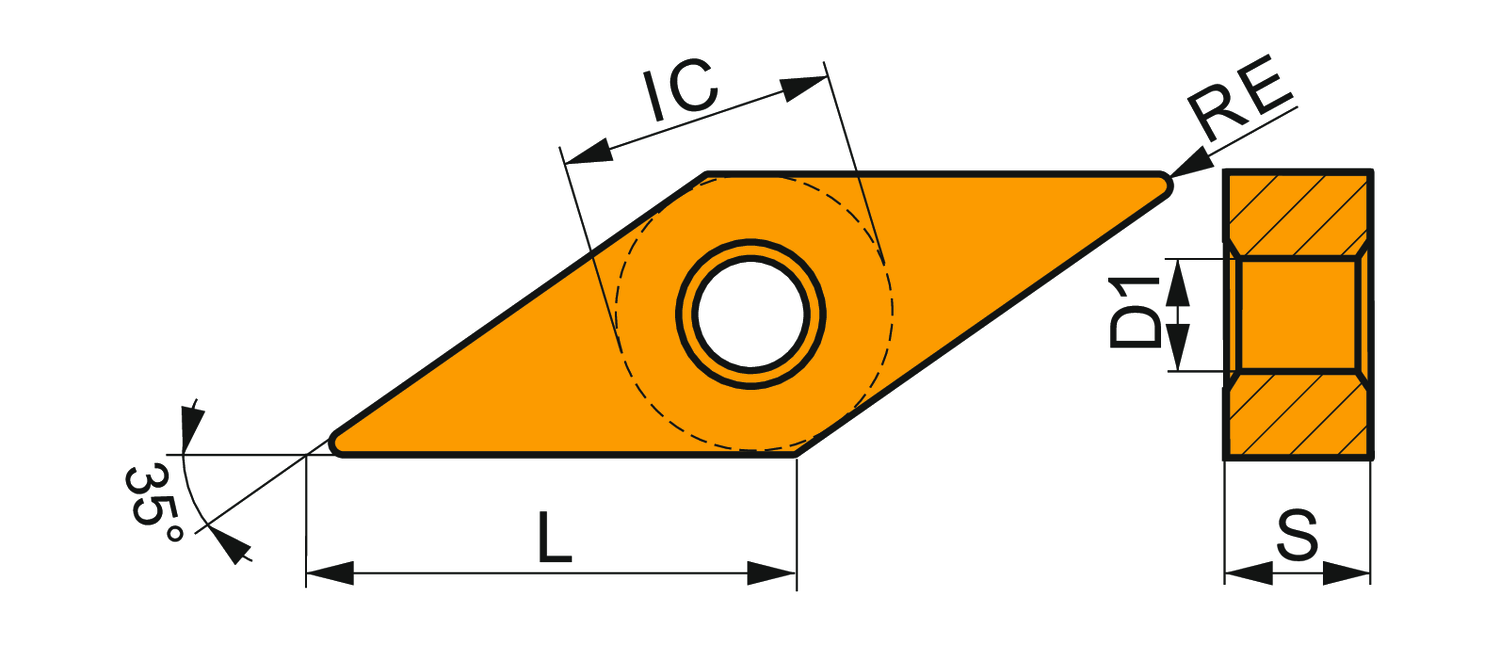

Double-sided negative turning insert, 35° rhomboid with inscribed circle diameter of 3/8", 3/16" thick, 1/64" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker NM, in grade T8315, a PVD coated fine grained WC-Co carbide within ISO range M05-M20, for fine to heavy machining of stainless-steels
- Product Name ISO: VNMG 160404E-NM:T8315
- Ordering Code ANSI: VNMG 331-NM:T8315
- EDP Number: 6922678
- Coating: T8315
- Material Application Priority Usage: M - Stainless steel (corrosion resistant steels with = 11% chromium content)
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 3 |
| Corner Radius (Mm.) | 0.4 |
| Fixing Hole Diameter (Mm.) | 3.81 |
| Inscribing Circle Dia. (Mm.) | 9.525 |
| Insert Thickness (Mm.) | 4.76 |
| Max Depth of Cut (In.) | 0.118 |
| Insert Geometry | Negative |
| Coating | T8315 |
