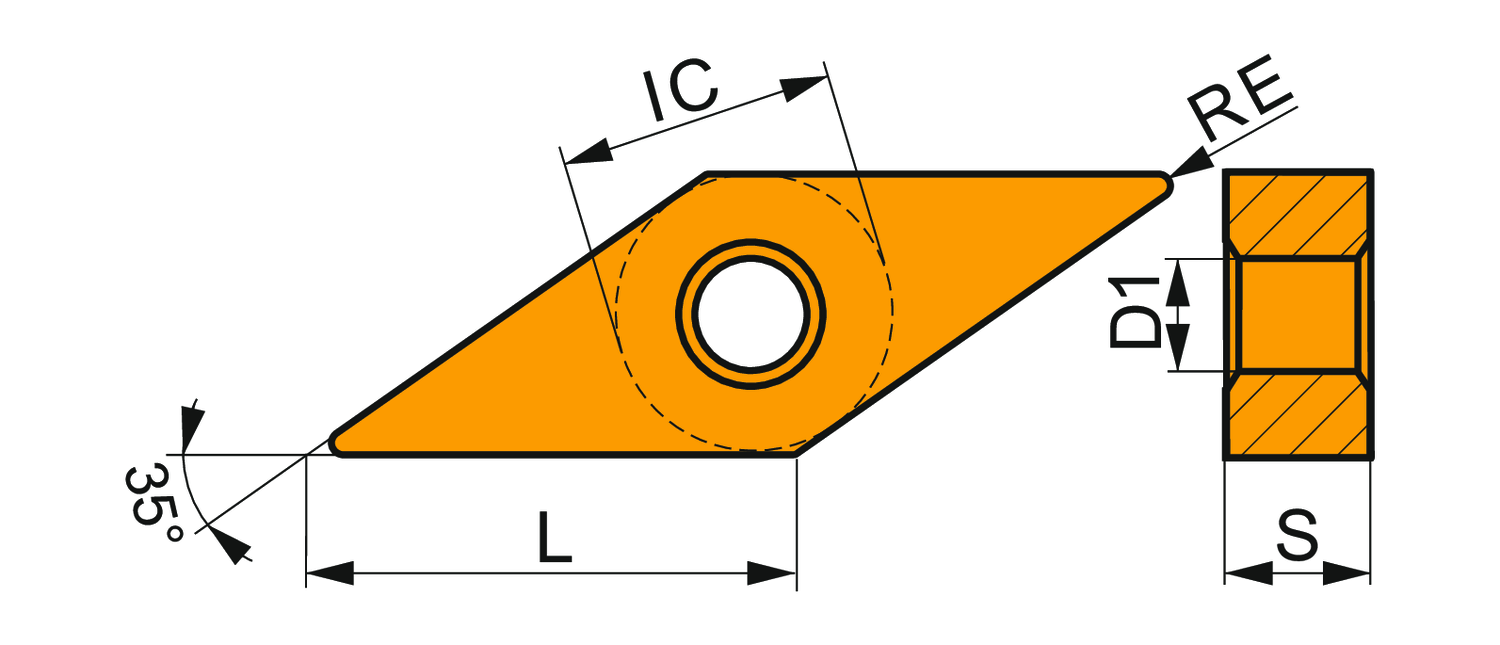

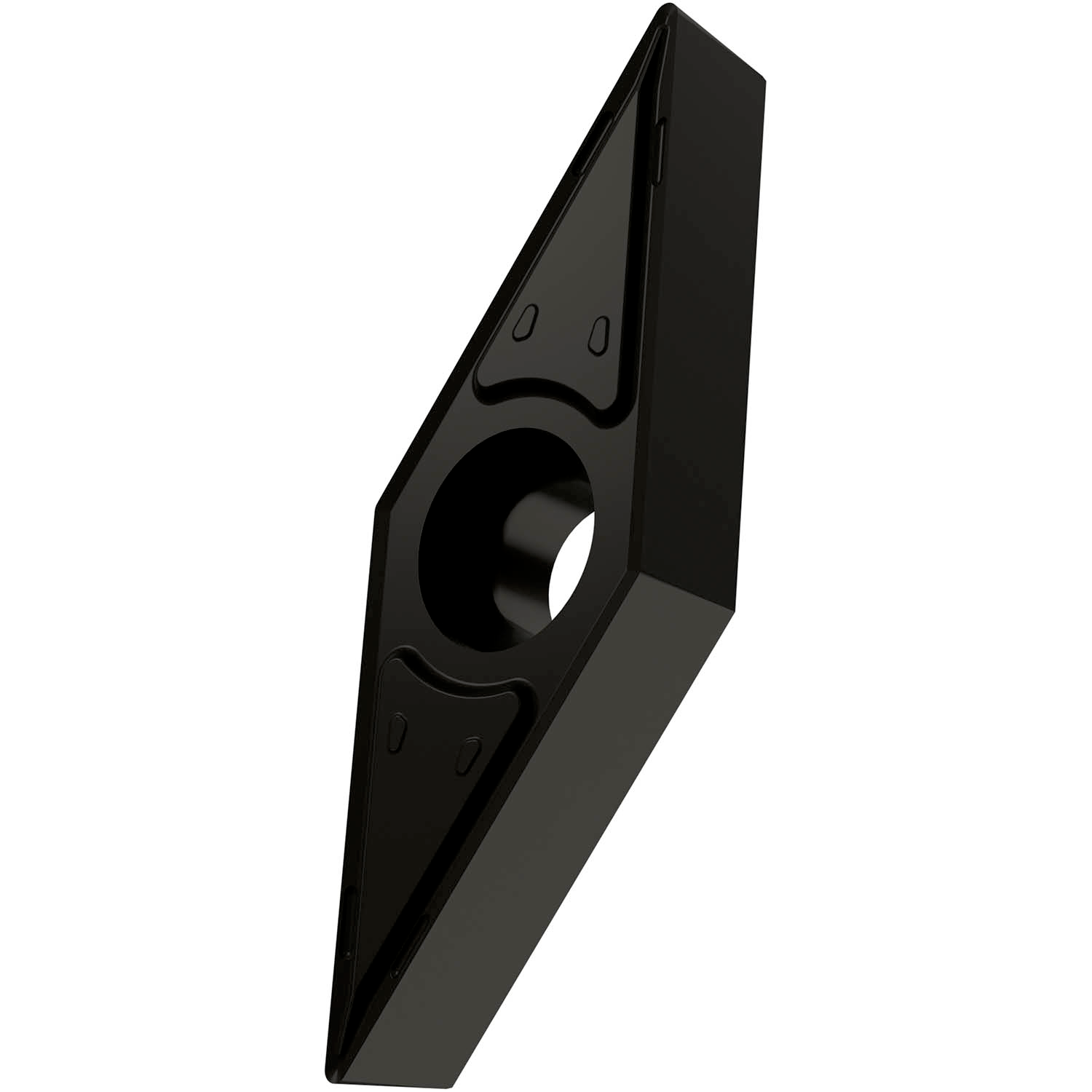

Double-sided negative turning insert, 35° rhomboid with inscribed circle diameter of 3/8", 3/16" thick, 1/64" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker M, in grade T9325, a MT-CVD coated functionally graded WC-Co carbide within ISO range P15-P35, for fine to heavy machining of steels
- Product Name ISO: VNMG 160404E-M:T9325
- Ordering Code ANSI: VNMG 331-M:T9325
- EDP Number: 6754435
- Coating: T9325
- Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 3 |
| Corner Radius (Mm.) | 0.4 |
| Fixing Hole Diameter (Mm.) | 3.81 |
| Inscribing Circle Dia. (Mm.) | 9.525 |
| Insert Thickness (Mm.) | 4.76 |
| Max Depth of Cut (In.) | 0.118 |
| Insert Geometry | Negative |
| Coating | T9325 |
