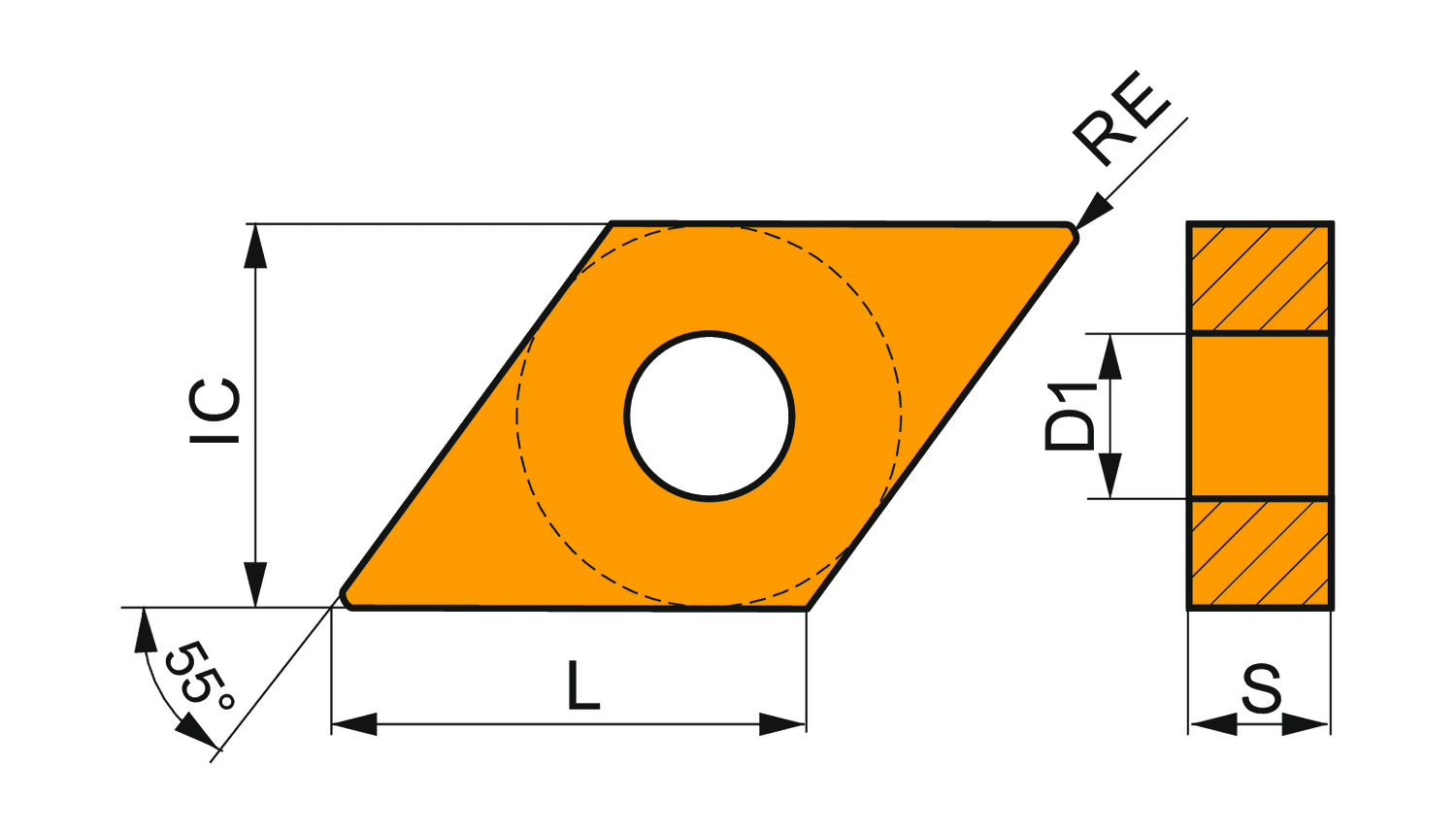

Double-sided negative turning insert, 55° rhomboid with inscribed circle diameter of 1/2", 1/4" thick, 1/32" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker RM, in grade T8315, a PVD coated fine grained WC-Co carbide within ISO ranges M05-M20 and K05-K25, for medium to heavy machining of stainless-steels and cast-irons
- Product Name ISO: DNMG 150608E-RM:T8315
- Ordering Code ANSI: DNMG 442-RM:T8315
- EDP Number: 6753611
- Coating: T8315
- Material Application Priority Usage: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content), M - Stainless steel (corrosion resistant steels with = 11% chromium content)
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 4.5 |
| Corner Radius (Mm.) | 0.8 |
| Fixing Hole Diameter (Mm.) | 5.16 |
| Inscribing Circle Dia. (Mm.) | 12.7 |
| Insert Thickness (Mm.) | 6.35 |
| Max Depth of Cut (In.) | 0.177 |
| Insert Geometry | Negative |
| Coating | T8315 |
