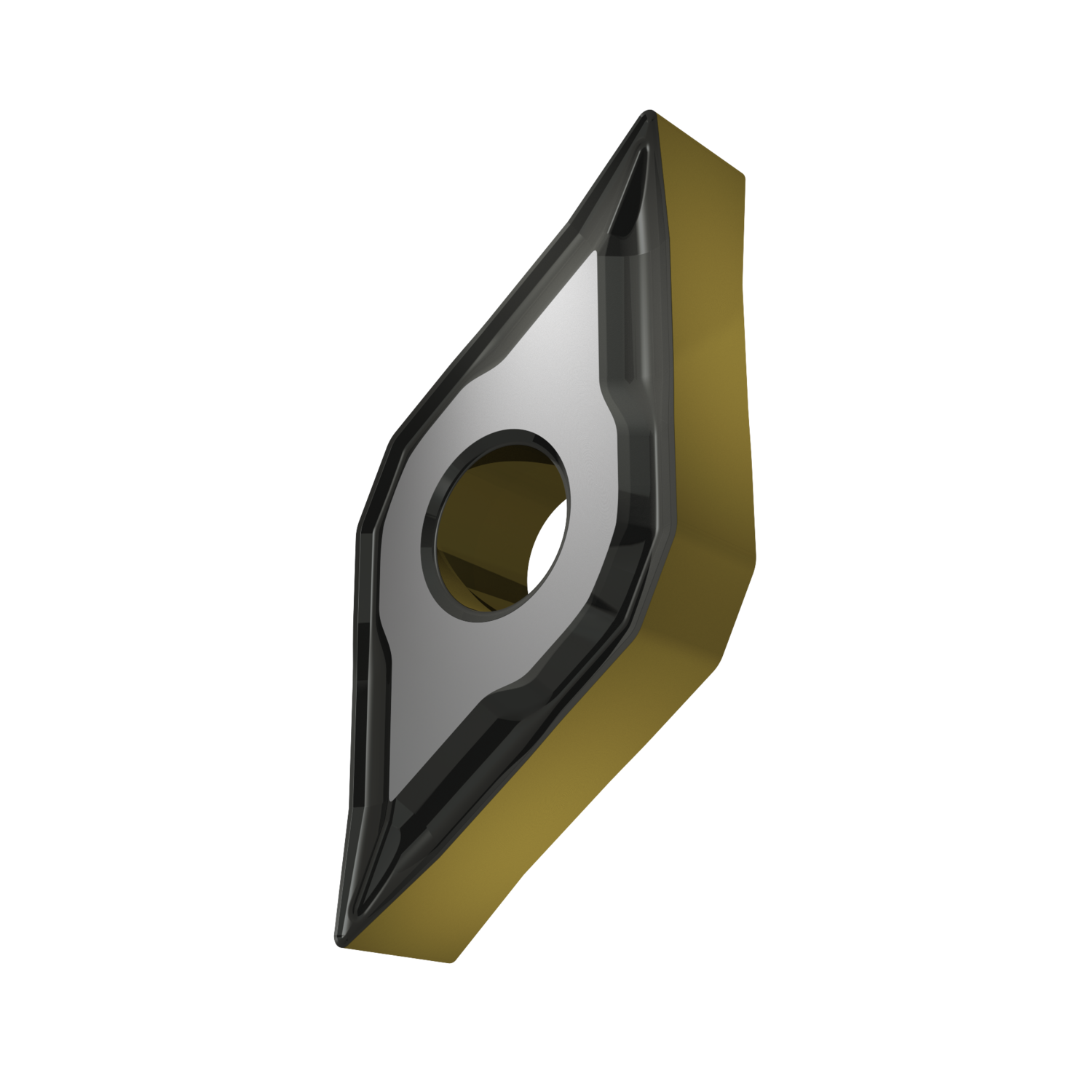

Double-sided negative turning insert, 55° rhomboid with inscribed circle diameter of 1/2", 3/16" thick, 1/64" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker NF, in grade T9415, a MT-CVD coated functionally graded WC-Co carbide within ISO range P05 - P30, for fine to medium machining of steels
- Product Name ISO: DNMG 150404E-NF:T9415
- Ordering Code ANSI: DNMG 431-NF:T9415
- EDP Number: 8345549
- Coating: T9415
- Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Metric |
| Corner Radius (Mm.) | 0.4 |
| Fixing Hole Diameter (Mm.) | 5.16 |
| Inscribing Circle Dia. (Mm.) | 12.7 |
| Insert Thickness (Mm.) | 4.76 |
| Insert Geometry | Negative |
| Coating | T9415 |
