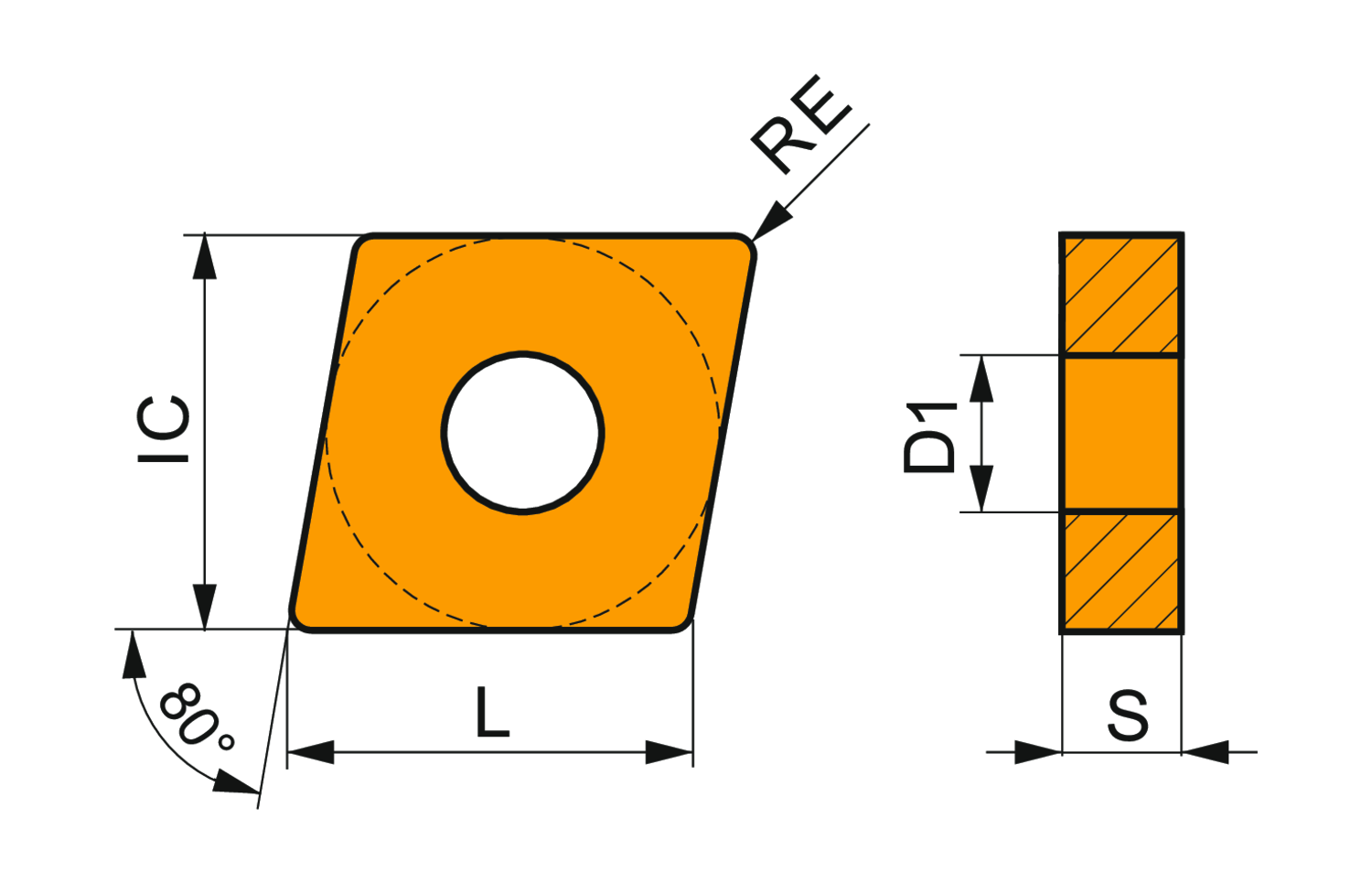

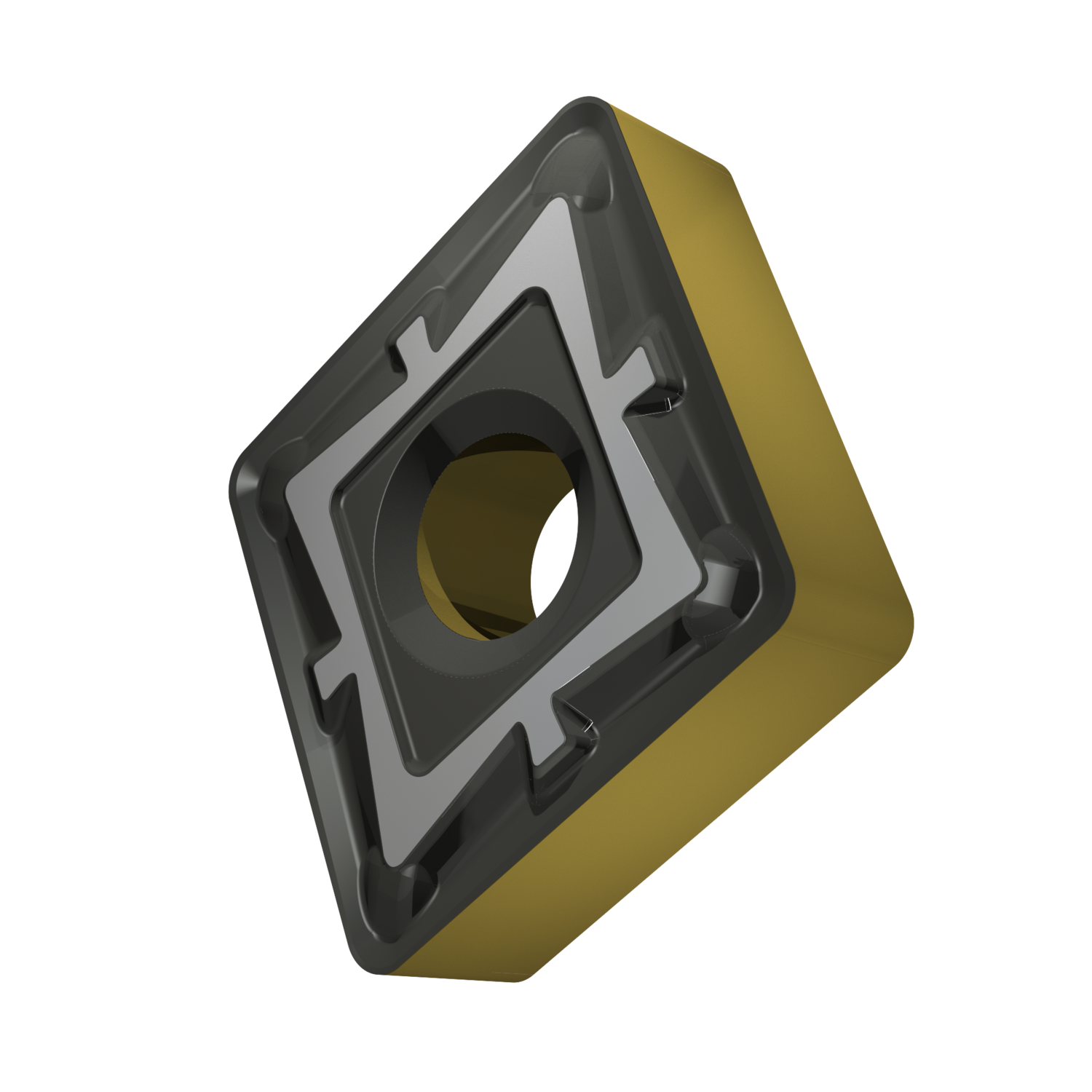

Double-sided negative turning insert, 80° rhomboid with inscribed circle diameter of 3/4", 1/4" thick, 1/16" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker M, in grade T9415, a MT-CVD coated functionally graded WC-Co carbide within ISO range P05 - P30, for fine to heavy machining of steels

• Product Name ISO: CNMG 190616E-M:T9415
• Ordering Code ANSI: CNMG 644-M:T9415
• EDP Number: 8345530
• Coating: T9415
• Material Application Priority Usage: P - Steel and cast steel (steels with alloy content = 10% and a hardness of < 45HRC)
