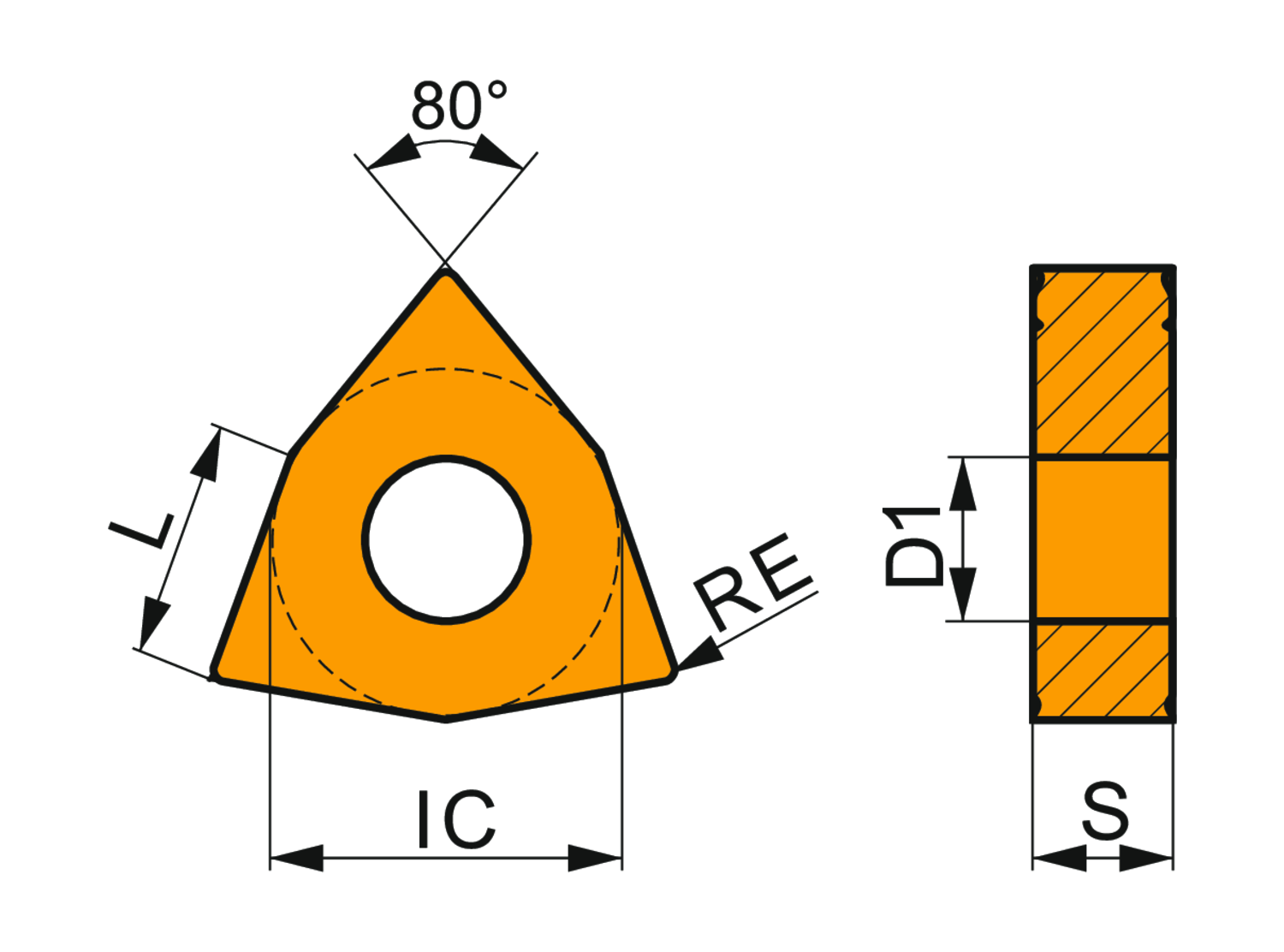

Double-sided negative turning insert, 80° trigon with inscribed circle diameter of 1/2", 3/16" thick, 1/32" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker FM, in grade T8315, a PVD coated fine grained WC-Co carbide within ISO range K05 - K25, for fine to medium machining of cast-irons
- Product Name ISO: WNMG 080408E-FM:T8315
- Ordering Code ANSI: WNMG 432-FM:T8315
- EDP Number: 6753645
- Coating: T8315
- Material Application Priority Usage: K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content)
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 3 |
| Corner Radius (Mm.) | 0.8 |
| Fixing Hole Diameter (Mm.) | 5.16 |
| Inscribing Circle Dia. (Mm.) | 12.7 |
| Insert Thickness (Mm.) | 4.76 |
| Max Depth of Cut (In.) | 0.118 |
| Insert Geometry | Negative |
| Coating | T8315 |
