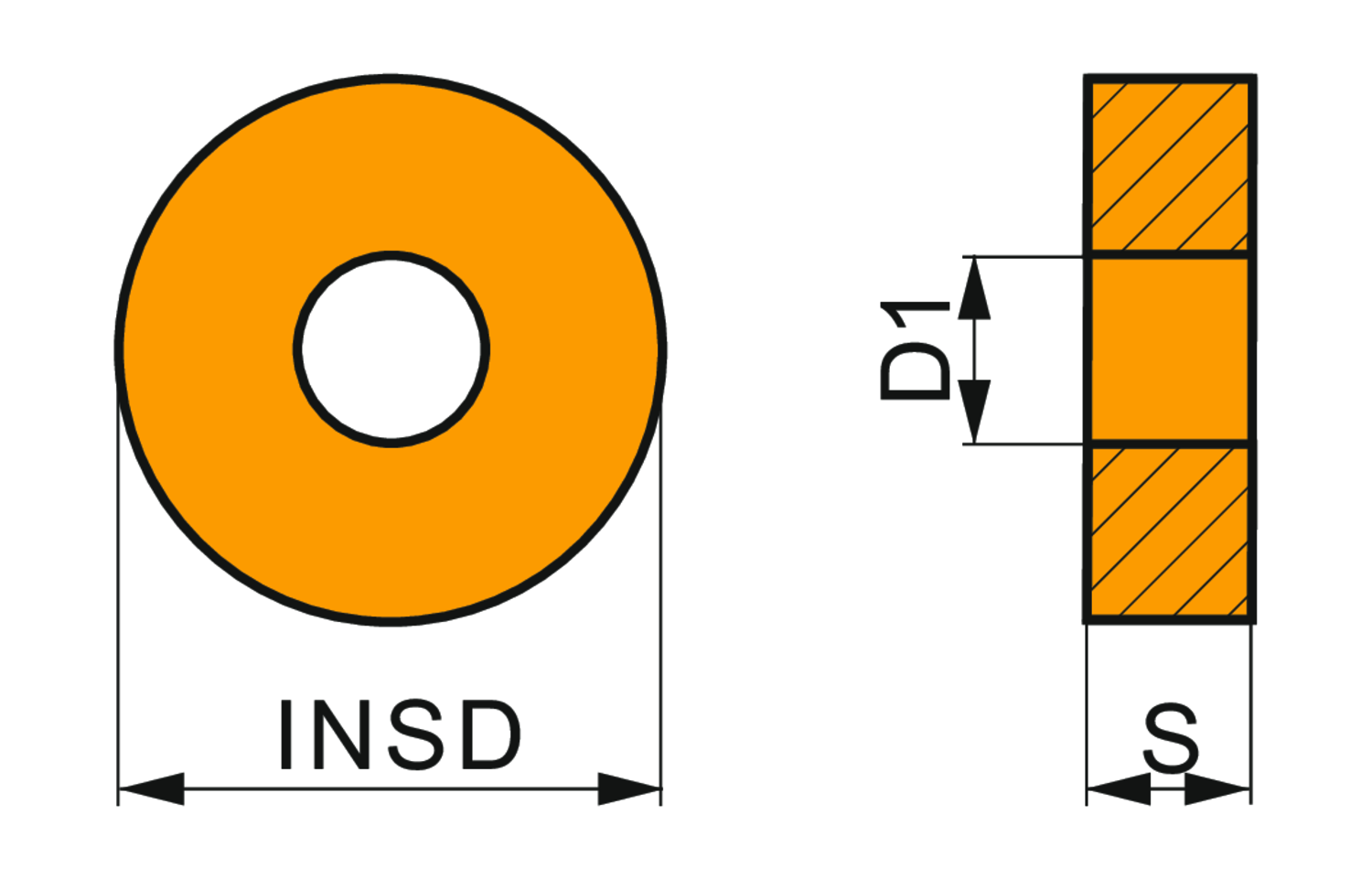

Double-sided negative turning insert, round with a diameter of 1", 3/8" thick, indexing accuracy according to ISO-tolerance class- M, chip-breaker 081, in grade T9325, a MT-CVD coated functionally graded WC-Co carbide, for heavy to medium machining
- Product Name ISO: RNMG 250900E-081:T9325
- Ordering Code ANSI: RNMG 86-081:T9325
- EDP Number: 6753997
- Coating: T9325
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 7 |
| Fixing Hole Diameter (Mm.) | 9.12 |
| Insert Dia. (Mm.) | 25.4 |
| Insert Thickness (Mm.) | 9.525 |
| Max Depth of Cut (In.) | 0.276 |
| Insert Geometry | Negative |
| Coating | T9325 |
