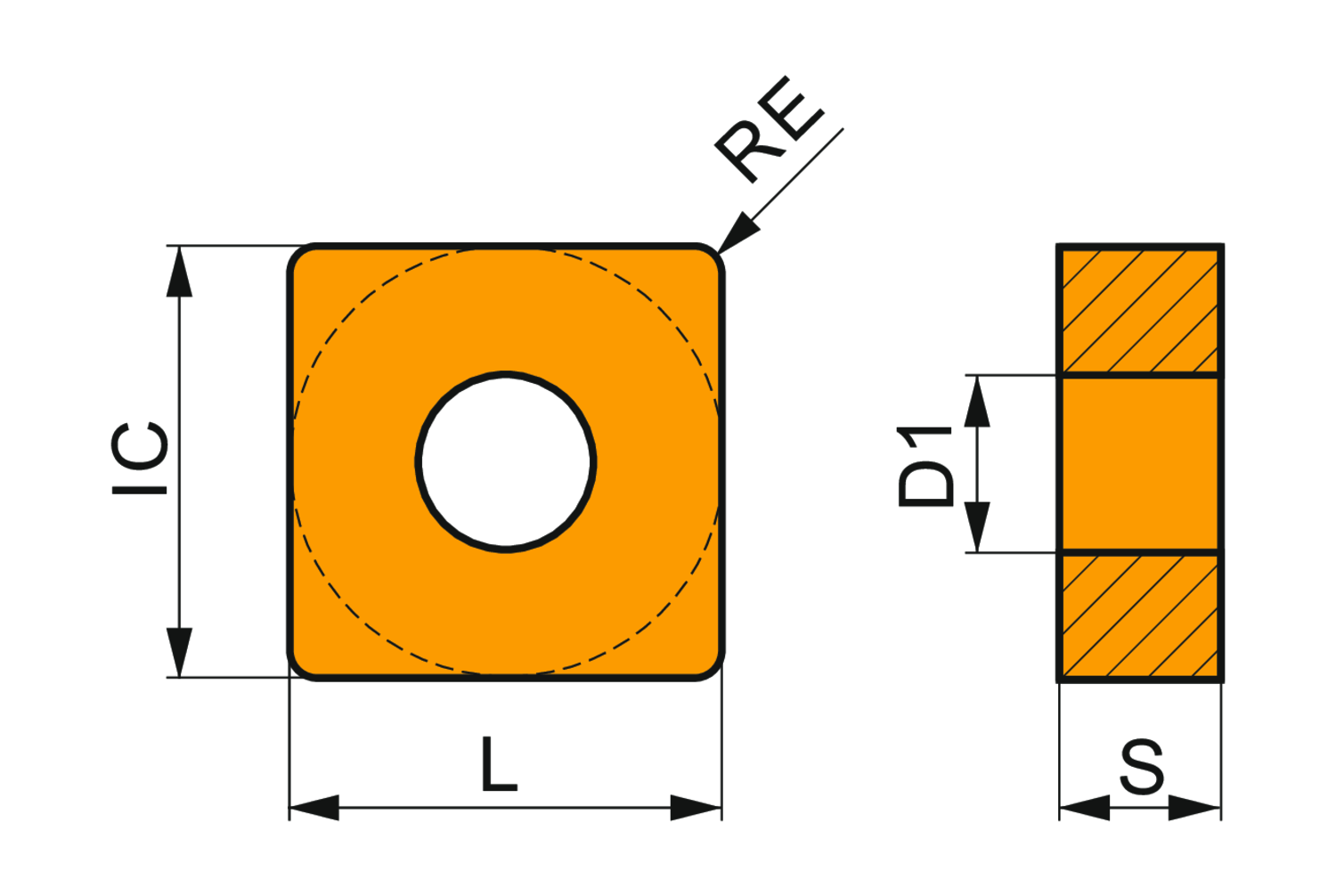

Double-sided negative turning insert, square with inscribed circle diameter of 3/4", 1/4" thick, 3/64" nose radius and indexing accuracy according to ISO-tolerance class- M, chip-breaker NR2, in grade T7335, a MT-CVD coated functionally graded WC-Co carbide within ISO range M20 - M40, for medium to extra heavy machining of stainless-steels
- Product Name ISO: SNMM 190612E-NR2:T7335
- Ordering Code ANSI: SNMM 643-NR2:T7335
- EDP Number: 6754810
- Coating: T7335
- Material Application Priority Usage: M - Stainless steel (corrosion resistant steels with = 11% chromium content)
| Quick Ship Items | No, but I will Ship Soon |
| Product Measurement Standard | Metric |
| Depth of Cut Maximum (Mm.) | 12 |
| Corner Radius (Mm.) | 1.2 |
| Fixing Hole Diameter (Mm.) | 7.94 |
| Inscribing Circle Dia. (Mm.) | 19.05 |
| Insert Thickness (Mm.) | 6.35 |
| Max Depth of Cut (In.) | 0.472 |
| Insert Geometry | Negative |
| Coating | T7335 |
