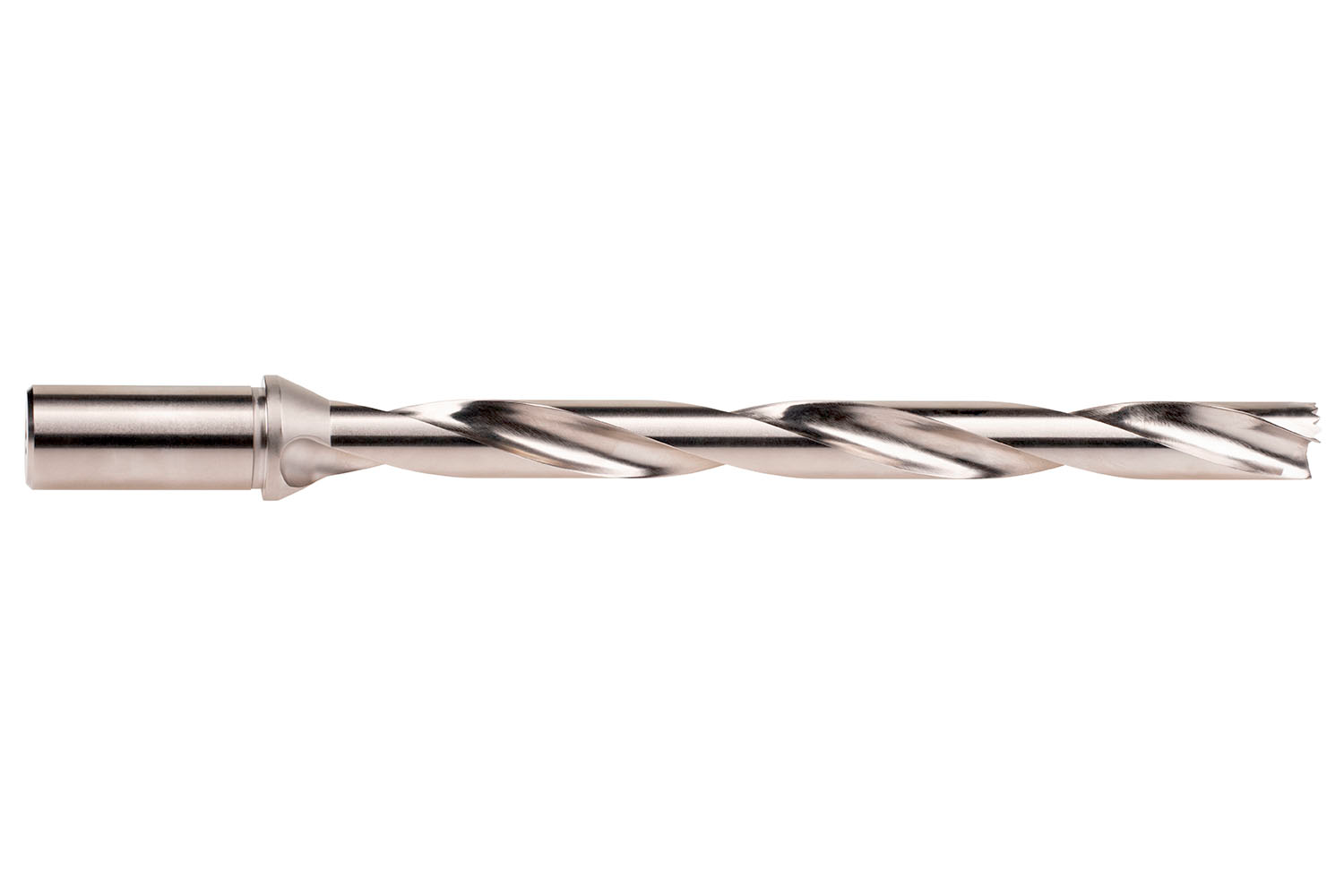

DOR Replaceable head drill body HYDRA with cylindrical shank with flange, size 23.0mm with an overall length of 354.8mm and flute length of 276mm according to DORMER standard for 12xD drilling with HYDRA P (R950), HYDRA M (R960) or HYDRA K (R970) diameter 23 up to 23.5mm
- Product Name ISO: H851223.0
- Ordering Code ANSI: H851223.0
- EDP Number: 7833373
- Coating: Nickel Plated
- Material Code (BMC): HSS

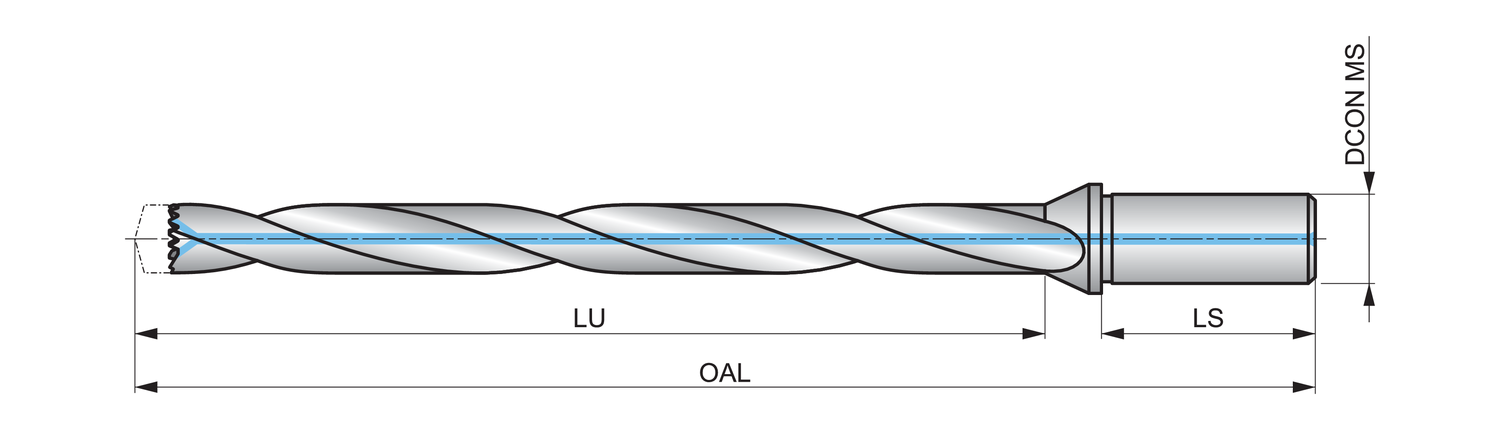

| Product Measurement Standard | Metric |
| Connection Diameter (Mm.) | 25 |
| Overall Length (Mm.) | 354.8 |
| Usable Length (Mm.) | 276 |
| Shank Length (Mm.) | 56 |
| Connection Diameter (In.) | 0.9843 |
| Overall Length (In.) | 13.9685 |
| Material Code | HSS |
| Coating | Nickel Plated |
| Shank | Hydra Shank - Cylindrical |
| Cutting Direction | Right |
| Cooling | 1 |
