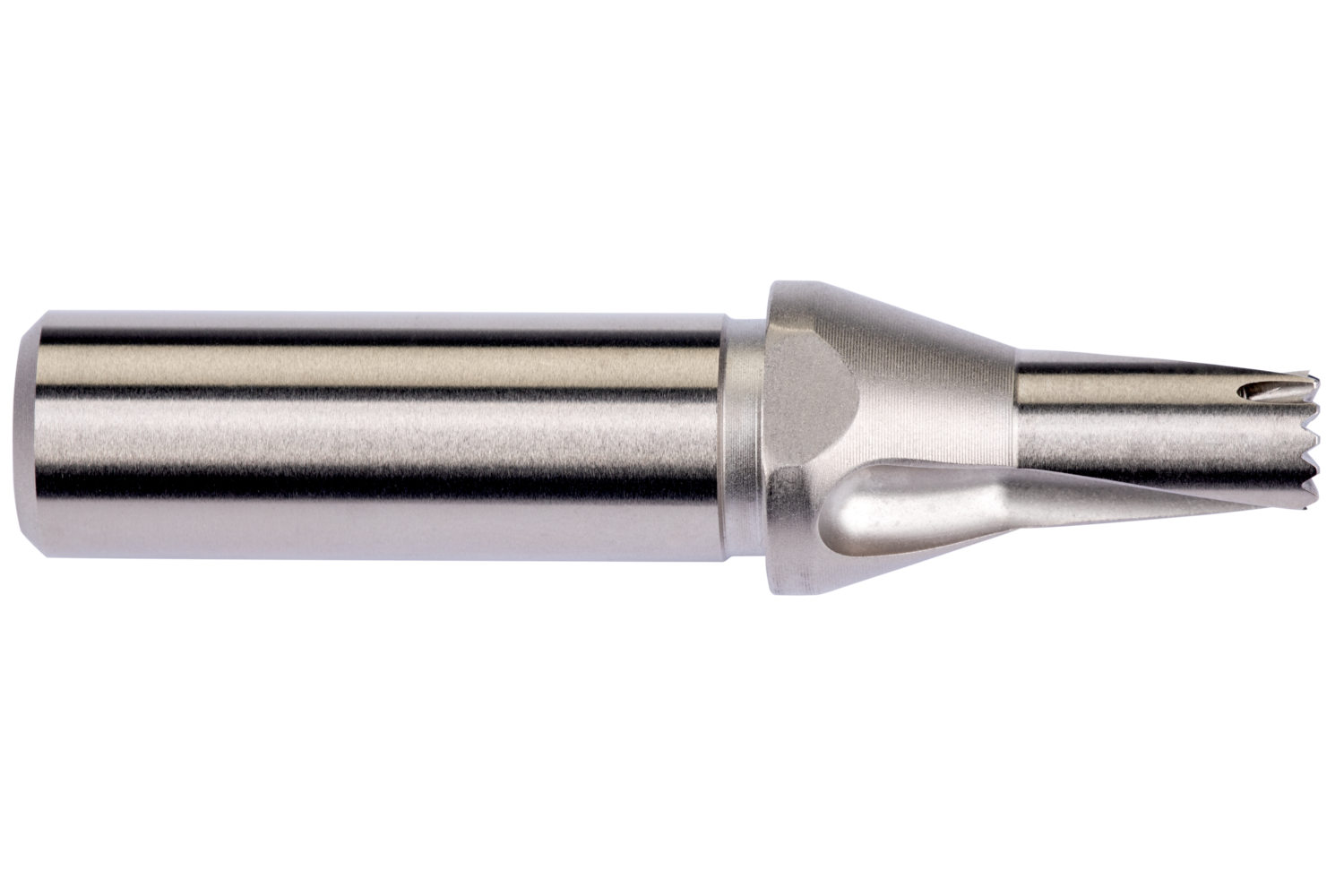

DOR Replaceable head drill body HYDRA with ISO 9766 shank with flange and flat, size 1.3/64" with an overall length of 127.3mm and flute length of 52.3mm according to DORMER standard for 1.5xD drilling with HYDRA P (R950), HYDRA M (R960) or HYDRA K (R970) diameter 1.0236 up to 1.0469" (1.3/64)
- Product Name ISO: H8511.3/64
- Ordering Code ANSI: H8511.3/64
- EDP Number: 7833352
- Coating: Nickel Plated
- Material Code (BMC): HSS

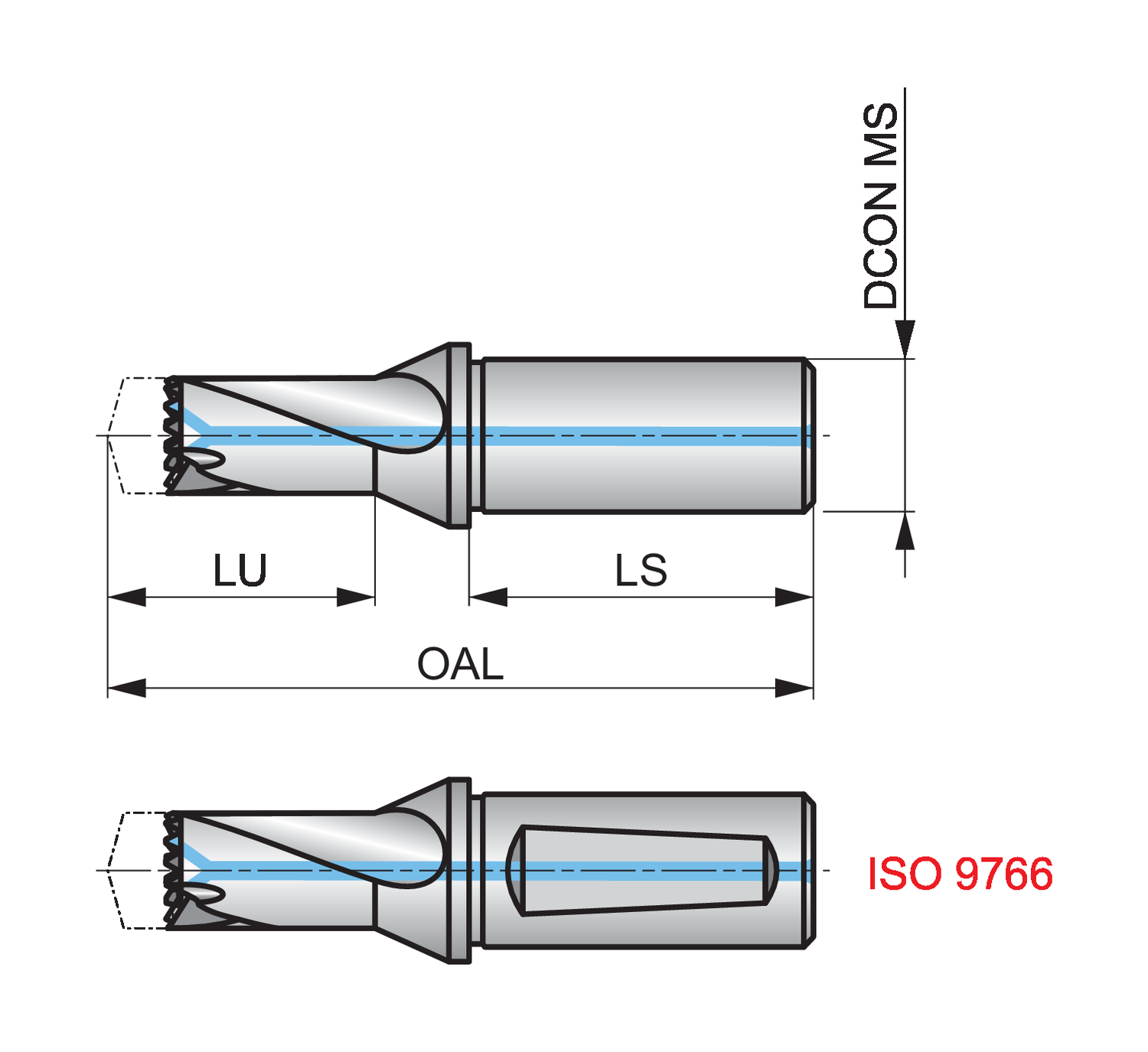

| Product Measurement Standard | Inch |
| Connection Diameter (Mm.) | 31.75 |
| Overall Length (Mm.) | 127.3 |
| Usable Length (Mm.) | 52.3 |
| Shank Length (Mm.) | 60.33 |
| Connection Diameter (In.) | 1.25 |
| Overall Length (In.) | 5.0118 |
| Material Code | HSS |
| Coating | Nickel Plated |
| Shank | Hydra Shank Cylindrical /ISO 9766 |
| Cutting Direction | Right |
| Cooling | 1 |
