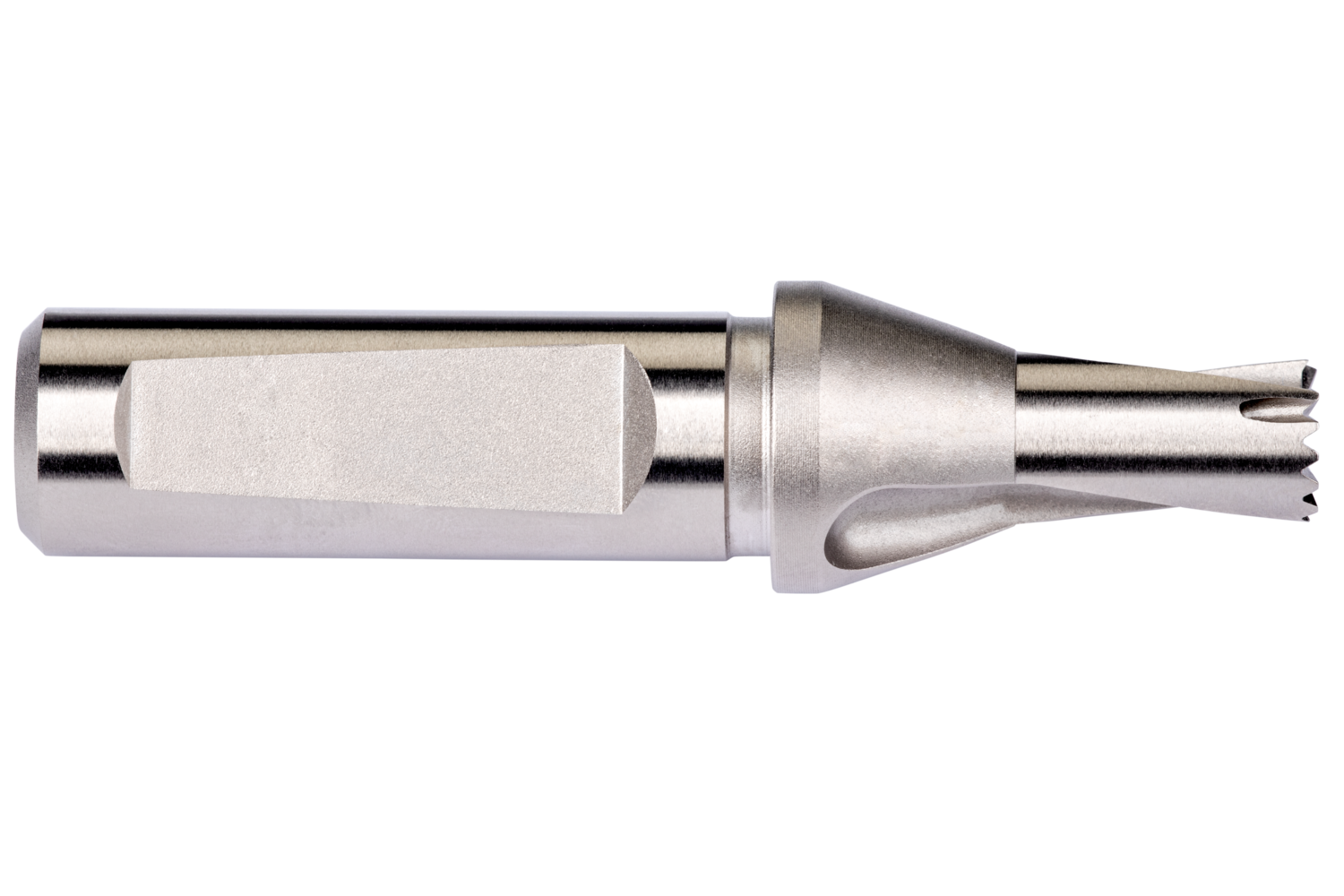

DOR Replaceable head drill body HYDRA with ISO 9766 shank with flange and flat, size 25.0mm with an overall length of 124.7mm and flute length of 49.7mm according to DORMER standard for 1.5xD drilling with HYDRA P (R950), HYDRA M (R960) or HYDRA K (R970) diameter 25 up to 25.8mm
- Product Name ISO: H85125.0
- Ordering Code ANSI: H85125.0
- EDP Number: 7833358
- Coating: Nickel Plated
- Material Code (BMC): HSS

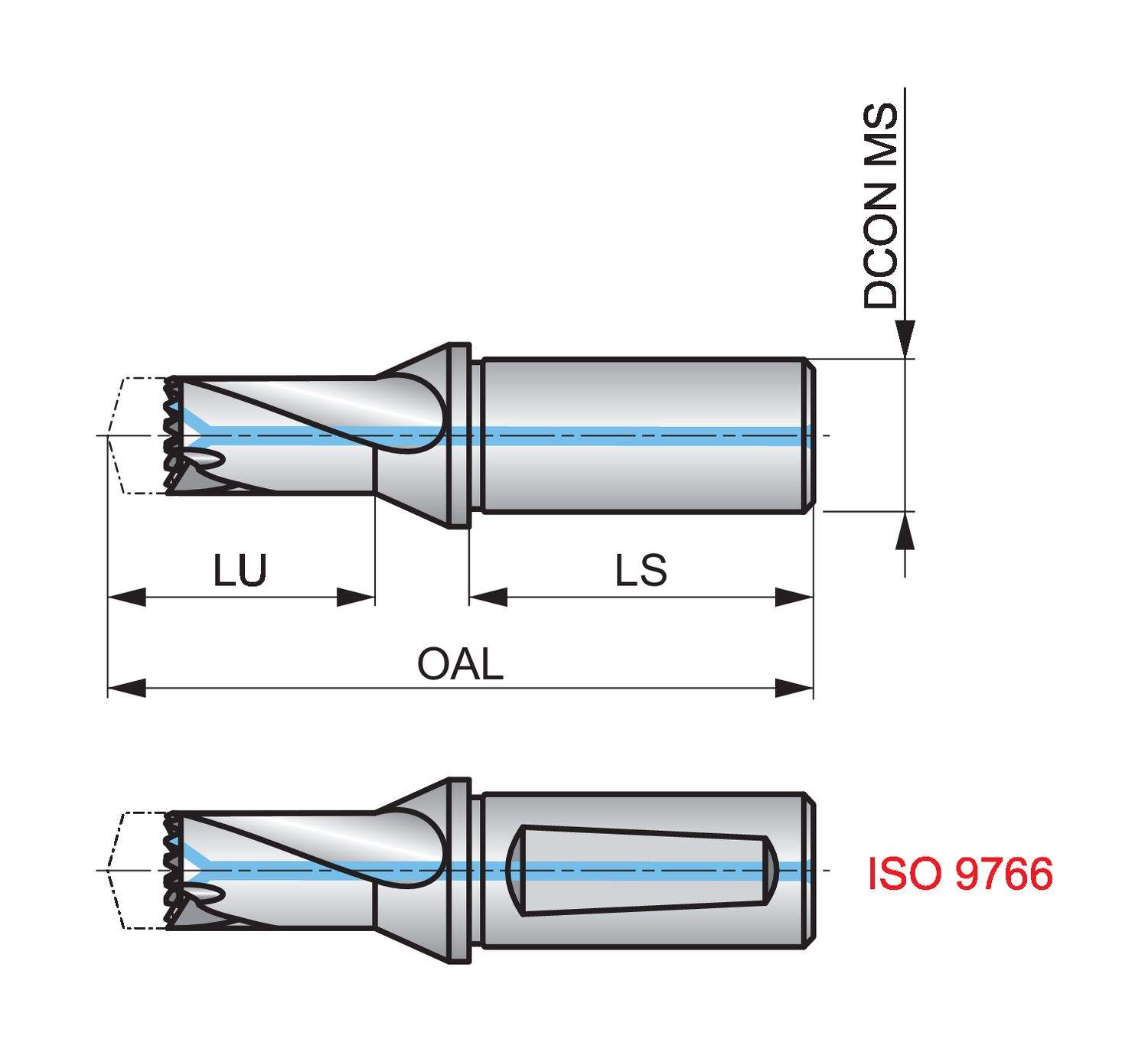

| Product Measurement Standard | Metric |
| Connection Diameter (Mm.) | 32 |
| Overall Length (Mm.) | 124.7 |
| Usable Length (Mm.) | 49.7 |
| Shank Length (Mm.) | 60 |
| Connection Diameter (In.) | 1.2598 |
| Overall Length (In.) | 4.9094 |
| Material Code | HSS |
| Coating | Nickel Plated |
| Shank | Hydra Shank Cylindrical /ISO 9766 |
| Cutting Direction | Right |
| Cooling | 1 |
