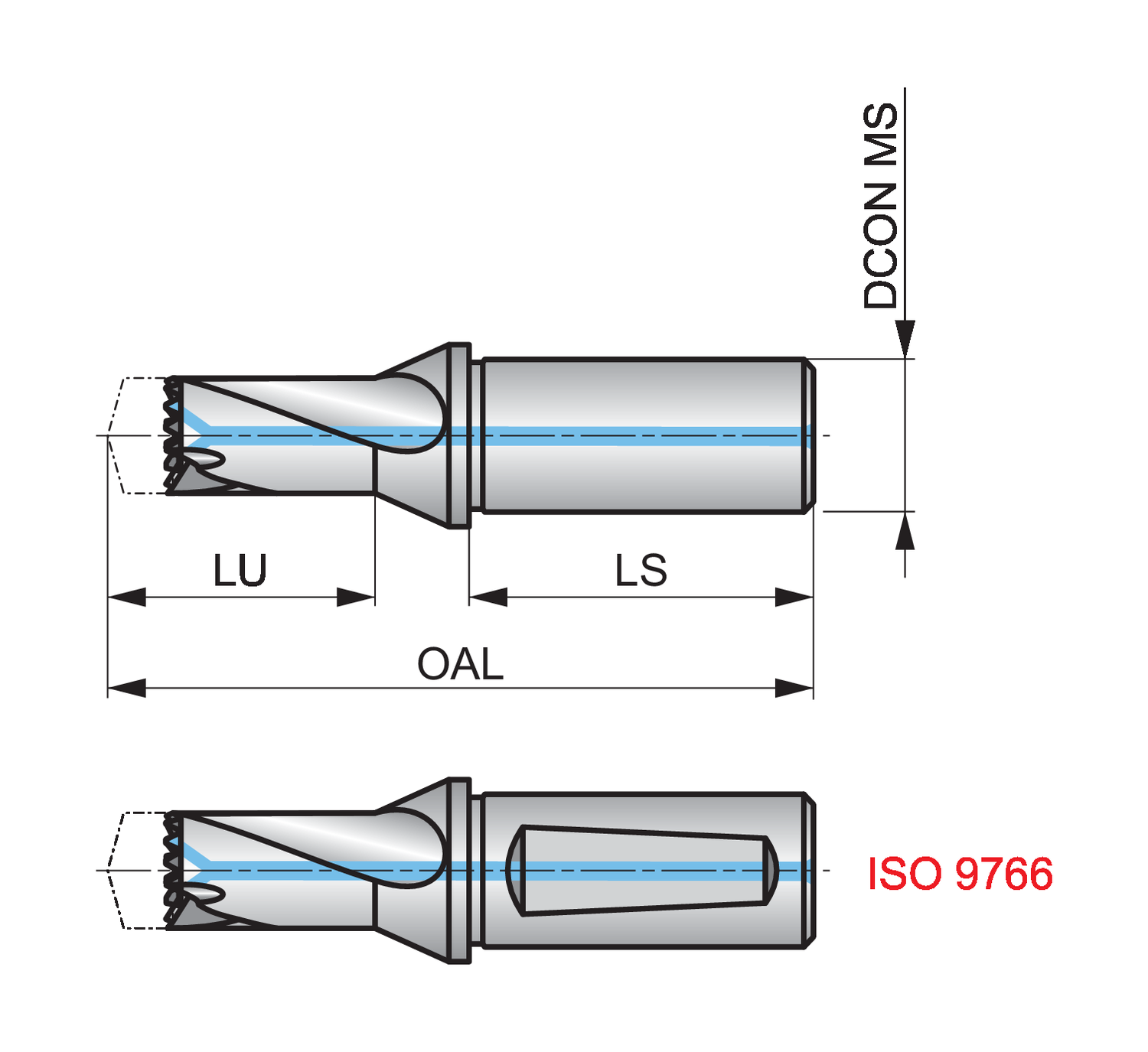

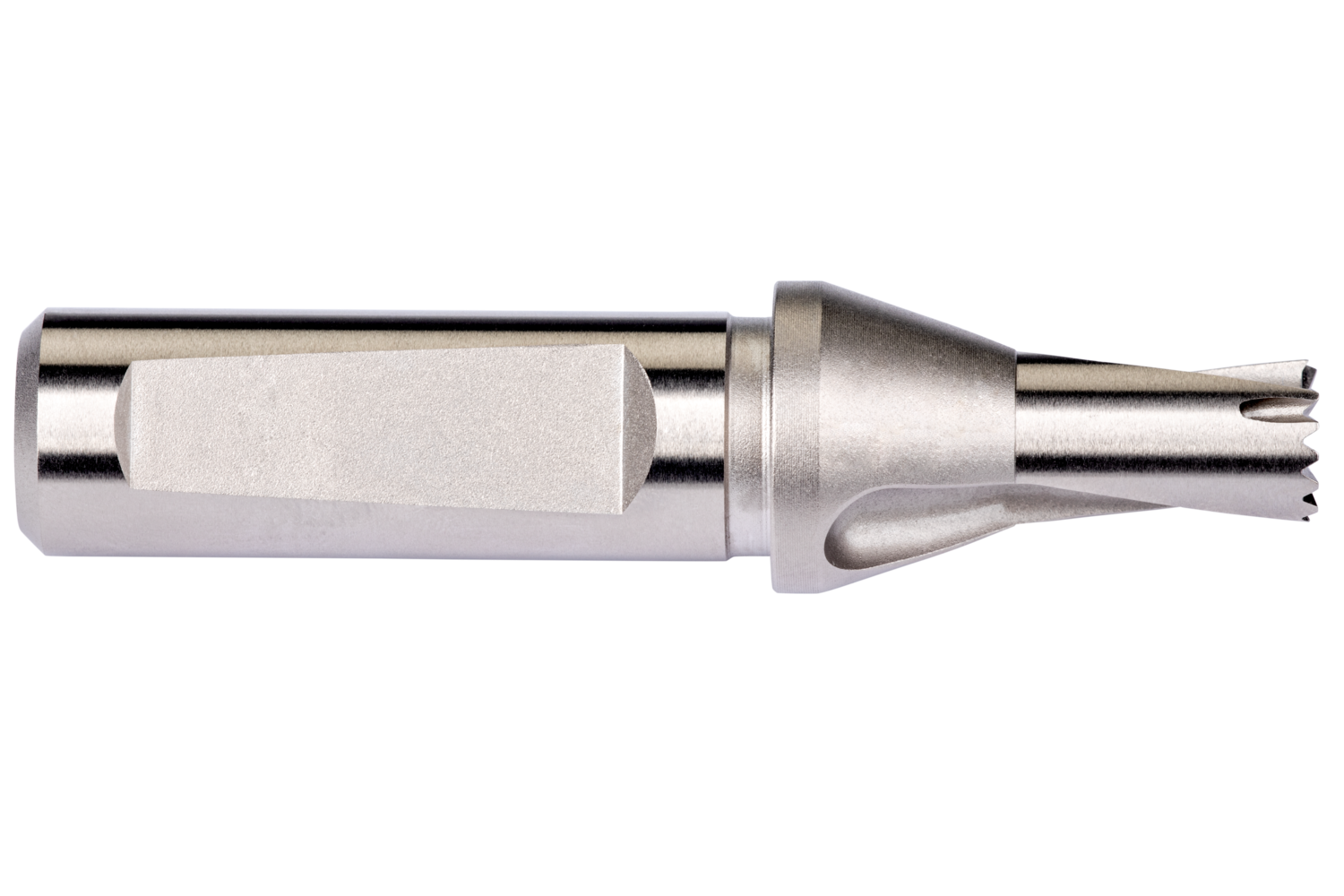

DOR Replaceable head drill body HYDRA with ISO 9766 shank with flange and flat, size 12.5mm with an overall length of 88.8mm and flute length of 25.8mm according to DORMER standard for 1.5xD drilling with HYDRA P (R950), HYDRA M (R960) or HYDRA K (R970) diameter 12.5 up to 12.9mm
- Product Name ISO: H85112.5
- Ordering Code ANSI: H85112.5
- EDP Number: 7833298
- Coating: Nickel Plated
- Material Code (BMC): HSS
| Product Measurement Standard | Metric |
| Connection Diameter (Mm.) | 16 |
| Overall Length (Mm.) | 88.8 |
| Usable Length (Mm.) | 25.8 |
| Shank Length (Mm.) | 48 |
| Connection Diameter (In.) | 0.6299 |
| Overall Length (In.) | 3.4961 |
| Material Code | HSS |
| Coating | Nickel Plated |
| Shank | Hydra Shank Cylindrical /ISO 9766 |
| Cutting Direction | Right |
| Cooling | 1 |
