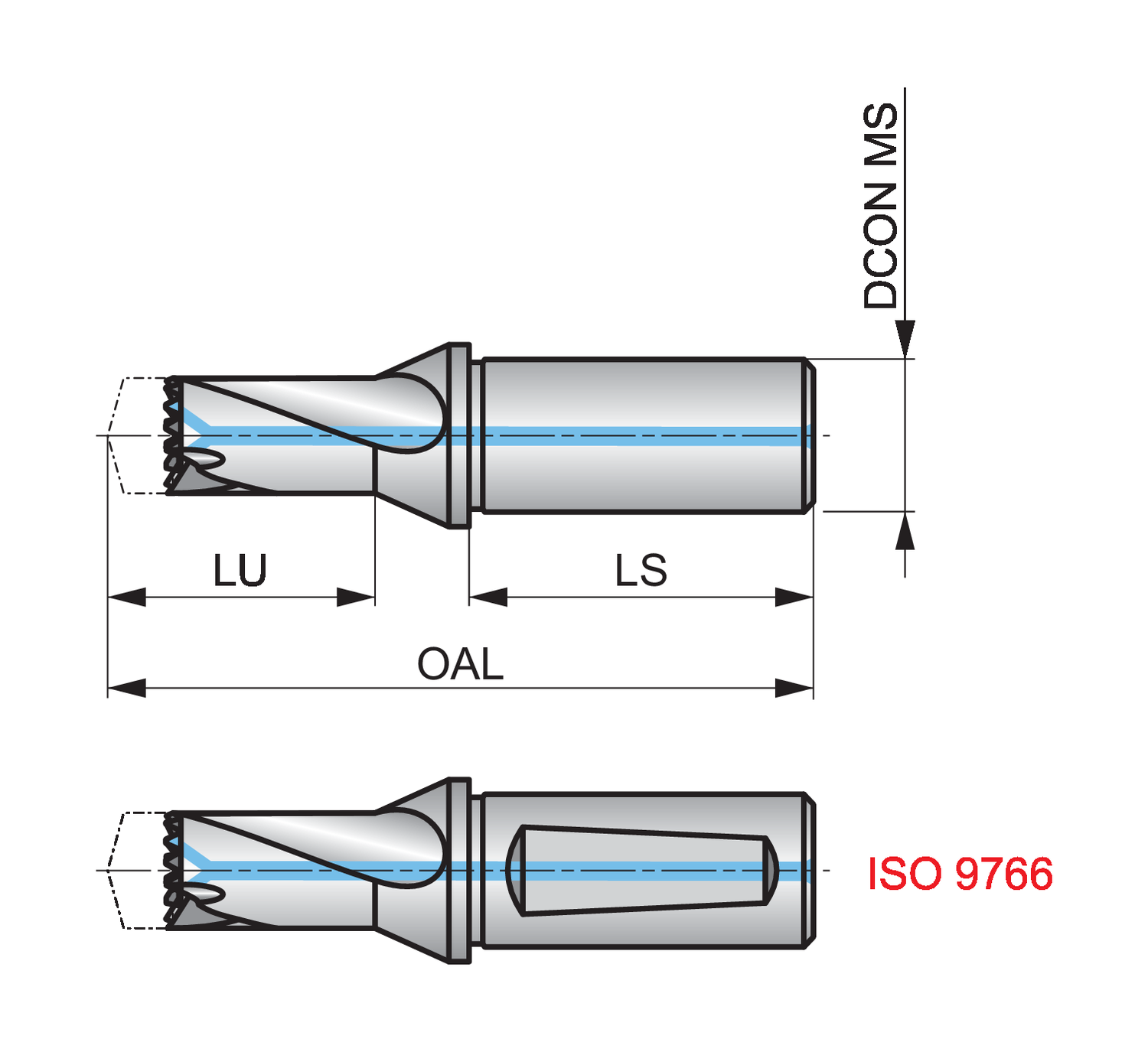

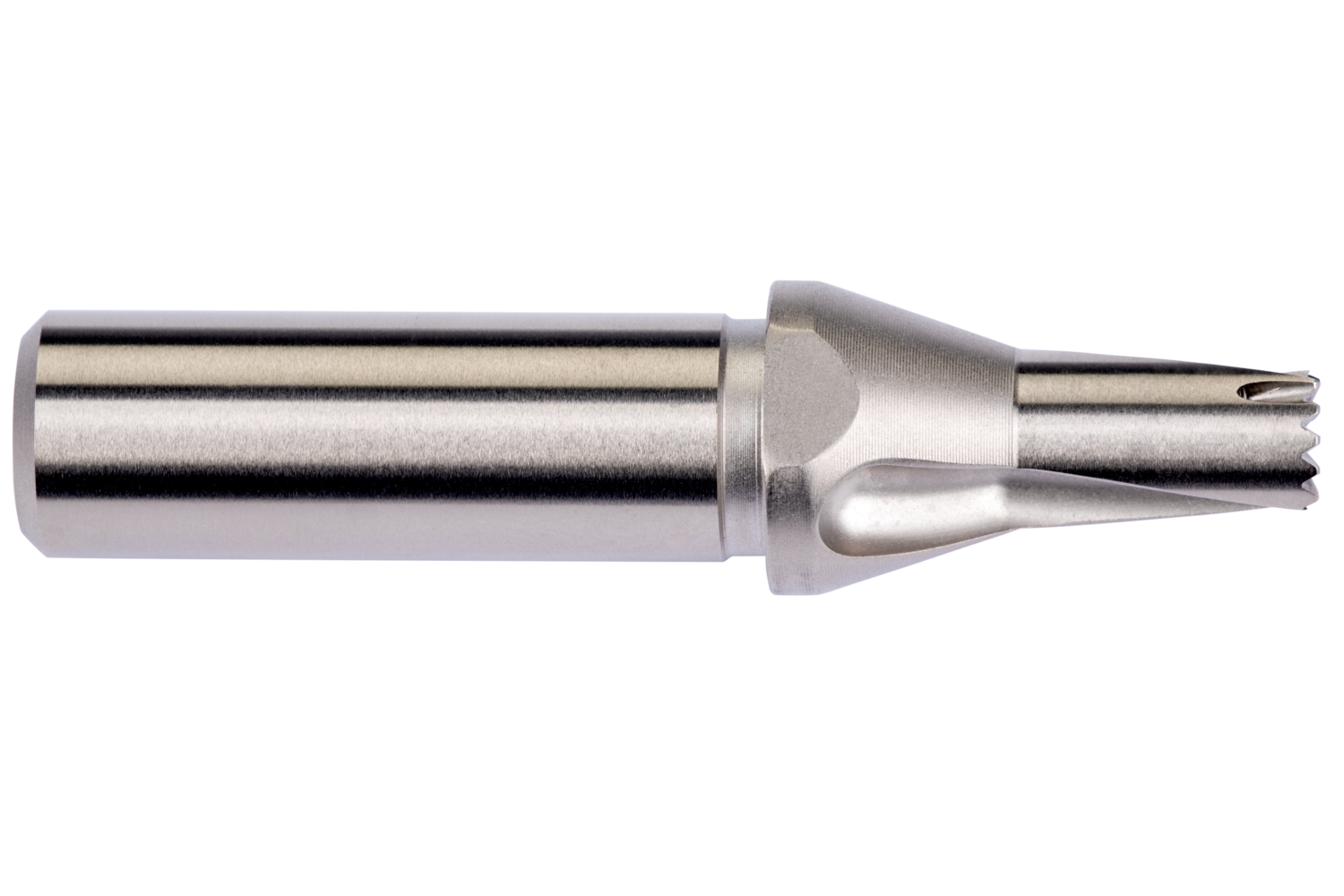

DOR Replaceable head drill body HYDRA with ISO 9766 shank with flange and flat, size 17/32" with an overall length of 93.9mm and flute length of 30.9mm according to DORMER standard for 1.5xD drilling with HYDRA P (R950), HYDRA M (R960) or HYDRA K (R970) diameter 0.5118 up to 0.5313" (7/32)
- Product Name ISO: H85117/32
- Ordering Code ANSI: H85117/32
- EDP Number: 7833296
- Coating: Nickel Plated
- Material Code (BMC): HSS
| Product Measurement Standard | Inch |
| Connection Diameter (Mm.) | 15.88 |
| Overall Length (Mm.) | 93.9 |
| Usable Length (Mm.) | 30.9 |
| Shank Length (Mm.) | 47.63 |
| Connection Diameter (In.) | 0.625 |
| Overall Length (In.) | 3.6969 |
| Material Code | HSS |
| Coating | Nickel Plated |
| Shank | Hydra Shank Cylindrical /ISO 9766 |
| Cutting Direction | Right |
| Cooling | 1 |
