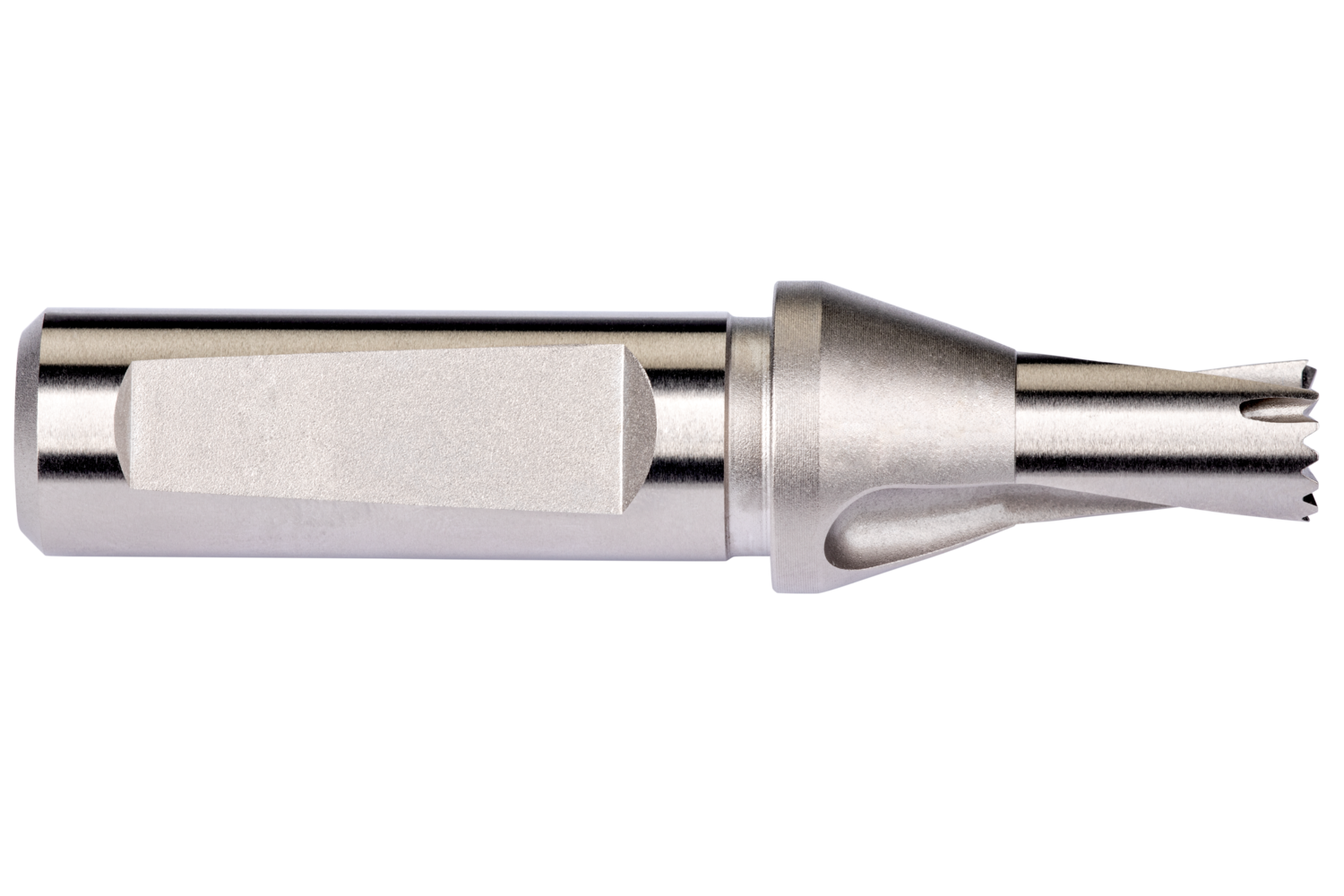

DOR Replaceable head drill body HYDRA with ISO 9766 shank with flange and flat, size 26.0mm with an overall length of 127.3mm and flute length of 52.3mm according to DORMER standard for 1.5xD drilling with HYDRA P (R950), HYDRA M (R960) or HYDRA K (R970) diameter 26 up to 26.59mm
- Product Name ISO: H85126.0
- Ordering Code ANSI: H85126.0
- EDP Number: 7833359
- Coating: Nickel Plated
- Material Code (BMC): HSS

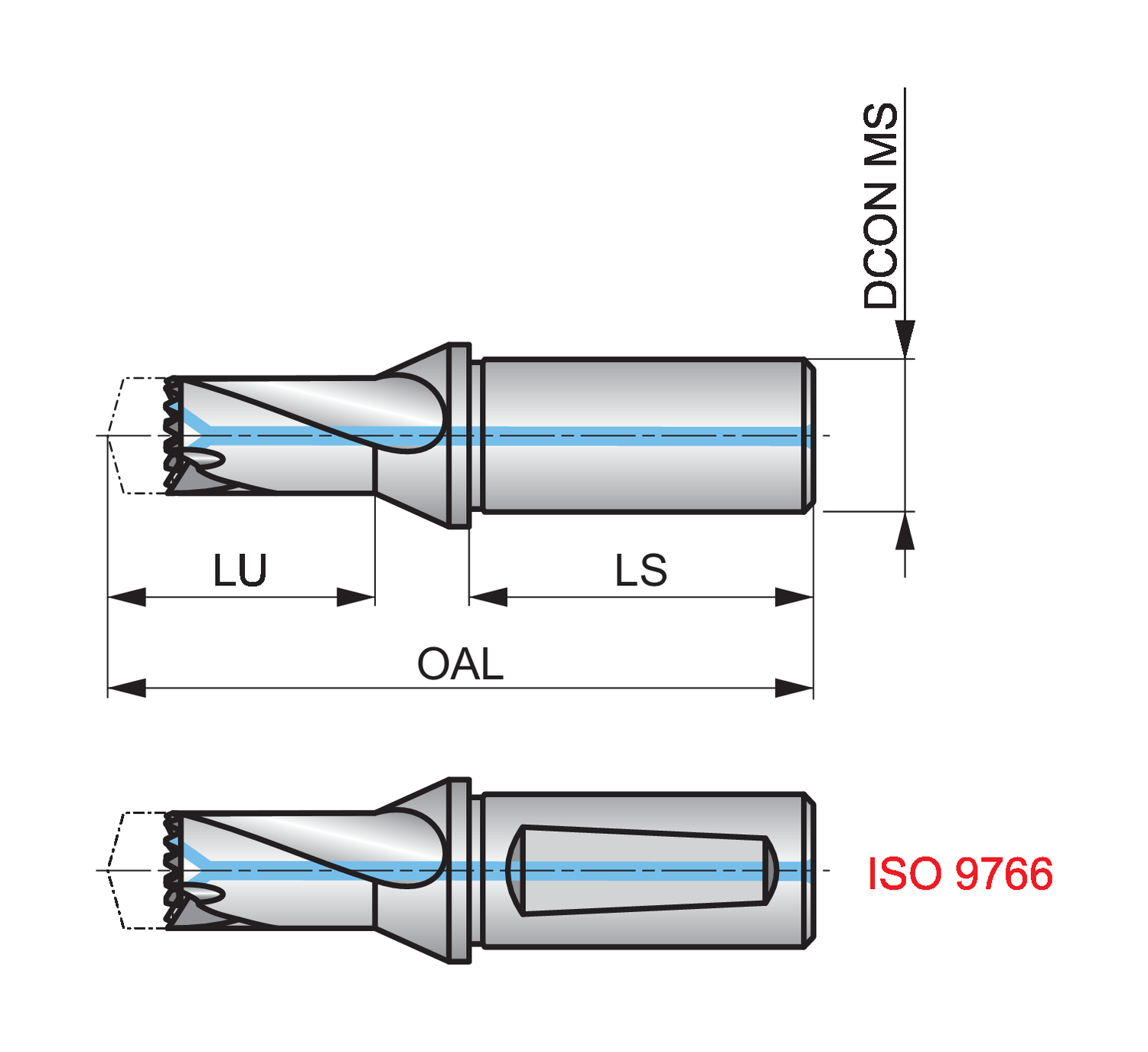

| Product Measurement Standard | Metric |
| Connection Diameter (Mm.) | 32 |
| Overall Length (Mm.) | 127.3 |
| Usable Length (Mm.) | 52.3 |
| Shank Length (Mm.) | 60 |
| Connection Diameter (In.) | 1.2598 |
| Overall Length (In.) | 5.0118 |
| Material Code | HSS |
| Coating | Nickel Plated |
| Shank | Hydra Shank Cylindrical /ISO 9766 |
| Cutting Direction | Right |
| Cooling | 1 |
