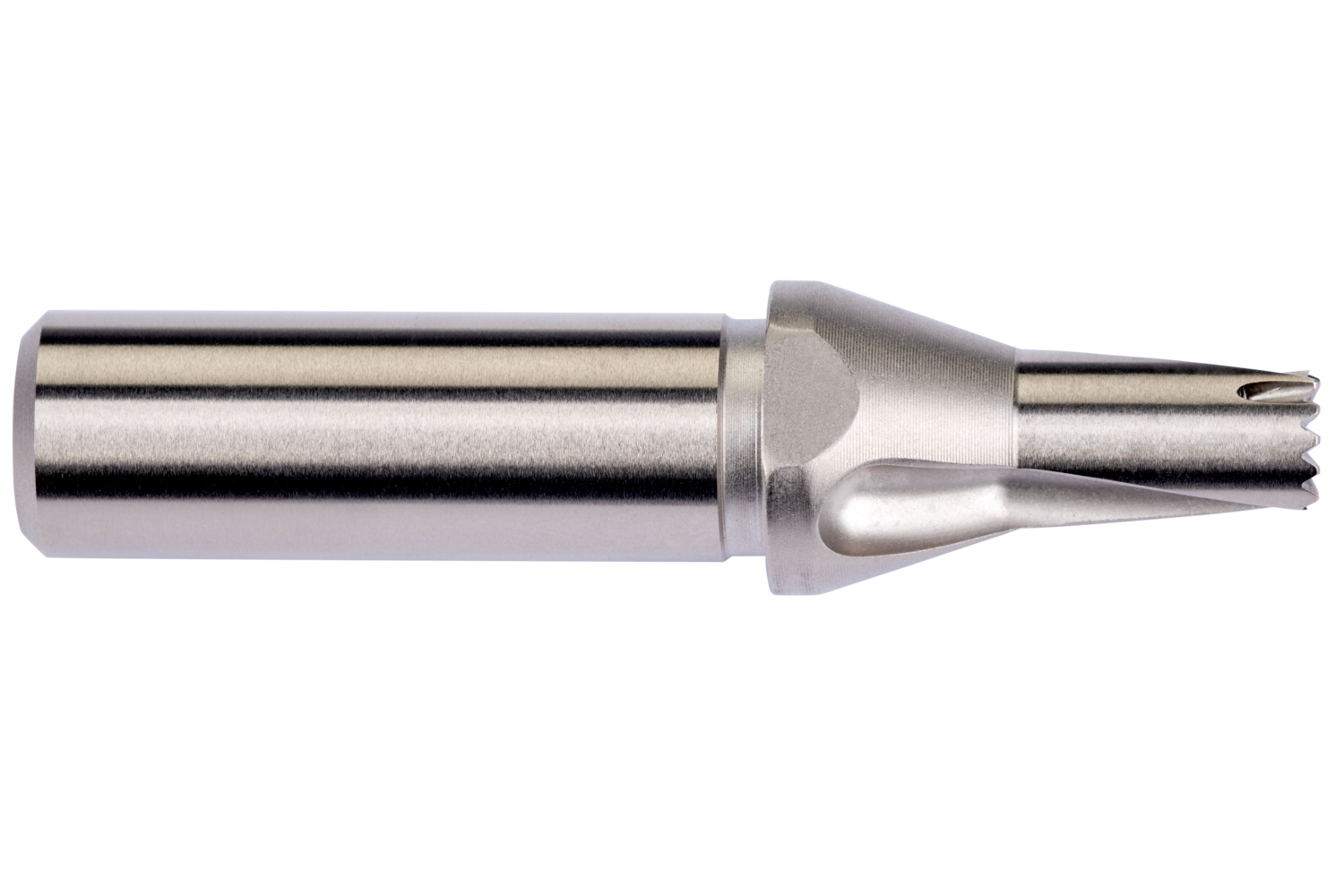

DOR Replaceable head drill body HYDRA with ISO 9766 shank with flange and flat, size 27/32" with an overall length of 115.5mm and flute length of 44.5mm according to DORMER standard for 1.5xD drilling with HYDRA P (R950), HYDRA M (R960) or HYDRA K (R970) diameter 0.8125 (13/16) up to 0.8465"
- Product Name ISO: H85127/32
- Ordering Code ANSI: H85127/32
- EDP Number: 7833347
- Coating: Nickel Plated
- Material Code (BMC): HSS
| Product Measurement Standard | Inch |
| Connection Diameter (Mm.) | 25.4 |
| Overall Length (Mm.) | 115.5 |
| Usable Length (Mm.) | 44.5 |
| Shank Length (Mm.) | 57.15 |
| Connection Diameter (In.) | 1 |
| Overall Length (In.) | 4.5472 |
| Material Code | HSS |
| Coating | Nickel Plated |
| Shank | Hydra Shank Cylindrical /ISO 9766 |
| Cutting Direction | Right |
| Cooling | 1 |
