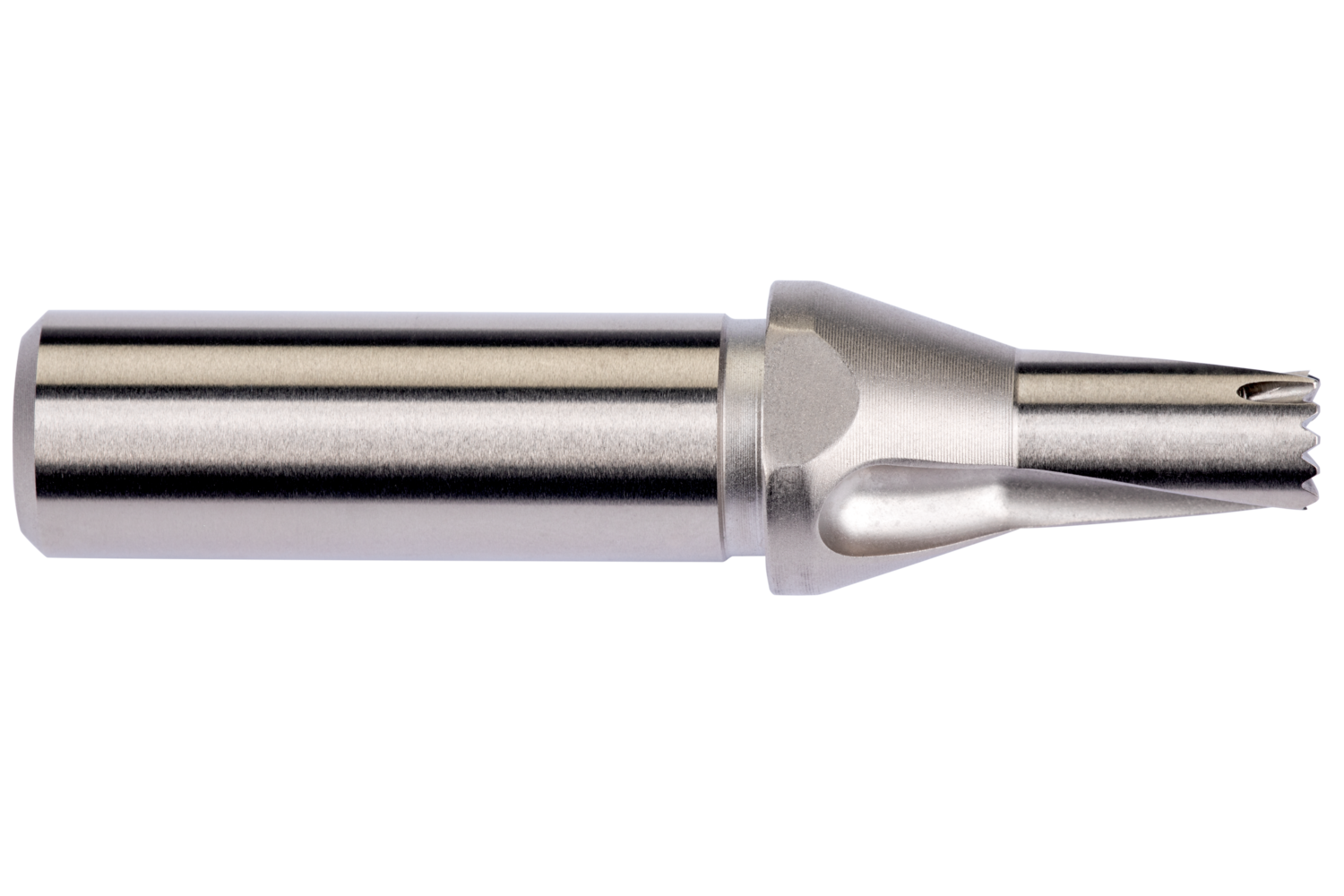

DOR Replaceable head drill body HYDRA with ISO 9766 shank with flange and flat, size 31/64" with an overall length of 88.5mm and flute length of 25.5mm according to DORMER standard for 1.5xD drilling with HYDRA P (R950), HYDRA M (R960) or HYDRA K (R970) diameter 0.4688 (15/32) up to 0.4844" (31/64)
- Product Name ISO: H85131/64
- Ordering Code ANSI: H85131/64
- EDP Number: 7833294
- Coating: Nickel Plated
- Material Code (BMC): HSS

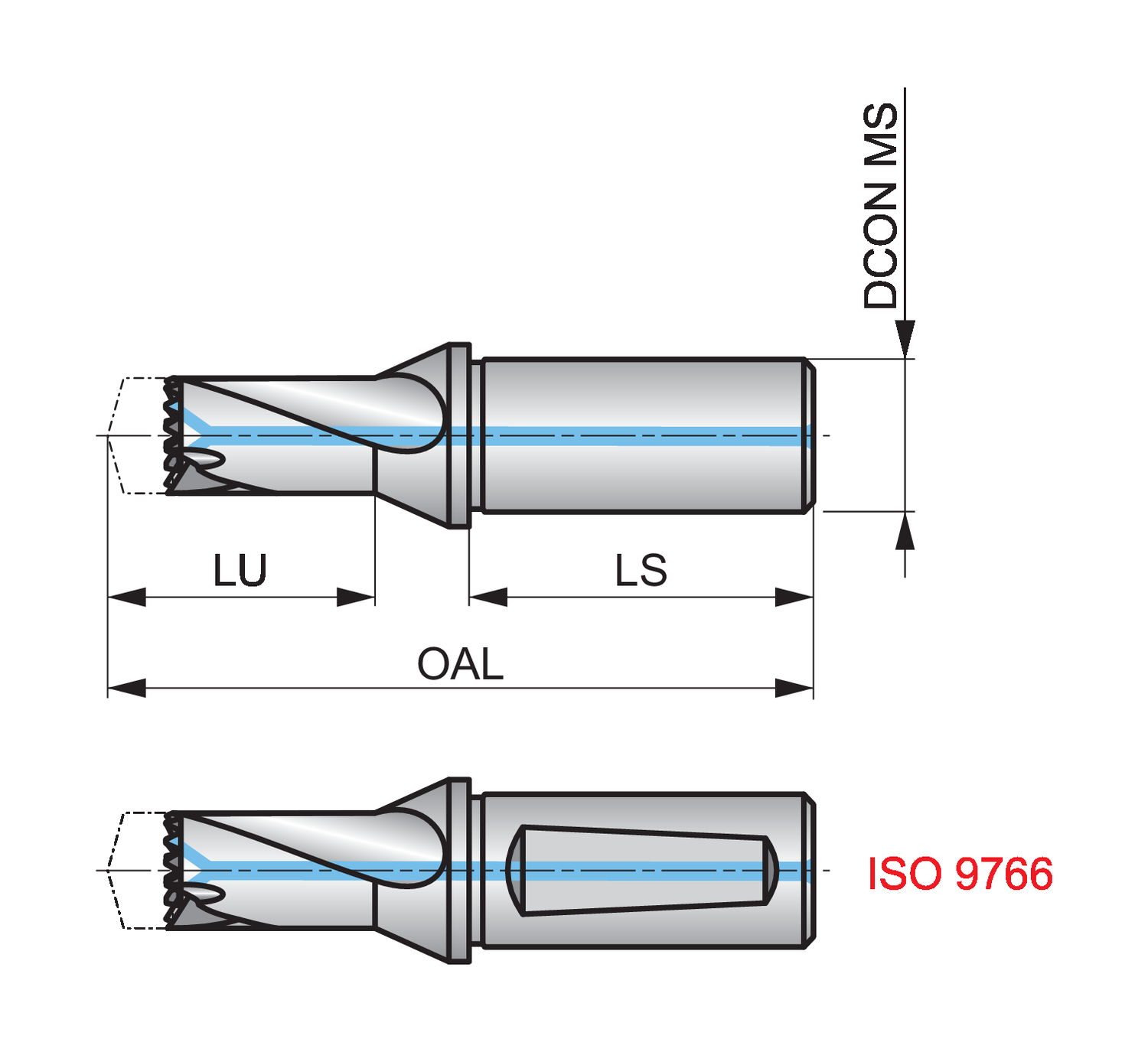

| Product Measurement Standard | Inch |
| Connection Diameter (Mm.) | 15.88 |
| Overall Length (Mm.) | 88.5 |
| Usable Length (Mm.) | 25.5 |
| Shank Length (Mm.) | 47.63 |
| Connection Diameter (In.) | 0.625 |
| Overall Length (In.) | 3.4843 |
| Material Code | HSS |
| Coating | Nickel Plated |
| Shank | Hydra Shank Cylindrical /ISO 9766 |
| Cutting Direction | Right |
| Cooling | 1 |
